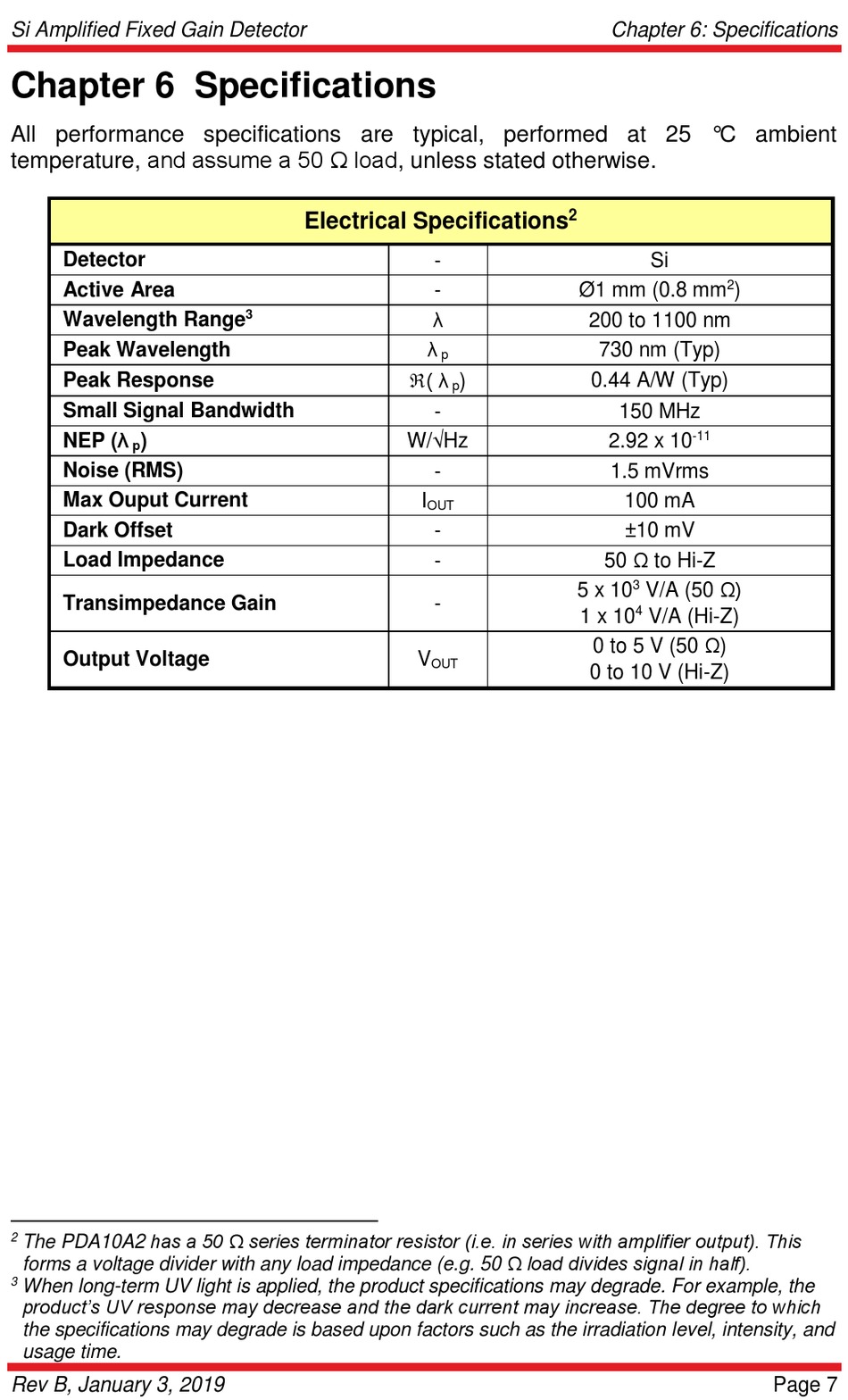

Chapter 6 Specifications - THORLABS PDA10A2 User Manual

Si Amplified Fixed Gain Detector

Chapter 6 Specifications

All performance specifications are typical, performed at 25 °C ambient
temperature, and assume a 50 Ω load, unless stated otherwise.
Detector
Active Area
Wavelength Range
Peak Wavelength
Peak Response
Small Signal Bandwidth
NEP (λ )
p
Noise (RMS)
Max Ouput Current
Dark Offset
Load Impedance
Transimpedance Gain
Output Voltage
The PDA10A2 has a 50 Ω series terminator resistor (i.e. in series with amplifier output). This
2
forms a voltage divider with any load impedance (e.g. 50 Ω load divides signal in half).
3
When long-term UV light is applied, the product specifications may degrade. For example, the
product's UV response may decrease and the dark current may increase. The degree to which
the specifications may degrade is based upon factors such as the irradiation level, intensity, and
usage time.
Rev B, January 3, 2019
Electrical Specifications
3
-
-
λ
λ
p
( λ
)
p
-
W/√Hz
-
I
OUT
-
-
-
V
OUT
Chapter 6: Specifications
2
Si
2
Ø1 mm (0.8 mm
200 to 1100 nm
730 nm (Typ)
0.44 A/W (Typ)
150 MHz
-11
2.92 x 10
1.5 mVrms
100 mA
±10 mV
50 Ω to Hi-Z
V/A (50 Ω)
3
5 x 10
4
1 x 10 V/A (Hi-Z)
0 to 5 V (50 Ω)
0 to 10 V (Hi-Z)
)
Page 7
