StarTech.com DK31C3HDPDUE Quick Start Manual

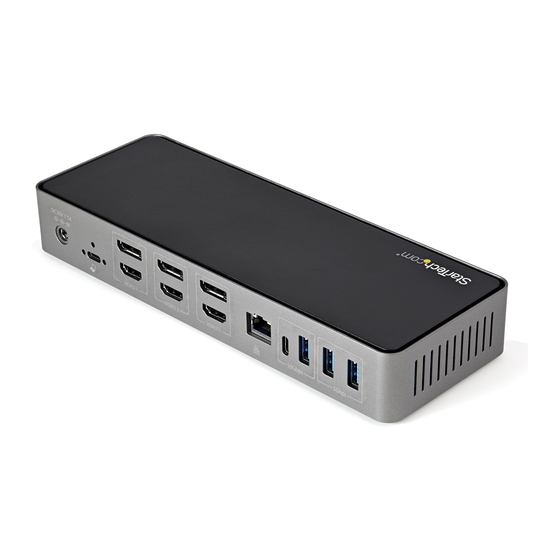

USB-C™ 10Gbps & USB-A Triple 4K Monitor Hybrid Dock - DP and/or HDMI - 85W PD

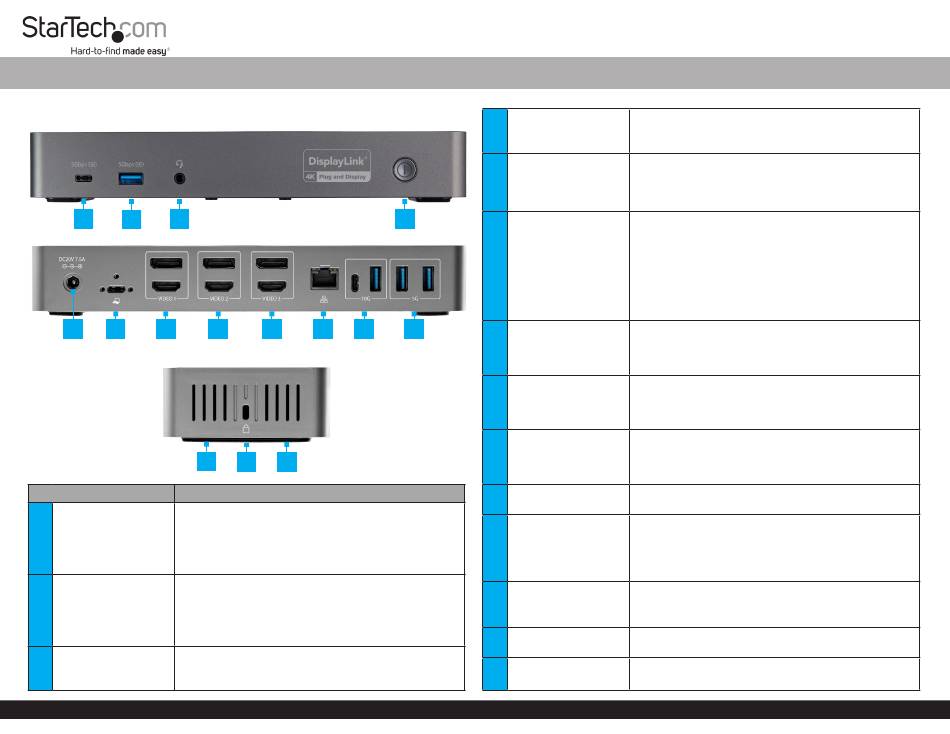

Product Diagram (DK31C3HDPD and DK31C3HDPDUE)
Front View
3
1 2
Rear View
5 6 7
Side View
13
Port
• Connect a USB-C Peripheral or charge a Mobile
Device
• USB 3.1 Gen 1
1 USB-C Charge Port
• Transmits power and/or data
• Supports BC1.2 9V/2A (18W) charging
• Connect a USB-A Peripheral or charge a Mobile
Device
2 • USB 3.1 Gen 1
USB-A Charge Port
• Transmits power and/or data
• Supports BC1.2 5V/1.5A (7.5W) charging
• Connect a Headset or Speakers for audio
Audio Input/Output
3 input/output
Port
• 3.5 mm 4-position headset audio jack
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
11
8 9 10
14 13
Function
4
Power Button
5
DC Power Input Port
4
6
USB-C Host Port
12
Video 1 DisplayPort
Port
7
--Or--
Video 1 HDMI Port
Video 2 DisplayPort
Port
8
--Or--
Video 2 HDMI Port
Video 3 DisplayPort
Port
9
--Or--
Video 3 HDMI Port
10 RJ45 Port
10G USB-C Peripheral
Port
11
--And--
10G USB-A Peripheral
Port
5G USB-A Peripheral
12
Ports
13 Mounting Holes
14
Lock Slot
Quick-Start Guide
• Power the Docking Station on and off
• Integrated LED Indicator is illuminated white when
the Docking Station is powered on
• Connect the Universal Power Adapter to supply
power to the Docking Station
• Type-M barrel connector
• 20V 7.5A
• Connect to a USB-A or USB-C Port on a Host Laptop
using the USB-C Cable (with Attached USB-C to
USB-A Adapter)
• USB 3.1 Gen 2
• Power Delivery 3.0 Specification
• Charge Host USB-C Laptop with up to 85W
• (Optional) Connect a Screw Locking USB-C Cable
(sold separately)
• Connect a DisplayPort Enabled Display Device
--Or--
• Connect an HDMI Enabled Display Device
• Connect a DisplayPort Enabled Display Device
--Or--
• Connect an HDMI Enabled Display Device
• Connect a DisplayPort Enabled Display Device
--Or--
• Connect an HDMI Enabled Display Device
• Connect a CAT5e/6 Cable to a Network Device to
establish a network connection
• Connect a USB-C and/or USB-A Peripheral
• USB 3.1 Gen 2
• Bandwidth is shared between the two Ports
• Connect up to two USB-A Peripherals
• USB 3.1 Gen 1
• Bandwidth is shared between the two Ports
• Mount the Docking Station to the underside of a
Desk or to a Wall
• Connect a K-Slot Style Locking Device
• Deter the theft of your Docking Station
Manual Revision: August 10, 2021
