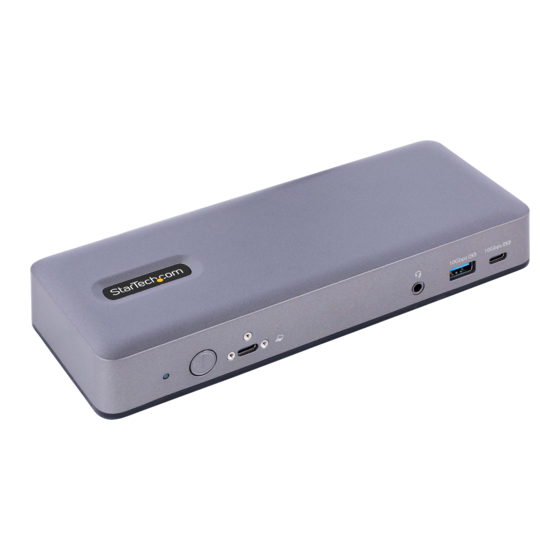

StarTech.com DK31C3MNCR Quick Start Manual

USB-C 10Gbps Triple and Dual Monitor Docking Station - HDMI/DP/USB-C - 60W PD - Chromebook Certified
Product ID
DK31C3MNCR / DK31C3MNCRUE

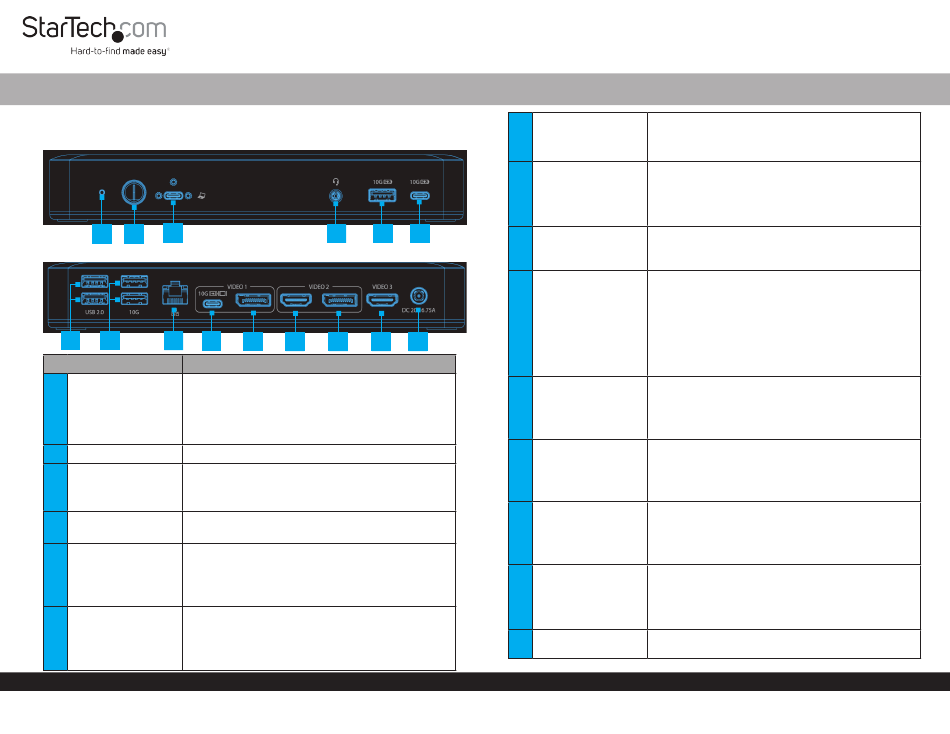

Product Diagram (Side A)
1
3
2
(Side B)
7 8
9 10
Component
• Solid Green LED indicates the Dock is powered ON in 4-Lane
Mode (USB ports operate at USB 2.0 480 Mbps speed)
1
Power LED
• Solid Orange LED indicates the Dock is powered ON in 2-Lane
Mode
• Hold Power Button for 4 seconds to switch between modes
2 Power Button
• Hold Power Button for 1 second to power the Dock ON and Off
• Connect to a USB-C Port on a Host Computer
Screw-Locking
3
• USB 3.2 Gen 2 (10 Gbps)
USB-C Host Port
• Power Delivery 3.0
• Connect an Audio Device
4 3.5mm Audio Port
• 4 Position Audio Jack for Headset use
• Connect and/or charge a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps) *USB 2.0 (480 Mbps) in 4-Lane Mode
USB-A Data/Charge
5
Port
• Supports BC 1.2 5 V/1.5 A (7.5 W) charging
• Requires Host Connection for Charging
• Connect and/or charge a USB-C Peripheral
USB-C Data/Charge • USB 3.2 Gen 2 (10 Gbps) *USB 2.0 (480 Mbps) in 4-Lane Mode
6
Port
• Supports 5 V/1.5 A (7.5 W) charging
• Requires Host Connection for Charging
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4 5 6
11
12 13 14 15
Function
Specification
• Connect USB-A Peripherals
7
2x USB-A Data Ports • USB 2.0 (480Mbps)
• Supports up to 5 V/0.5 A (2.5 W) charging
• Connect USB-A Peripherals
8 2x USB-A Data Ports
• USB 3.2 Gen 2 (10 Gbps) *USB 2.0 (480 Mbps) in 4-Lane Mode
• Supports up to 5 V/0.9 A (4.5 W) charging
• Connect the Docking Station to a Network Device, using a
Gigabit Ethernet
9
Network Cable
Port
• 10/100/1000 Mbps
• Connect and/or charge a USB-C peripheral
USB-C Data/
• Connect a USB-C Display directly, or for any other Display, a
Charge/DP Alt
USB-C Video Adapter is required
10
Mode Video Port
• USB 3.2 Gen 2 (10Gbps) *USB 2.0 (480 Mbps) in 4-Lane Mode
(Video Output 1)
• Supports 5 V/1.5 A (7.5 W) charging
• Display output via DisplayPort 1.4 DP Alt Mode
• Connect a DisplayPort Display as Video Output #1
DisplayPort Video
• DisplayPort 1.4
Port
11
• Up to 4K (4096x2160) 60Hz
(Video Output 1)
• Via DisplayPort 1.4 DP Alt Mode
• Connect an HDMI Display as Video Output #2
HDMI Video Port
• HDMI 2.0b HDR10
12
• Up to 4K (4096x2160) 60Hz
(Video Output 2)
• Via DisplayPort 1.4 DP Alt Mode
• Connect a DisplayPort Display as Video Output #2
DisplayPort Video
• DisplayPort 1.4
Port
13
• Up to 4K (4096x2160) 60Hz
(Video Output 2)
• Via DisplayPort 1.4 DP Alt Mode
• Connect an HDMI Display as Video Output #3
HDMI Video Port
• HDMI 2.0b HDR10
14
(Video Output 3) • Up to 4K (4096x2160) 60Hz
• Via DisplayPort 1.4 DP Alt Mode
• Connect the Dock to a Power Source, using the Universal
15
DC 20V Port
Power Adapter
Quick-Start Guide
Manual Revision: April 5, 2022 1:28 PM
