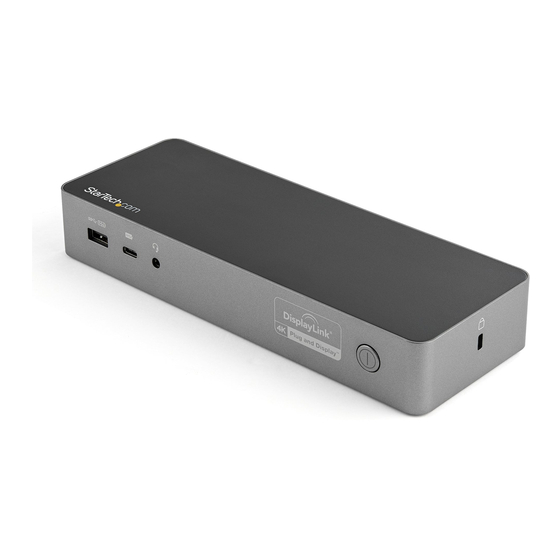

- Page 1 Dual-4K Universal Docking Station - USB-C / USB 3.0 - DisplayPort & HDMI - 100W PD 3.0 Actual product may vary from photos User Manual SKU#: DK30C2DPEP, DK30C2DPEPUE For the latest information and specifications visit www.startech.com/DK30C2DPEP Manual Revision: 01/31/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 Mensagens de Aviso • Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar em ferimentos pessoais ou danos de propriedade. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 5 • Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit niet goed gebeurt kan lichamelijk letsel of materiële schade ontstaan. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 取り扱いを誤 った場合に、 傷害を負う恐れや物的損害が発生する恐れがあります。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 6: Table Of Contents
Side Port ............................... 6 Powering the Docking Station ......................6 (Optional) Mounting ..........................6 Operation ......................7 Power Button .............................. 7 Configure Displays ............................ 7 Supported Video Resolutions ....................... 8 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram
DC Power Input Port USB-C Host Port Video 1 DisplayPort™ Port Video 1 HDMI® Port Video 2 DisplayPort Port Video 2 HDMI Port Ethernet Port USB-A Peripheral Ports To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Information
Side View Lock Slot Bottom View Mounting Holes Product Information Package Contents Docking Station x 1 • USB-C Cable (with Attached USB-C to USB-A Adapter) x 1 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Requirements
DisplayPort Equipped Displays, two HDMI Equipped Displays, or one DisplayPort and one HDMI Equipped Display. Ethernet: CAT 5e/CAT 6 Cable x 1 • Network Device (e.g. Router, Switch, Modem, etc.) x 1 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Installation
Docking Station. Connect a USB Cable to your USB-C Enabled Mobile Device. Connect the other end of the USB-C Cable to the USB-C Port Docking Station. on the To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Rear Ports
Connect a USB Cable to your USB-A Peripheral. Connect the other end of the USB Cable to the USB-A Peripheral Port on the Docking Station. (Optional) Repeat step 5 to add a second USB-A Peripheral. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Side Port
To install a Mounting Bracket (not included), fasten your Bracket to the Docking Station using four M3 0.5 Pitch Screws. The Screw length must be the thickness of the Bracket plus 2-4 mm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Operation
To power the Docking Station On or Off: press and release the Power Button. Configure Displays Use your Windows operating system to adjust Display Settings. Your Host Laptop must support Dual External Displays through its USB-C Host Port. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Supported Video Resolutions
Full HD (1920x1080, 60Hz 1920x1200) (2560x1440, 60Hz 2560x1600) 60Hz (3840x2160) 60Hz (4096x2160) 60Hz Yes* (5120x2880) *Single 5K extended Display requires two DisplayPort Connections (for 5K dual input supported Displays). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 15 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
