StarTech.com DK30CHHPD Quick Start Manual

USB-C Dual Video 1080p Monitor, USB 3.1 Gen 1 Dock

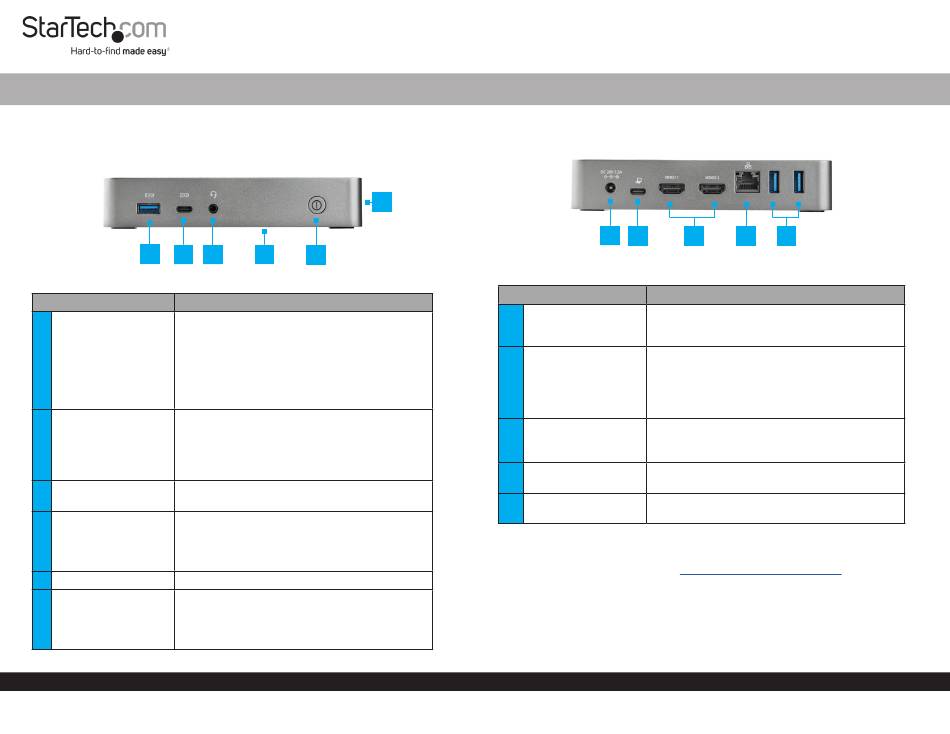

Product Diagram (DK30CHHPD/DK30CHHPDUK/
DK30CHHPDEU/DK30CHHPDAU)

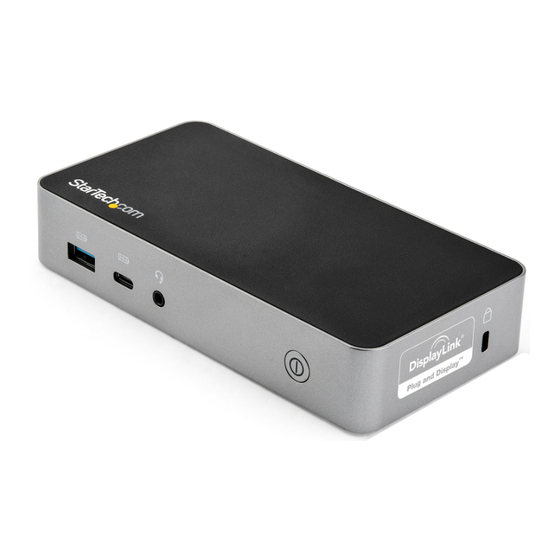

Front
2
1
Component
• Used to charge a connected USB Device.
• Used to connect USB Devices to the Docking
Station (flash drive, etc.).
1 USB-A Port • BC 1.2 Compliant.
• 7.5W of power output.
• Charges with or without a connection to the
Host Computer.
• Used to charge a connected USB Device.
• B.C. 1.2 compliant.
2
USB-C Port • 7.5 W of power output.
• Charges with or without a connection to the
Host Computer.
• Used to connect an Audio Device to the
3
3.5 mm Audio Port
Docking Station (headset, microphone, etc.).
• Used to mount the Docking Station to a desk
or wall.
4
Mounting Holes (x 4)
5 Power Button • Used to turn the Docking Station On/Off.
• Used to secure the Docking Station to a
secure stationary object.
6 Lock Slot
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3 4
5
Function
Note: Located on the bottom of the Docking
Station.
Note: Located on the side of the Docking
Station.
Rear
6
Component
7 Power Connector
8 USB-C Host Port
HDMI Video 1 and 2
9
Ports (x 2)
10
RJ-45 Port
11 USB-A Ports (x 2)
Requirements
For the latest requirements, please visit
Powering the Docking Station
1. Connect the Universal Power Adapter to the Power Connector on the Docking
Station.
2. Connect the Power Cord to the Universal Power Adapter and to an AC Electrical
Outlet.
7
8 9 10 11
Function
• Used to power the Docking Station by
connecting the Universal Power Adapter to
the Docking Station.
• Used to connect the Host Computer to the
Docking Station.
• Used to charge the connected Host Computer.
• Power Delivery 3.0.
• 60W of power output.
• Used to connect two HDMI Display Devices to
the Docking Station.
• Maximum Resolution: 1920x1200 @ 60 Hz.
• Used to connect a Network Device to the
Docking Station.
• Used to connect USB Devices to the Docking
Station (mouse, keyboard, etc.).
www.startech.com/DK30CHHPD
Quick-Start Guide
Manual Revision: August 28, 2019 8:48 AM
