USB-C™ Quad-4K Docking Station - DisplayPort and HDMI - 100W PD

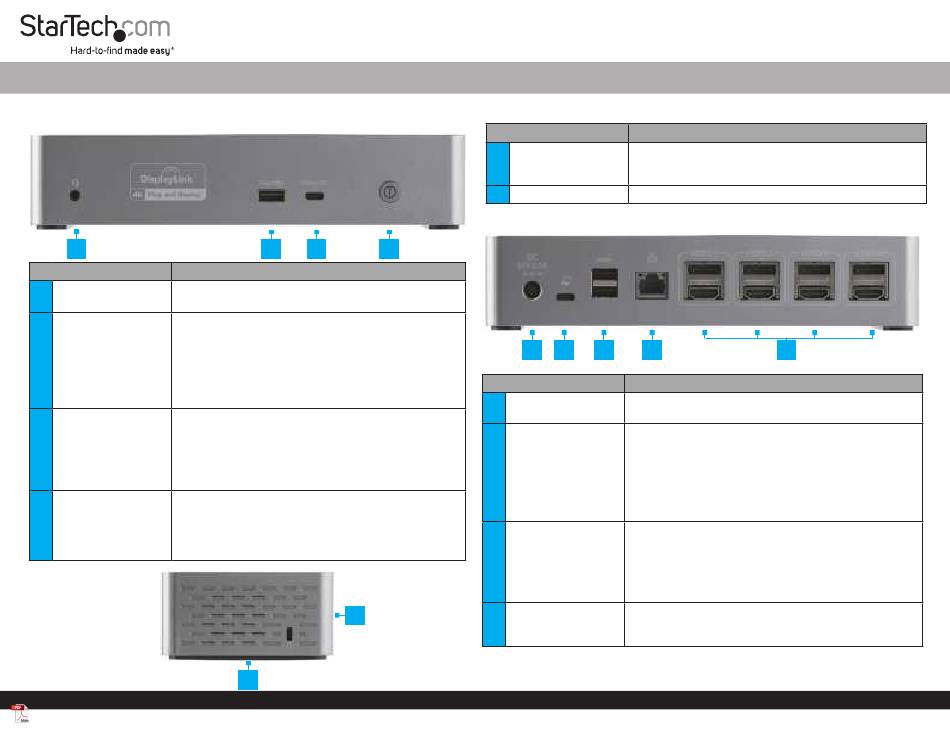

Product Diagram (DK31C4DPPD and DK31C4DPPDUE)

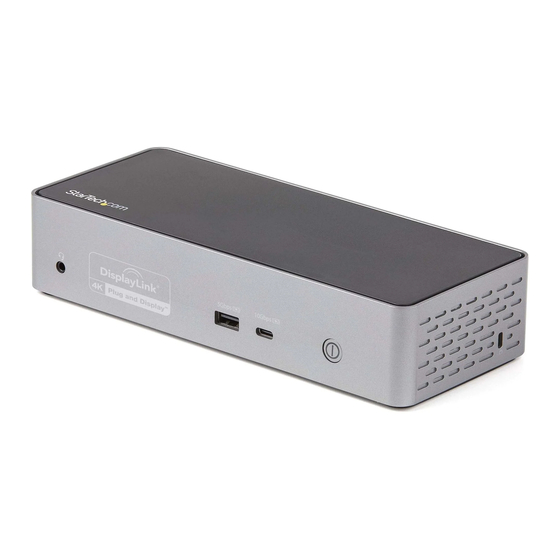

Front View
1
1
Port
• Connect an Audio Device
1
3.5mm Audio Port
• 4 Position Audio Jack for Headset use
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• Supports USB BC 1.2
• Supports Apple Charging of up to 2.4A
2
USB-A Charging Port
• Connect the Docking Station to a SuperSpeed USB
5Gbps Peripheral or Storage Device (e.g. flash drive),
using a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Cable
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• Supports charging of up to 3A 5V
• Connect the Docking Station to a SuperSpeed USB
3
USB-C Charging Port
10Gbps Peripheral or Storage Device (e.g. flash
drive), using a SuperSpeed USB-C 10Gbps (USB 3.2
Gen 2) Cable
• Powered ON by default
• Solid White LED indicates the Docking Station is
4
Power Button
receiving power and is powered ON
• Press and release the Power Button to power ON the
Docking Station
Side View
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
*Actual product may vary from photos
4
2
3
Specifications and Installation
*Actual product may vary from photos
6
5
Port
• (Optional) Mount the Docking Station, using
5
Mounting Holes
appropriately sized Mounting Plate Assembly (sold
separately)
6
Lock Slot
• Secure the Docking Station to a stationary object
Rear View
7
8
9
10
Port
• Connect the Docking Station to a Power Source,
7
DC 20V Port
using the Universal Power Adapter
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• Charge the Host Device while using the Docking
Station
8
USB-C Host Port
• USB Power Deliver (PD) 5/9/12/15/20V
• Connect the Docking Station to a to a Laptop, using
the SuperSpeed USB-C 10Gbps (USB 3.2
Gen 2) Host Cable
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• Maximum 0.9A for downstream charging
• Connect the Docking Station to two SuperSpeed
9
USB-A Device Ports
USB 5Gbps Peripherals and/or Storage Devices (e.g.
flash drives), using a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Cable
• 10/100/1000 Mbps
10
RJ45 Port
• Connect the Docking Station to a Network Device,
using a Network Cable
Quick-Start Guide
Specifications and Installation
*Actual product may vary from photos
11
Specifications and Installation
Manual Revision: January 26, 2021
