StarTech.com DK31C2DHSPD Quick Start Manual

USB-C™ 10Gbps Gen 2 Triple Monitor Docking Station - 2x DP + HDMI - 100W PD - DP 1.4 MST
Product Diagram (DK31C2DHSPD and DK31C2DHSPDUE)

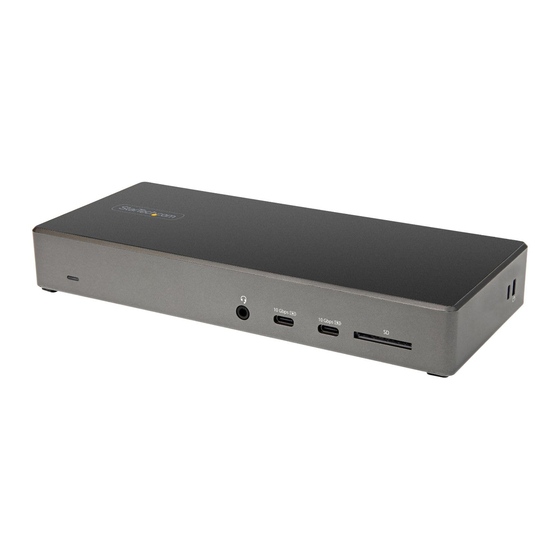

Front View
1
Port
• Solid White LED indicates the Docking Station is
1
Power LED Indicator
receiving power and is powered ON
• Connect an Audio Device
2 3.5mm Audio Port
• 4 Position Audio Jack for Headset use
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• Supports charging of up to 5V/3A
• Connect the Docking Station to a SuperSpeed USB
3 USB-C Charging Port
10Gbps Peripheral or Storage Device (e.g. flash
drive), using a SuperSpeed USB-C 10Gbps (USB 3.2
Gen 2) Cable
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• USB Power Deliver (PD) 3.0
• Supports charging of up to 5V/3A
4 USB-C Charging Port
• Connect the Docking Station to a SuperSpeed USB
10Gbps Peripheral or Storage Device (e.g. flash
drive), using a SuperSpeed USB-C 10Gbps (USB 3.2
Gen 2) Cable
• Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0
compatibility
• Push an SD Card, label side up, into the SD Card Slot
until it clicks into place
5 SD Card Slot
Note: The Host Computer's Operating System (OS)
will automatically detect the SD Card and install the
required driver software.
• Push then pull the SD Card to remove
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 3 4 5
Specifications and Installation
Left Side View
6
Port
• Powered ON by default
6 Power Button
• Press and release the Power Button to power OFF the
Docking Station
Right Side View
7
Port
7 Nano Lock Slot • Secure the Docking Station to a stationary object
8 • Secure the Docking Station to a stationary object
Lock Slot
Rear View
9
10 11
Port
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• Connect the Docking Station to two SuperSpeed
9 USB-A Device Ports
USB 5Gbps Peripherals or Storage Devices (e.g. flash
drives), using SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Cables
• USB 2.0
• Minimum 2.5W (5V/0.5A) power output
10
USB-A Device Ports • Connect the Docking Station to two USB-A
Peripherals and/or Storage Devices (e.g. flash drives),
using USB Cables
Quick-Start Guide
Specifications and Installation
8
Specifications and Installation
13 15
14
12
Specifications and Installation
Manual Revision: February 18, 2021
