StarTech.com DK30CHPH Quick Start Manual

USB-C™ HDMI Tablet and Smartphone Docking Station - iPad Pro & Android - HDMI

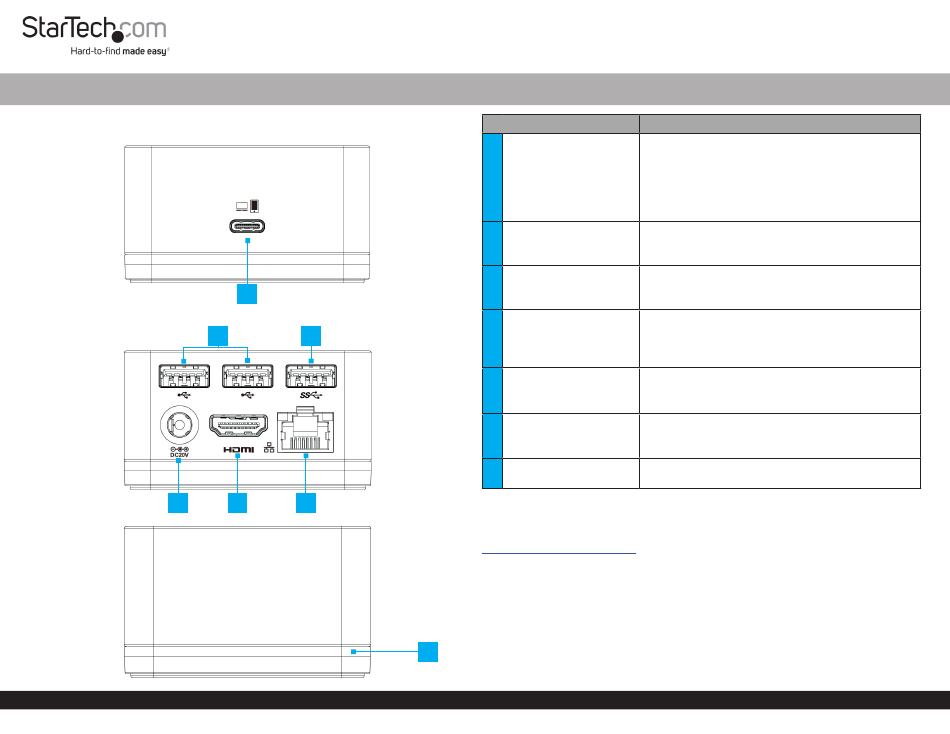

Product Diagram (DK30CHPH)
Front View
Rear View
4
Side View
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
2 3
5 6
Port
1 USB-C Host Port
2 USB 2.0 Ports
3
SuperSpeed USB Port
4
DC Power Input Port
5
HDMI Output Port
6
RJ45 Port
7 LED Indicator
Requirements
For the latest requirements and to view the full manual, please visit:
www.startech.com/DK30CHPH.
• Host Computer with USB-C Port
• DP-Alt Mode Compatible
• USB PD Support
7
Quick-Start Guide
Function
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• DP 1.2 Alt Mode
• Charge the Host Device while using the Docking
Station
• PD3.0 5/9/12/15V
• Connect to a Phone or a Tablet
• USB 2.0
• Connect a USB-A Storage Device (e.g. flash drive),
or a USB-A Peripheral Device
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• Connect a USB-A Storage Device (e.g. flash drive),
or a USB-A Peripheral Device
• Type-N barrel connector
• 45W (20V 2.25A)
• Connect the Universal Power Adapter to supply
power to the Docking Station
• HDMI 2.0b
• 4K @ 30Hz
• Connect an HDMI Display Device
• 10/100/1000 Mbps
• Connect a Network Cable to establish a network
connection
• Green indicates the Host Device and Power
Source are connected
Manual Revision: December 23, 2020
