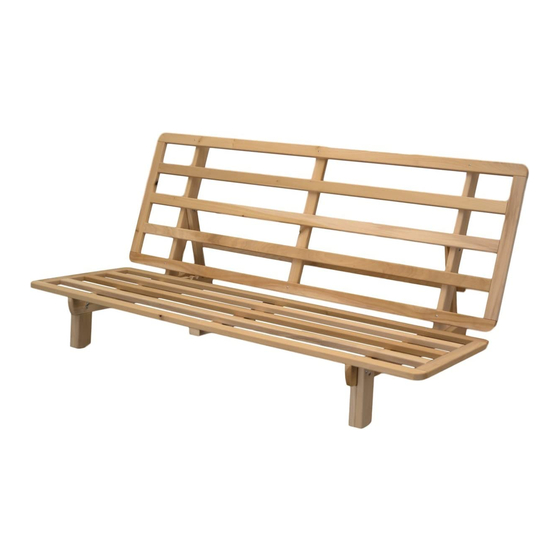

Instructions for
Studio Bifold
Full
sku# 4722-BI-F
Manufactured by:
400-B Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com

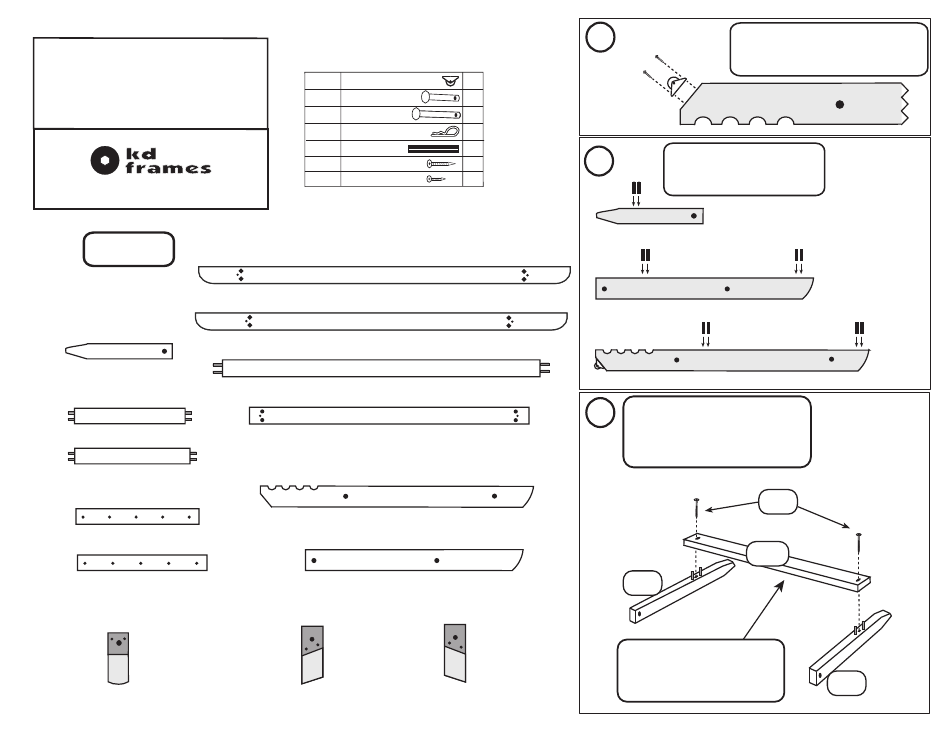

PARTS
(2) K-15 PROP - 15"
(2) K-20-S SEAT SLAT CAP - 20"
(2) K-22-B BACK SLAT CAP - 22"
(1) B-24-S SEAT SLAT SUPPORT - 24"
(1) B-26-B BACK SLAT SUPPORT - 26"
(2) B-9 SEAT LEG - 9"
HARDWARE
H-LW
WHEELS
H-8
2-1/4" CLEVIS PIN
H-12
3-1/4" CLEVIS PIN
HAIR PIN
H-5
WOOD DOWEL
H-11
H-19
1-3/4" WOOD SCREW
3/4" WOOD SCREWS
H-34
(2) B-74-B BACK SLAT - 74"
(2) B-74-S SEAT SLAT - 74"
(6) B-70-M MIDDLE SLAT - 70"
(1) B-56-P PROP CONNECTOR - 56"
(2) B-37-S SEAT RAIL - 37"
(2) K-31-B BACK RAIL - 31"
(1) K-10-BL BACK LEG
(1) K-10-BR BACK LEG
1
2
4
2
6
20
2
28
4
K-15 PROP (2)
3
Press the Prop Connector (K-56-P)
onto the Wood Dowels on the
Props (K-15) and attach with
(2) 1-3/4" Screws (H-19).
K-15
The Prop Connector (K-56-P)
Attach a Wheel (H-LW) to each
Seat Rail (B-37-S) using
(2) 3/4" Wood Screws (H-34)
Push Wood Dowels (H-11)
all the way into holes
as shown.
K-31-B BACK RAIL (2)
B-37-S SEAT RAIL (2)
H-19
K-56-P
NOTE:
is longer than it looks
in this drawing.
K-15
