Hikmicro Gryphon GQ50L User Manual

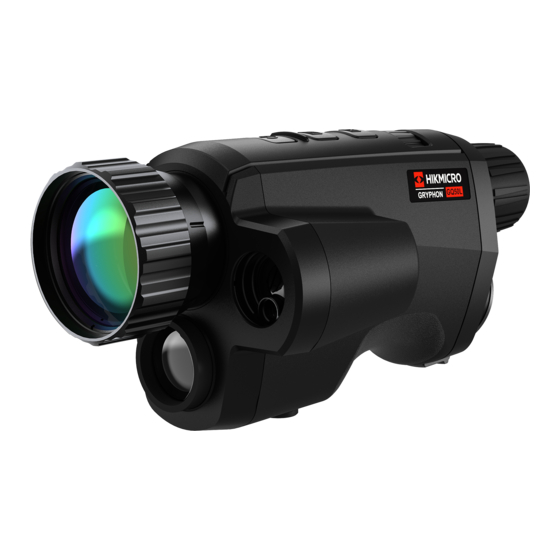

Handheld thermal monocular camera
Hide thumbs Also See for Gryphon GQ50L:
Table of Contents

Advertisement

Quick Links

Handheld Thermal Monocular Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gryphon GQ50L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hikmicro Gryphon GQ50L

Summary of Contents for Hikmicro Gryphon GQ50L

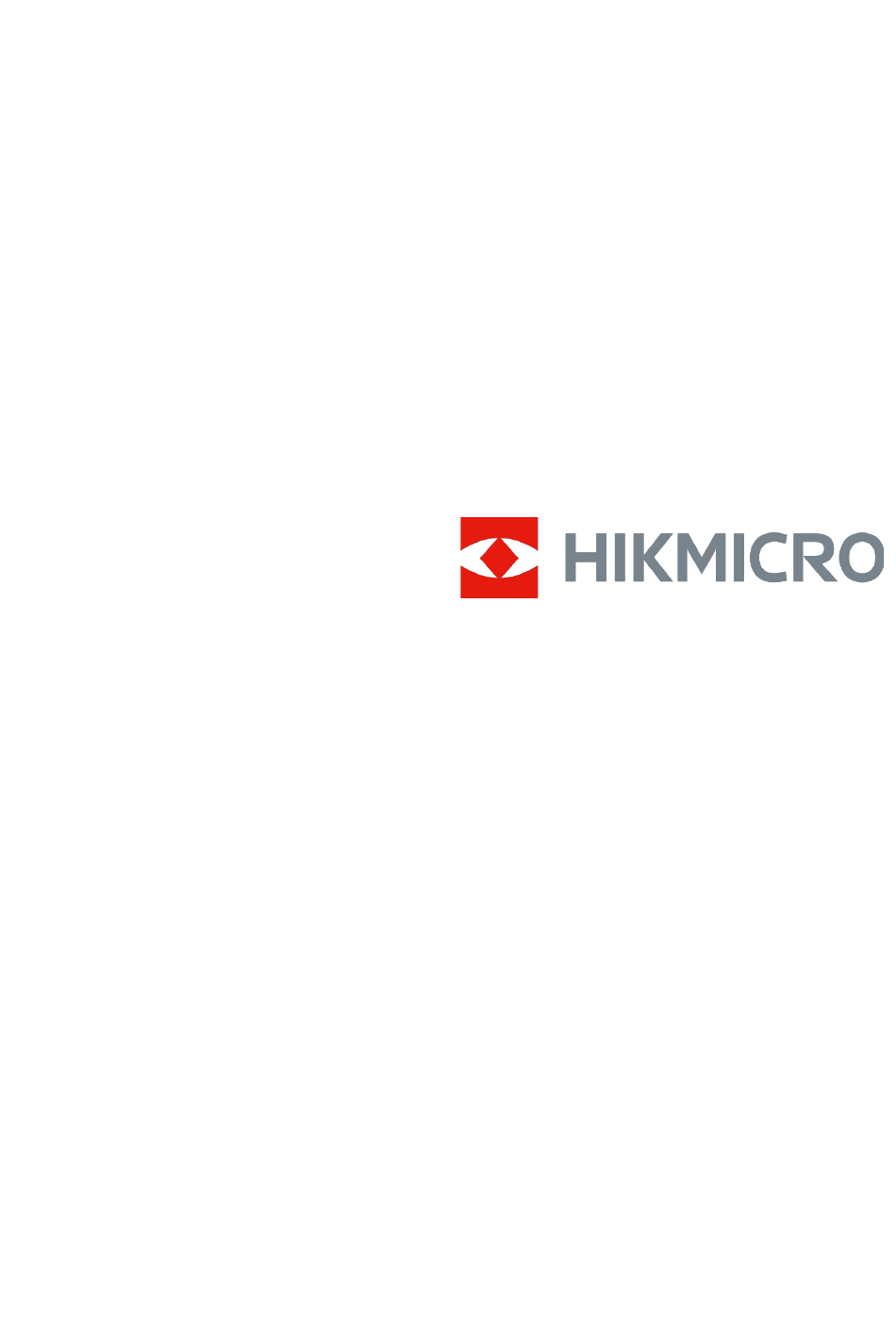

  • Page 1 Handheld Thermal Monocular Camera User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Handheld Thermal Monocular Camera User Manual NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 4 Handheld Thermal Monocular Camera User Manual Regulatory Information FCC Information Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 Handheld Thermal Monocular Camera User Manual lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. 1.
  • Page 6 Handheld Thermal Monocular Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 7 Handheld Thermal Monocular Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 8 Handheld Thermal Monocular Camera User Manual ● This equipment is not suitable for use in locations where children are likely to be present. ● CAUTION: Risk of explosion if the battery is replaced by an incorrect type. ● Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some lithium battery types).
  • Page 9 Handheld Thermal Monocular Camera User Manual Manufacture Address Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict, Binjiang District, Hangzhou, Zhejiang 310052, China Hangzhou Microimage Software Co., Ltd. COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement.

  • Page 10: Table Of Contents

    Handheld Thermal Monocular Camera User Manual Table of Contents Chapter 1 Overview........................1 1.1 Device Description ......................... 1 1.2 Main Function ........................1 1.3 Appearance ..........................1 Chapter 2 Preparation ........................ 5 2.1 Connect Device ........................5 2.2 Install Battery ........................5 2.3 Power On/Off ........................
  • Page 11 Handheld Thermal Monocular Camera User Manual 7.2 Record Video ........................19 7.3 Export Files .......................... 20 Chapter 8 Client Software Connection ..................21 Chapter 9 CVBS Output ......................22 9.1 Cable Connection ......................... 22 Chapter 10 Language Settings ....................23 Chapter 11 Unit Settings ......................

  • Page 12: Chapter 1 Overview

    ● Client Software Connection: The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. ● Image Correction: The device supports DPC (Defective Pixel Correction) and FFC (Flat Field Correction) which can optimize the image quality.
  • Page 13 Handheld Thermal Monocular Camera User Manual Figure 1-1 Appearance I of the Device...
  • Page 14 Handheld Thermal Monocular Camera User Manual Figure 1-2 Appearance II of the Device Table 1-1 Buttons and Component of Two Appearances Description Function Thermal Lens ● View the thermal image Optical Lens ● View the optical image Laser Range ● Measure the distance with laser. Finder ●...
  • Page 15 Handheld Thermal Monocular Camera User Manual Description Function ● Press: Measure the distance with laser Measure Key ● Hold: Capture ● Press: Palettes Menu Key ● Hold: Enter/exit the menu ● Adjust the digital zoom Wheel ● Select functions in menu mode ●...

  • Page 16: Chapter 2 Preparation

    Handheld Thermal Monocular Camera User Manual Chapter 2 Preparation 2.1 Connect Device Before You Start Turn on the device after connecting it to your PC, and keep the device on for 10 to 15 seconds before other operations. Steps 1. Lift the cable interface cover. 2.

  • Page 17: Power On/Off

    Handheld Thermal Monocular Camera User Manual Figure 2-2 Install the Battery 3. Align the marks on the battery cover and the device, and put the battery cover on the battery. Figure 2-3 Install the Battery Cover 4. Rotate the battery cover clockwise to fix it. Note Remove the battery from the battery compartment if the device is not used for a long time.

  • Page 18: Menu Description

    Handheld Thermal Monocular Camera User Manual Auto Power Off You can set the auto power off time for your device. Steps 1. Hold to go to the menu. 2. Rotate the wheel to select , and press to select the auto power off time as required. 3.

  • Page 19: Chapter 3 Image Settings

    Handheld Thermal Monocular Camera User Manual Chapter 3 Image Settings 3.1 Set Focus Steps 1. Power on the device. 2. Hold the device and make sure the eyepiece covers your eye. 3. Adjust the focus ring until the image is clear. Note When focusing, do not touch the surface of lens to avoid smearing the lens.

  • Page 20: Set Palettes

    Handheld Thermal Monocular Camera User Manual 3. Hold to save settings and exit. 3.5 Set Palettes You can select different palettes to display the same scene in different effects. Steps 1. Hold to go to the menu. 2. Rotate the wheel to select 3.
  • Page 21 Handheld Thermal Monocular Camera User Manual Black Hot The hot part is black-colored in view. The higher the temperature is, the more black the color is. Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.

  • Page 22: Set Fusion Level

    Handheld Thermal Monocular Camera User Manual Image Fusion Fuse the optical image with the thermal image. The fused image with clear edge is displayed in this mode. 3.6 Set Fusion Level When the palette is set as image fusion, you can adjust the fusion level according to the actual observation distance to obtain better image fusion effect.

  • Page 23: Adjust Digital Zoom

    Handheld Thermal Monocular Camera User Manual Steps 1. Hold to show the menu. 2. Rotate the wheel to select 3. Press to enable Brand Logo. 4. Hold to save the settings and exit. Result The brand logo is displayed at the bottom right of the image. Figure 3-2 Brand Logo Display Note After enabling this function, the brand logo only displays on the live view interface, captures and...

  • Page 24: Image Calibration

    Handheld Thermal Monocular Camera User Manual Note ● When holding in the DPC interface, the menu at the bottom of the interface can be mirrored to the top of the interface. ● The selected defective pixel can be magnified and displayed at the bottom right of the interface.

  • Page 25: Synchronize Time

    Handheld Thermal Monocular Camera User Manual 3. Rotate the wheel to select the OSD information you want to display or hide. 4. Press to enable or disable the selected OSD information. 3.11.1 Synchronize Time Steps 1. Hold to show the menu. 2.

  • Page 26: Chapter 4 Burning Prevention

    Handheld Thermal Monocular Camera User Manual Chapter 4 Burning Prevention This function can prevent the detector of the thermal channel from being burned. When enabling this function, the shield will close if the grey scale of the detector reaches a certain value. Steps 1.

  • Page 27: Chapter 5 Hot Tracking

    Handheld Thermal Monocular Camera User Manual Chapter 5 Hot Tracking The device can detect the highest temperature spot in the scene and mark it on display. Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to mark the spot of highest temperature.

  • Page 28: Chapter 6 Measure Distance

    Handheld Thermal Monocular Camera User Manual Chapter 6 Measure Distance The device can detect the distance between the target and the observation position with laser. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected.

  • Page 29: Measure Distance With Cursor

    Handheld Thermal Monocular Camera User Manual 6.2 Measure Distance with Cursor Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to go to the setting interface. 3. Press to set the parameters for the target. 1) Rotate the wheel to select the target from Deer, Grey Wolf, Brown Bear, and Custom.

  • Page 30: Chapter 7 Picture And Video

    Handheld Thermal Monocular Camera User Manual Chapter 7 Picture and Video You can manually record video or capture picture when displaying live view. 7.1 Capture Picture In the main live view interface, hold to capture pictures. The device supports capturing pictures while recording videos.

  • Page 31: Export Files

    Handheld Thermal Monocular Camera User Manual 7.3 Export Files This function is used to export recorded videos and captured pictures. Before You Start ● Turn off the hotspot function. ● Turn on the device after connecting it to your PC, and keep the device on for 10 to 15 seconds before other operations.

  • Page 32: Chapter 8 Client Software Connection

    Handheld Thermal Monocular Camera User Manual Chapter 8 Client Software Connection Connect the device to the HIKMICRO Sight App via hotspot, then you can capture picture, record video, or configure parameters on your phone. Steps 1. Hold to show the menu of device.

  • Page 33: Chapter 9 Cvbs Output

    Handheld Thermal Monocular Camera User Manual Chapter 9 CVBS Output View the device image on the display unit for details. Before You Start Connect the device to the display unit via CVBS interface of the aviation plug. Refer to Section Cable Connection.

  • Page 34: Chapter 10 Language Settings

    Handheld Thermal Monocular Camera User Manual Chapter 10 Language Settings You can select the device language in this function. Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to enter the language configuration interface. 3.

  • Page 35: Chapter 11 Unit Settings

    Handheld Thermal Monocular Camera User Manual Chapter 11 Unit Settings You can switch the unit for fusion level and laser ranging functions. Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to switch the unit. 3.

  • Page 36: Chapter 12 Maintenance

    Handheld Thermal Monocular Camera User Manual Chapter 12 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 12.1 View Device Information Steps 1. Hold to show the menu of device. 2. Select , and press .

  • Page 37: Chapter 13 Frequently Asked Questions

    Handheld Thermal Monocular Camera User Manual Chapter 13 Frequently Asked Questions 13.1 Why is the monitor off? Check whether the device is off-battery. Check the monitor after charging the device for 5 minutes. 13.2 The image is not clear, how to adjust it? Adjust the diopter adjustment knob until the image is clear.

  • Page 38: Chapter 13 Appendix

    Chapter 13 Appendix 13.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 13.2 Device Communication Matrix Scan the following QR code to get device communication matrix.
  • Page 39 UD25396B-A...
