Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have
come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list
shown below.
PARTS LIST
NO
DESCRIPTION
1
TABLE TOP
2
TOP PANEL
3
LEG
4
SIDE PANEL
5
SIDE PANEL WINE RACK
6
MIDDLE PANEL
7
DOOR PANEL (L/R)
8
BACK PANEL
9
BOTTOM PANEL
IMPORTANT NOTE :
ASSEMBLY INSTRUCTIONS
D1903-30

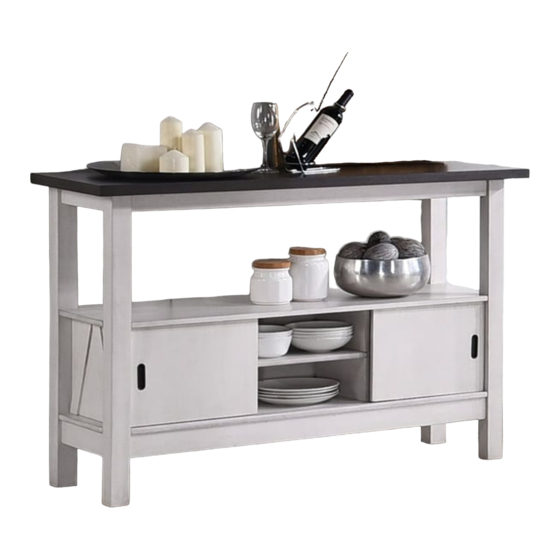

MAISIE SERVER
SKETCH
QTY
1 PC
1 PC
4 PCS
2 PCS
2 PCS
1 PC
2 PCS
1 PC
1 PC
HARDWARE LIST
NO
DESCRIPTION
A
JCBB BOLT - M8 x 60mm
B
FLAT WASHER - M8
C
SPRING WASHER - M8
D
ALLEN KEY - M5
E
WOOD DOWEL
F
L BRACKET
G
CSK SCREW - M3.5 x 12mm
SKETCH
QTY
8 PCS
8 PCS
8 PCS
1 PC
16 PCS
6 PCS
12 PCS
Advertisement
Related Manuals for New Classic Furniture D1903-30
Summary of Contents for New Classic Furniture D1903-30

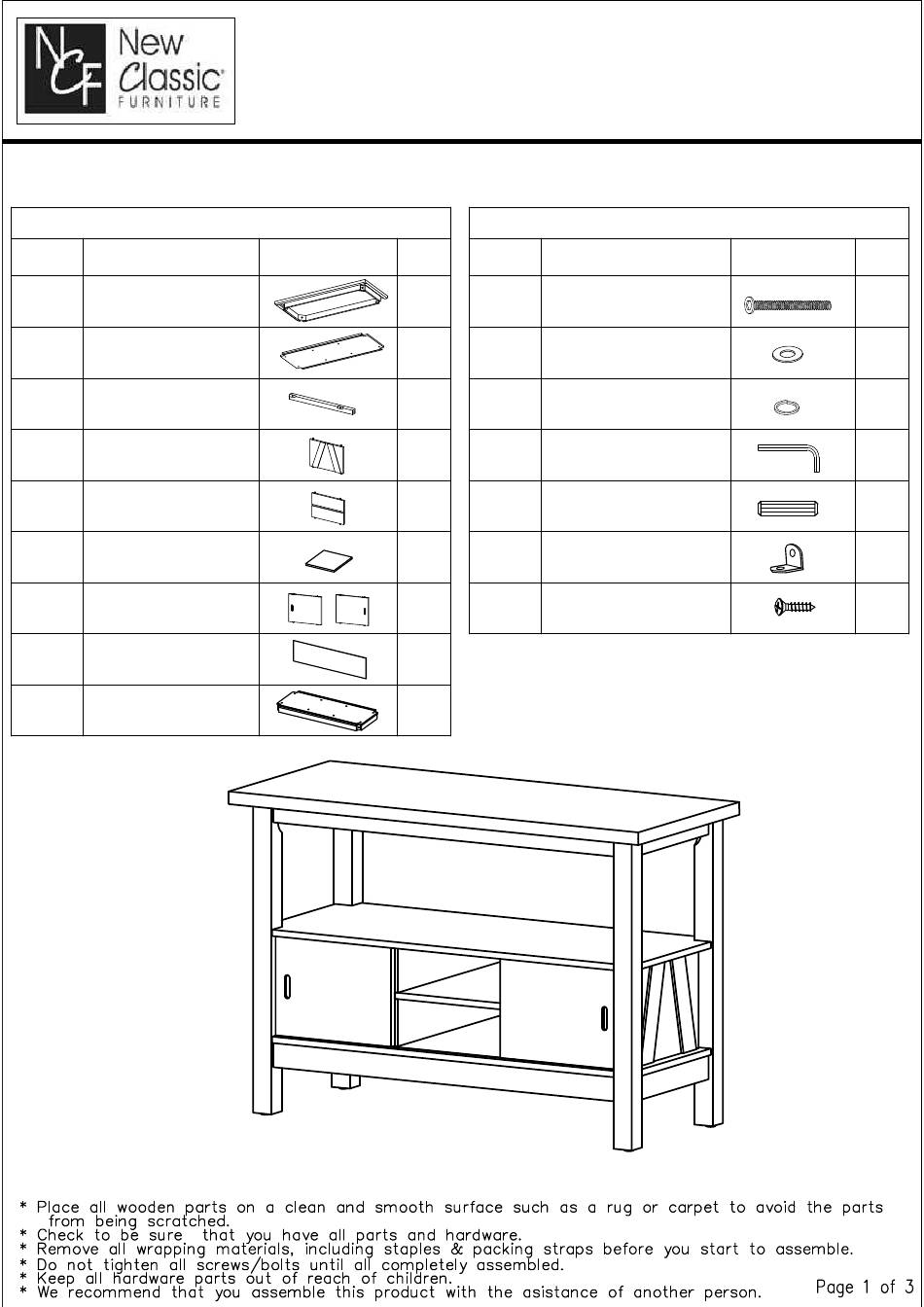

- Page 1 ASSEMBLY INSTRUCTIONS D1903-30 MAISIE SERVER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS D1903-30 MAISIE SERVER Step 1. Step 2. FRONT Step 3. Step 4. SLOT IN THE MIDDLE SHELF (6) INTO PLACE THE BACK PANEL (8) INTO THE THE DIVIDER PANEL (5). FLUTE AND THEN ASSEMBLE THE TOP PANEL (2) TO THE SIDE PANEL (4) AND DIVIDER PANEL (5).
- Page 3 ASSEMBLY INSTRUCTIONS D1903-30 MAISIE SERVER Step 5. Step 6. SERVER TOP HAVE SHOWN STICKER (B) FOR IMPORTANT: TOP BACK SIDE. PLEASE ASSEMBLY THE TO SECURE THE CENTER SHELF IN PLACE, SERVER TOP (STICKER B) AT BACK SIDE. THE L BRACKETS MUST BE INSTALLED AS SHOWN ON STEP 6.
