6 | Unit installation

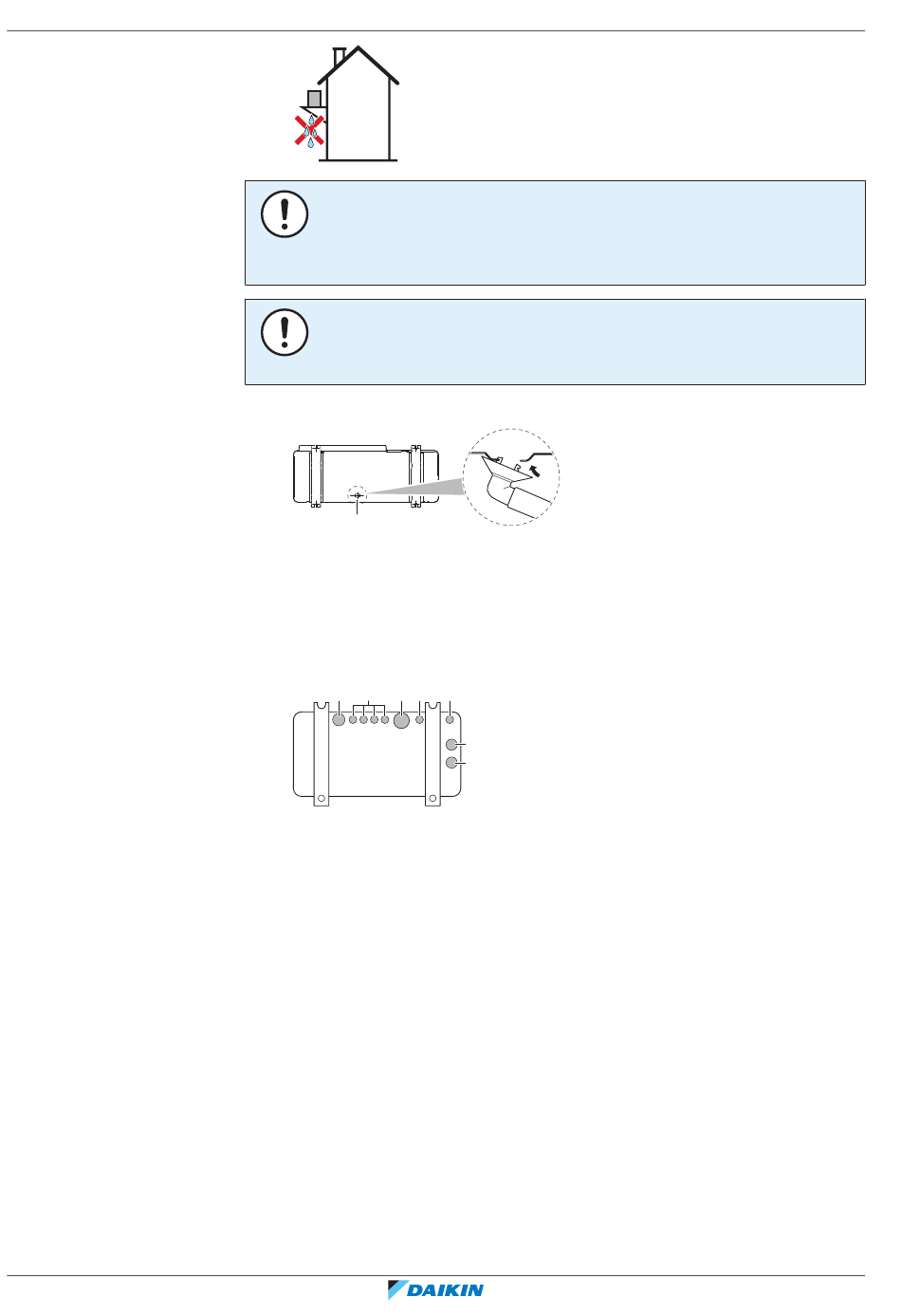

To close the drain holes and attach the drain socket

6.3.6 To prevent the outdoor unit from falling over

Installer reference guide
30
NOTICE
In cold areas, do NOT use a drain socket, hose and caps (large, small) with the
outdoor unit. Take adequate measures so that the evacuated condensate CANNOT
freeze.
NOTICE
If the drain holes of the outdoor unit are blocked up by a mounting base or floor
surface, place additional foot bases ≤30 mm under the outdoor unit's feet.
▪ Use a drain socket for drainage if necessary.
a
a Drain hole
1 Install drain caps (accessory f) and (accessory g). Make sure the edges of the
drain caps close off the holes completely.
2 Install the drain socket.
a b c b
a Drain hole. Install a drain cap (large).
b Drain hole. Install a drain cap (small).
c Drain hole for drain socket
In case the unit is installed in places where strong wind can tilt the unit, take
following measure:
1 Prepare 2 cables as indicated in the following illustration (field supply).
2 Place the 2 cables over the outdoor unit.
3 Insert a rubber sheet between the cables and the outdoor unit to prevent the
cables from scratching the paint (field supply).
4 Attach the ends of the cables.
5 Tighten the cables.
b
a
a
4MWXM-A9
R32 Split series
4P708645-1 – 2022.09
