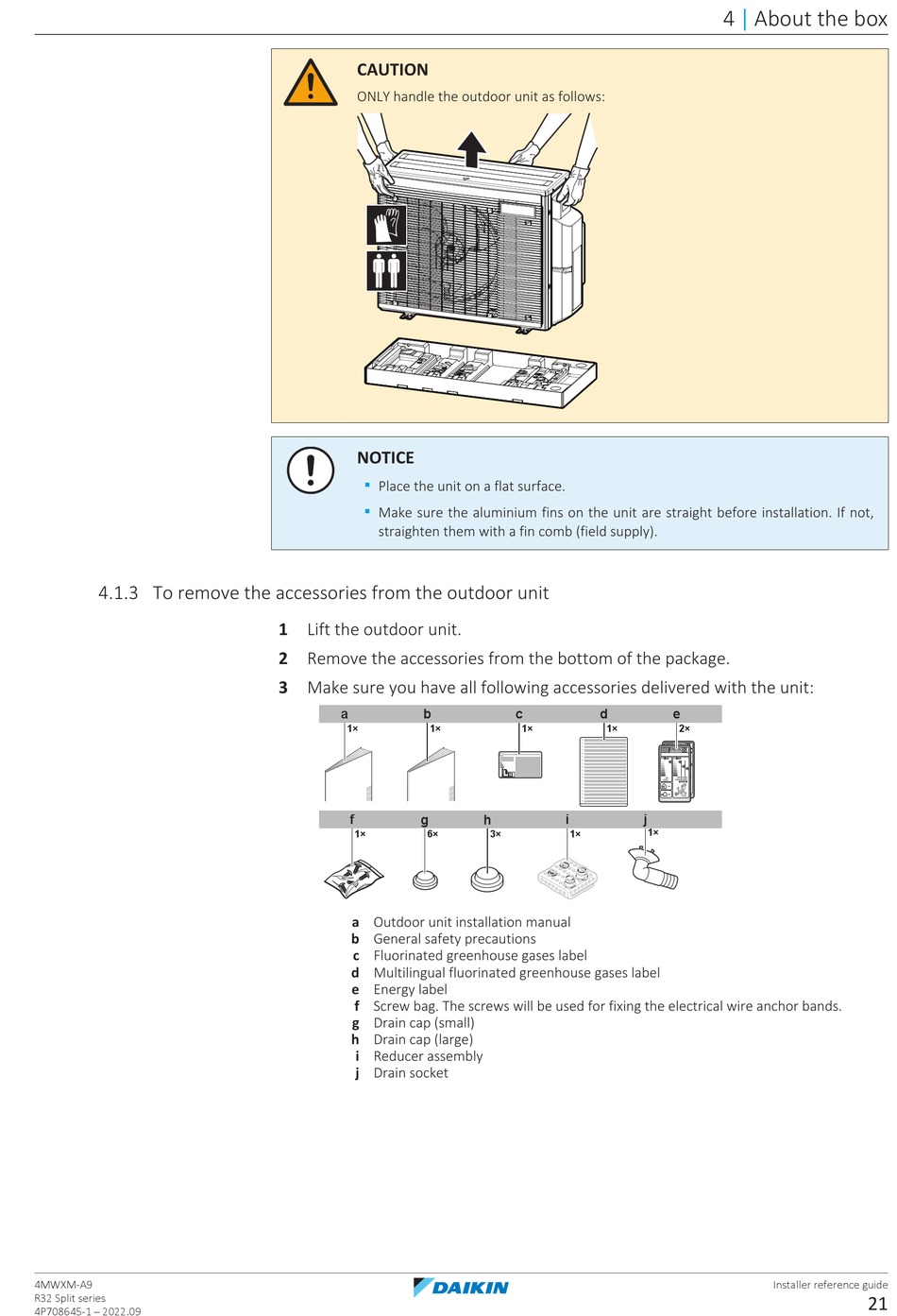

4.1.3 To remove the accessories from the outdoor unit

4MWXM-A9
R32 Split series
4P708645-1 – 2022.09
CAUTION
ONLY handle the outdoor unit as follows:
NOTICE
▪
Place the unit on a flat surface.
▪
Make sure the aluminium fins on the unit are straight before installation. If not,
straighten them with a fin comb (field supply).
1 Lift the outdoor unit.
2 Remove the accessories from the bottom of the package.
3 Make sure you have all following accessories delivered with the unit:
a b
1× 1×
f g
1× 6×
a Outdoor unit installation manual
b General safety precautions
c Fluorinated greenhouse gases label
d Multilingual fluorinated greenhouse gases label
e Energy label
f Screw bag. The screws will be used for fixing the electrical wire anchor bands.
g Drain cap (small)
h Drain cap (large)
i Reducer assembly
j Drain socket
c d
1× 1×
h i j
1×
3× 1×
4 About the box
|
e
2×
