3.2 Top Cover
_________________________ Caution ___________________________
Use care when removing and replacing the cover to prevent damage to the RFI
gaskets that are located around the cover and opening.
____________________________________________________________
Perform the following procedure to remove the top cover:
1. Unlock the top cover by turning the key, located on the rear of the chassis, clockwise
to the unlock position (see Figure 3-1). The lock is unlocked when the key is in the
vertical position.
2. Insert two fingers into the finger grip on the rear edge of the top cover.
3. Slide the top cover toward the rear of the chassis and remove (see Figure 3-1).
To replace the top cover, refer to Figure 3-1and reverse steps 1 through 3 of the removal
procedure.

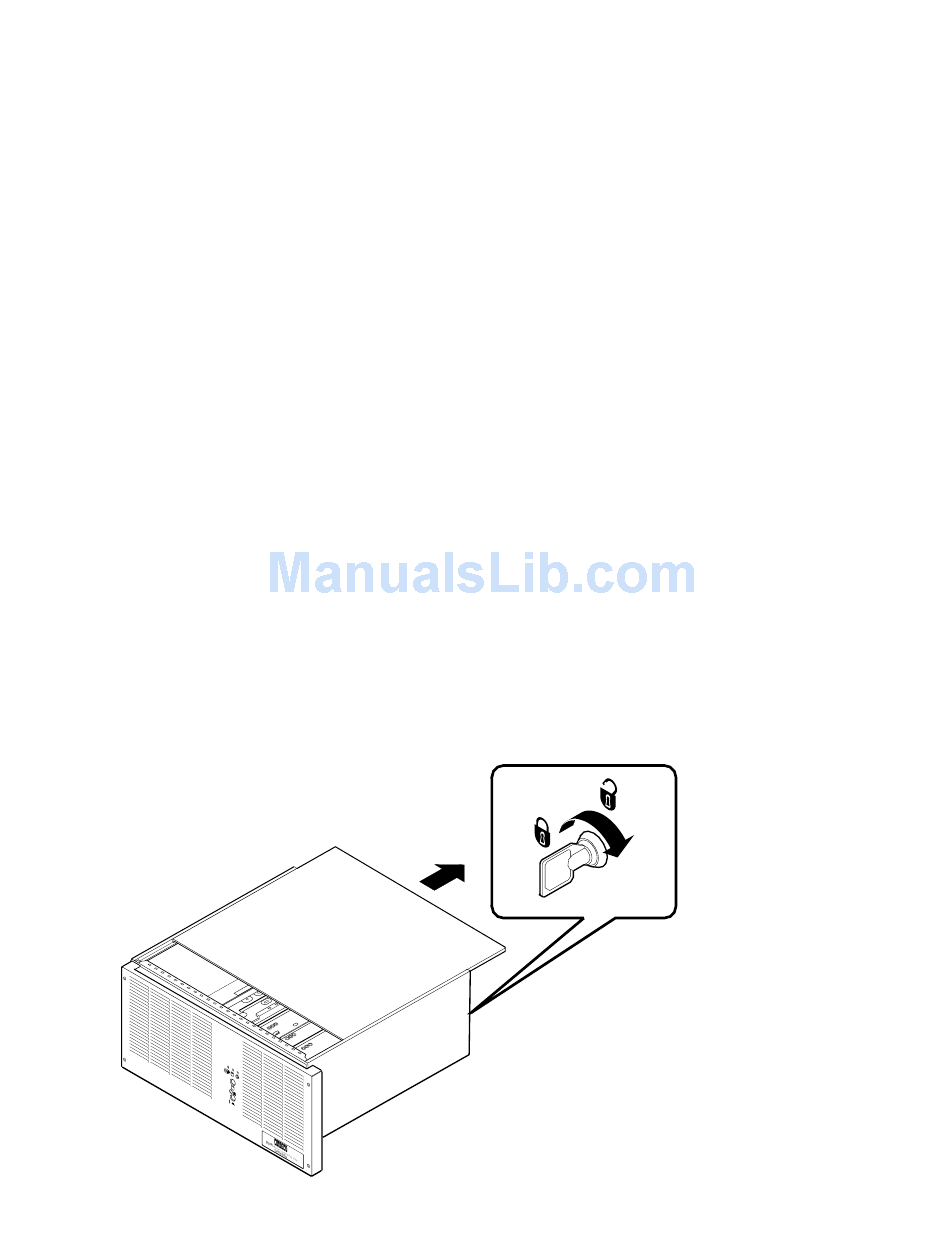

Figure 3-1 Removing and Replacing the Top Cover
DIGITAL 2T-CCMHA-CB Central Office Memory Channel Hub Installation/Service Guide 3–3
Removal and Replacement
LJ-06508.AI7
