Schematic Diagram - Linear Technology DC2566A Demo Manual

DEMO MANUAL DC2566A

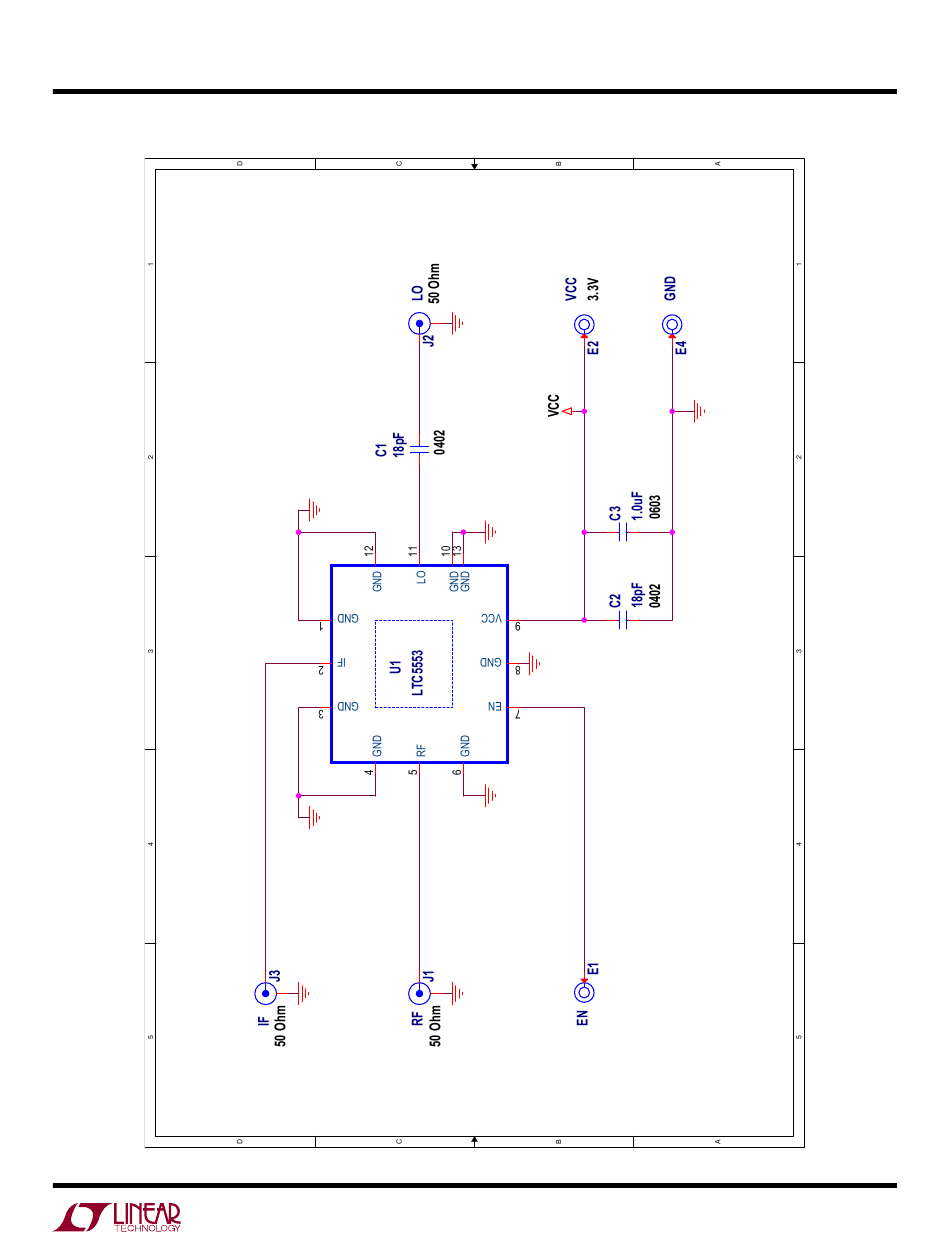

scheMAtic DiAgrAM

dc2566af
5
