Linear Technology DC2566A Demo Manual

Description
Demonstration circuit DC2566A is optimized for evaluation
of the LTC 5553 passive double-balanced mixer. Its RF
®
port is broadband matched from 3GHz to 20GHz, and the
internal LO amplifier, requiring only a 0dBm drive level,
is broadband matched to 50Ω from 1GHz to 20GHz with
10dB Return Loss. The single-ended IF output is broadband
matched from 500MHz to 9GHz. The LTC5553 can be
used for upconverting and downconverting applications.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2566A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.

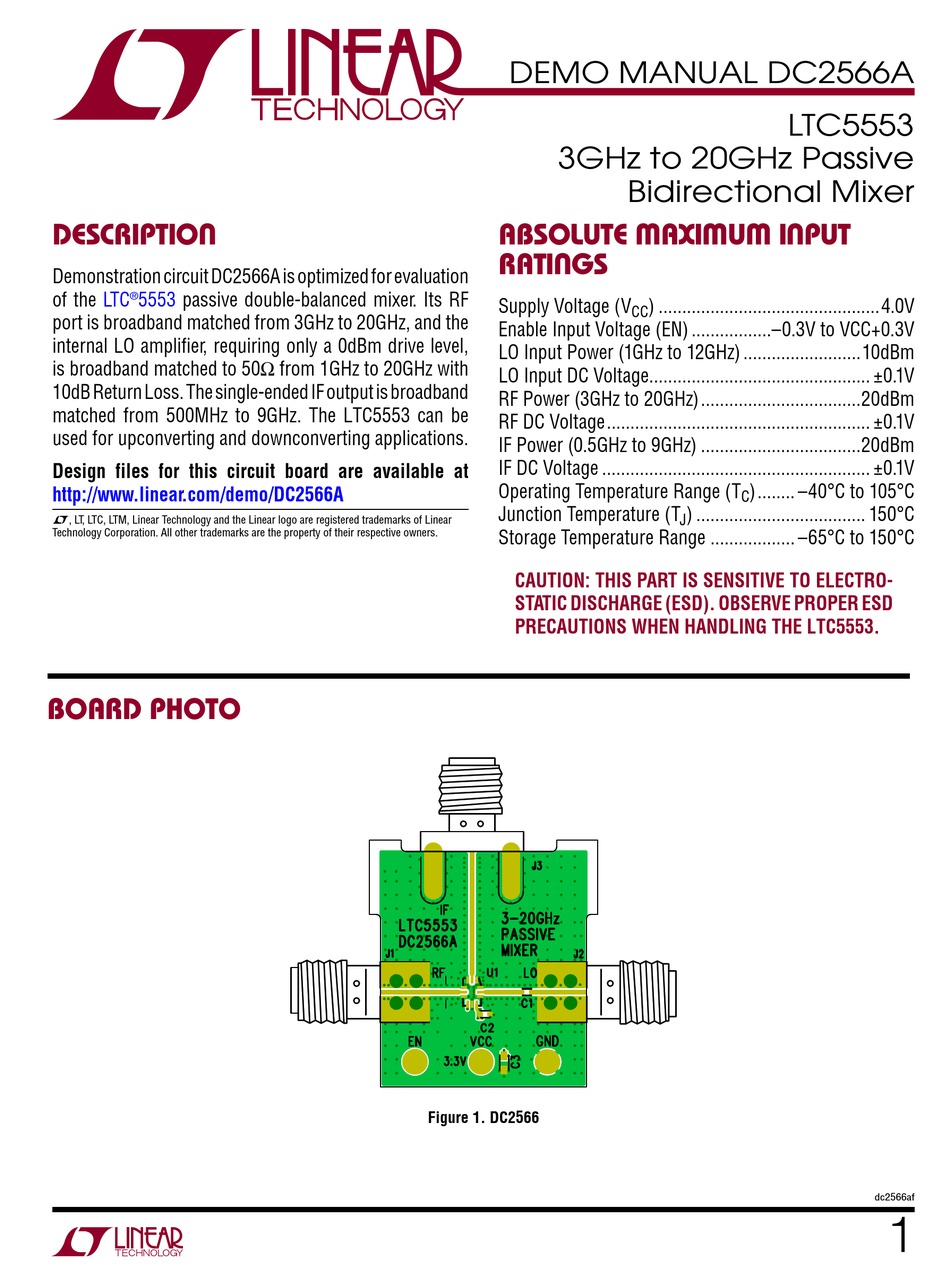

boArD photo
DEMO MANUAL DC2566A
3GHz to 20GHz Passive
Absolute MAxiMuM input
rAtings
Supply Voltage (V
Enable Input Voltage (EN) .................–0.3V to VCC+0.3V
LO Input Power (1GHz to 12GHz) .........................10dBm
LO Input DC Voltage ............................................... ±0.1V
RF Power (3GHz to 20GHz) ..................................20dBm
RF DC Voltage ........................................................ ±0.1V
IF Power (0.5GHz to 9GHz) ..................................20dBm
IF DC Voltage ......................................................... ±0.1V
Operating Temperature Range (T
Junction Temperature (T
Storage Temperature Range .................. –65°C to 150°C
CAUTION: ThIs pArT Is seNsITIve TO eleCTrO-
sTATIC DIsChArge (esD). Observe prOper esD
preCAUTIONs wheN hANDlINg The lTC5553.
Figure 1. DC2566
LTC5553
Bidirectional Mixer
) ...............................................4.0V
CC
) ........ –40°C to 105°C
C
) .................................... 150°C
J
dc2566af
