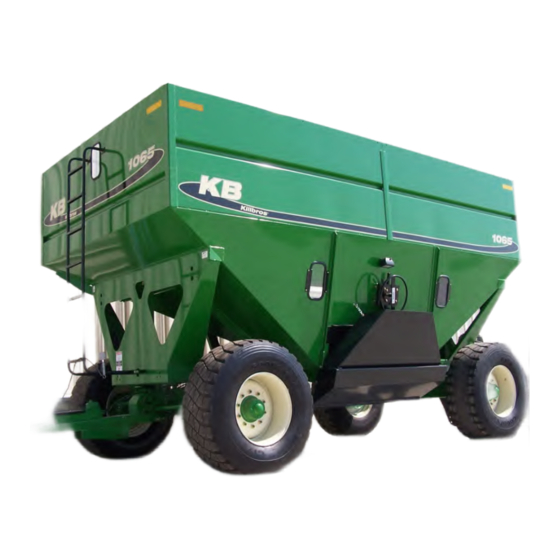

Unverferth Killbros 1065 Manual

Grain handling, grain wagon
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Grain Handling
GRAIN WAGON
MODEL 1065
Serial Number B32630100 & Higher
Part No. 301140

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Killbros 1065 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth Killbros 1065

Summary of Contents for Unverferth Killbros 1065

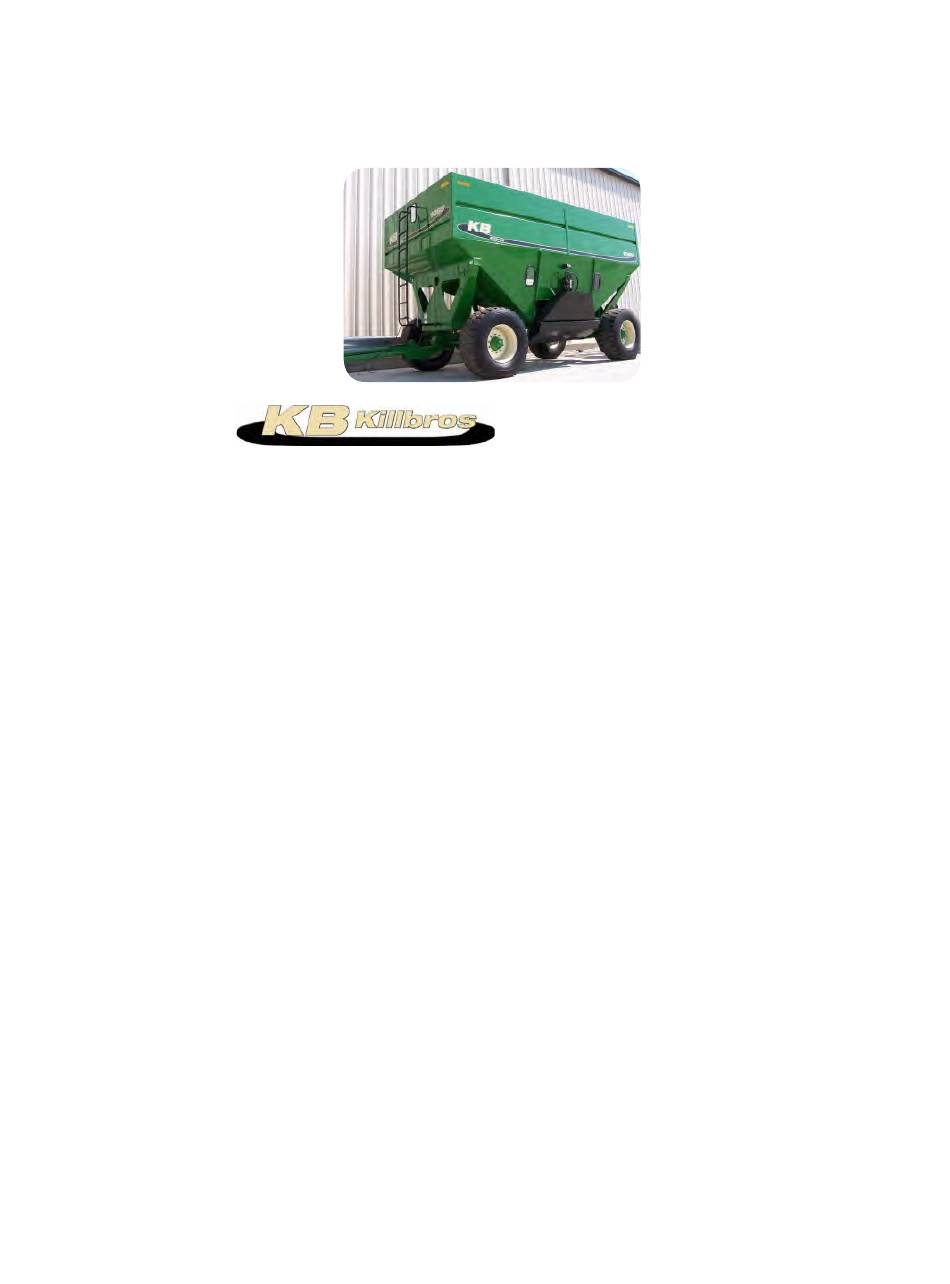

  • Page 1 Grain Handling GRAIN WAGON MODEL 1065 Serial Number B32630100 & Higher Part No. 301140...
  • Page 2 1065 GRAIN WAGON — Introduction Foreword This symbol identifies important safety messages. When you see it, read the message that follows and be alert to the possibility of personal injury. Remember, safety instructions stated in this manual are for your protection. Read them carefully and fol- low them closely when working around or using this machine.
  • Page 3 • Serial number All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions.

  • Page 4: Table Of Contents

    1065 GRAIN WAGON — Introduction Table of Contents Section I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Following Safety Instructions ..................... 1-4 Before Servicing......................... 1-4 Before Operating ........................1-5 During Operation ........................1-5 Before Transporting ........................1-6 During Transport.........................
  • Page 5 1065 GRAIN WAGON — Introduction Table of Contents Section III Operation Tandem Operation ........................... 3-2 Chute............................... 3-3 Weather Guard Tarp Operation ....................... 3-4 Section IV Maintenance Seasonal Storage ........................4-2 Electrical Schematic........................4-3 Wheels & Tires Wheel Nut Torque Requirements..................4-4 Tire Pressure ........................
  • Page 6 1065 GRAIN WAGON — Introduction Table of Contents Section V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Tongue............................5-2 Undercarriage Components ......................5-4 Wheels and Tires ........................5-7 Brake Components ........................5-8 13” Brake Components......................5-10 Gravity Box..........................5-12 Fender Components .........................

  • Page 7: Safety

    1065 GRAIN WAGON — Safety SECTION I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Following Safety Instructions ..................... 1-4 Before Operating or Servicing ....................1-5 During Operation ........................1-5 Before Transporting ........................1-6 During Transport ......................... 1-6 Pressurized Oil ...........................

  • Page 8: General Hazard Information

    It is true that the designer, the manufacturer, and the safety engineer can help; and they will help, but their combined efforts can be wiped out by a single careless act of the operator. It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg.

  • Page 9: Safety Decals

    1065 GRAIN WAGON — Safety Safety Decals • REPLACE LOST, DAMAGED, PAINTED, OR UNREADABLE DECALS IMMEDIATELY. IF PARTS THAT HAVE DECALS ARE REPLACED, ALSO MAKE SURE TO INSTALL NEW DECALS. THESE DECALS INFORM AND REMIND THE OPERATOR WITH OPERATIONAL INFORMATION AND SAFETY MESSAGES. 94754 9008720 PART NO.

  • Page 10: Following Safety Instructions

    1065 GRAIN WAGON — Safety Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufac- turer.

  • Page 11: Before Servicing

    1065 GRAIN WAGON — Safety Before Operating or Servicing • Do not stand between towing vehicle and implement during hitching. • Avoid working under an implement; however, if it becomes absolutely unavoidable, make sure the implement is safely blocked. • Always make certain everyone and everything is clear of the machine before beginning operation.

  • Page 12: Before Transporting

    1065 GRAIN WAGON — Safety Before Transporting • Secure transport chain to towing vehicle before transporting. DO NOT transport without chain. • Check for proper function of all available transport lights. Make sure that all reflectors are clean and in place on machine. Make sure the SMV emblem and SIS decals visible to approaching traf- fic.

  • Page 13: Pressurized Oil

    1065 GRAIN WAGON — Safety Pressurized Oil • Relieve pressure before loosening any hydraulic fittings or servicing hydraulic sys- tem. • Use a piece of cardboard or wood to detect leaks of hydraulic fluid under pressure. Correct hy- draulic leaks immediately. •...

  • Page 14: Preparing For Emergencies

    1065 GRAIN WAGON — Safety Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job. •...

  • Page 15: Set Up

    1065 GRAIN WAGON — Set Up SECTION II Set Up Set Up Checklist ..........................2-2 SMV Emblem & SIS Decals ...................... 2-3 Important Checkpoints - Tires and Wheels ................2-4 Important Checkpoints - Tongue and Wheel Alignment ............2-6 Hitch ............................2-7 Transport Chain ..........................

  • Page 16: Set Up Checklist

    1065 GRAIN WAGON — Set Up Set-Up Checklist After the wagon has been completely assembled, use the following checklist and inspect the wagon. Check off each item as it is found satisfactory or after proper adjustment is made. o Torque wheel nuts and check tire pressure as specified in MAINTENANCE section. o Tires are inflated to specified air pressure, located in the MAINTENANCE section.

  • Page 17: Smv Emblem & Sis Decals

    1065 GRAIN WAGON — Set Up SMV Emblem & SIS Decals Before the wagon is used the reflective surface of the SMV must face rearward. This may re- quire removal of film protecting the reflective surface or removing and reinstallation of the SMV.
  • Page 18 1065 GRAIN WAGON — Set Up Important Check Points Tires and Wheels 1. Check tire pressures and maintain at recommended values listed in this manual. For questions regarding new tire warranty, please contact your local original equipment tire dealer. Used tires carry NO WARRANTY. Tire manufacturers’ phone numbers and web sites are listed in this manual for your convenience.
  • Page 19 1065 GRAIN WAGON — Set Up Important Check Points (continued) 4. Wheel hubs (check grease after first season of use.) NOTE: The bearings are pressure packed with grease. An empty hub cavity does not indicate a lack of grease. It is not beneficial to fill the cavity. 5.

  • Page 20: Important Checkpoints - Tongue And Wheel Alignment

    1065 GRAIN WAGON — Set Up Important Check Points (continued) Tongue and Wheel Alignment Please refer to the following information for specific tongue/wheel alignment. If the tongue does not pull perpendicular to the front axle, the grain wagon can “dog-track”. 1.

  • Page 21: Hitch

    1065 GRAIN WAGON — Set Up Hitch The standard hitch pin size for your grain wagon is 1 1/4”. • Failure to use the correct size hitch pin can cause premature failure of hitch clevis and tractor drawbar. FIG. 2-8 Transport Chain • ALWAYS USE TRANSPORT CHAIN WHEN TRANSPORTING IMPLEMENTS. FAILURE TO USE CHAIN COULD CAUSE PERSONAL INJURY OR DAMAGE IF IMPLEMENTS BECOME...

  • Page 22: Steering Axle Stop Adjustment

    1065 GRAIN WAGON — Set Up Steering Axle Stop Adjustment Turn wheels both directions on level ground and adjust axle stop bolts for 1 - 1 1/2” clear- ance between inside tire edge and nearest frame. FIG. 2-9...
  • Page 23 1065 GRAIN WAGON — Set Up Brake System • HIGH-PRESSURE FLUIDS CAN PENETRATE THE SKIN AND CAUSE SERIOUS INJURY OR DEATH. SEEK MEDICAL TREATMENT IMMEDIATELY IF INJURED BY HIGH-PRESSURE FLUIDS. USE CARDBOARD OR WOOD TO DETECT LEAKS IN THE HYDRAULIC SYSTEM. • HYDRAULIC SYSTEM MUST BE PURGED OF AIR BEFORE OPERATING TO PREVENT SERIOUS INJURY OR DEATH. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT.

  • Page 24: Brake System - Brake Bleeding

    1065 GRAIN WAGON — Set Up Brake System (continued) Brake Bleeding Use ONLY quality DOT-3 heavy-duty brake fluid. If pressure bleeding equipment is available, follow the manufacturer’s instructions in bleed- ing the system. Manual Bleeding Fill master cylinder with fluid. Bleed rear brakes first (farthest from master cylinder). Loosen the bleeder screw located in wheel cylinder one turn.

  • Page 25: Electrical Hook-Up

    If your tractor does not have this type of receptacle, an SAE J-560 seven-point socket can be purchased from your Unverferth dealer (order Part #92824). The wiring schematic for this cart complies with ASABE Standards.

  • Page 26: Adjustable Chute

    1065 GRAIN WAGON — Set Up Adjustable Chute Your grain wagon features an adjustable-height unloading chute. The adjustment bolt is lo- cated under the door area of the grain wagon. When the bolt is turned in (clockwise), the unloading height of the chute increases. When the bolt is turned out (counter-clockwise), the chute height is lowered.

  • Page 27: Unloading Side Reversal - Optional

    1065 GRAIN WAGON — Set Up Unloading Side Reversal - Optional • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 4,000 LBS.

  • Page 28: Fender Installation - Optional

    1065 GRAIN WAGON — Set Up Fender Installation - Optional • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. KEEP HANDS CLEAR OF PINCH POINT AREAS • NOTE: All capscrews and nuts which tighten directly against the plastic fenders must have a flat washer to provide adequate surface bearing.

  • Page 29: Fender Installation - Optional

    1065 GRAIN WAGON — Set Up Fender Installation - Optional Rear Fenders 2. Position rear fenders over top arms and secure with capscrews, fender washers and lock nuts. 3. Assemble mud flaps and bottom arms (RH & LH) to rear fenders as shown with capscrews, fender washers, and lock nuts.
  • Page 30 1065 GRAIN WAGON — Set Up Fender Installation - Optional Front Fenders 4. Bolt front top arms to frame with capscrews and flange nuts. 5. Use the fender mount plate (300672B) for mounting the front fender to the top arms on the standard tire fender kit.
  • Page 31 1065 GRAIN WAGON — Set Up Fender Installation - Optional Front Fenders 6. Mount tube to frame brackets with flange bolts and flange nuts. Refer to previous page for bolt and bracket locations. Assemble tube to rear of FIG. 2-24 bracket as shown.
  • Page 32 1065 GRAIN WAGON — Set Up Fender Installation - Optional (continued) 7. Bolt front fenders to tube with 3/8 x 2 1/2 capscrews, fender washers and lock nuts in top holes. 8. Assemble mud flaps and back plates to front fenders with 3/8 x 1 capscrews, fender washers and lock nuts in bottom holes.
  • Page 33 1065 GRAIN WAGON — Set Up Fender Installation - Optional Fenders for 425, 445, 455, 460 Tires Sizes Use these hole locations when using Tire Sizes. Use outer holes for 425, 445, 455, 460 Tires. FIG. 2-29 2-19...
  • Page 34 1065 GRAIN WAGON — Set Up Fender Installation for Wide Fenders - Optional Fenders for 560, 600 & Dual Tires Sizes Use these hole locations when using larger tires sizes (560, 600 & Duals) for clearance pur- poses. FIG. 2-31 Front Mount Mount tube as shown on rear side of bracket.
  • Page 35 1065 GRAIN WAGON — Set Up Fender Installation - Optional (continued) • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. Fender Light Installation - Optional 1. Center mounting bezel in molded fender relief. FIG. 2-34 Once located, use mounting bezel as a tem- plate and drill two 3/16”...
  • Page 36 1065 GRAIN WAGON — Set Up Fender Installation - Optional (continued) Fender Light Installation - Optional 3. Assemble mounting bezel to fender using pro- FIG. 2-37 vided hardware. Position light terminals over 1 1/16” diameter hole and push light into mounting bezel for a snap fit, see Figure 2-37.
  • Page 37 1065 GRAIN WAGON — Set Up Fender Installation - Optional (continued) Fender Light Installation - Optional (continued) 4. Locate front and rear fender harness center Front fender harness break-out leads over main harness leads on the running gear center pull tube and connect the same color wires.
  • Page 38 1065 GRAIN WAGON — Set Up Fender Installation - Optional (continued) Wiring (Where Applicable) 6. Install perimeter wiring harness and connect to main harness. Crimp light wires to harness connectors. Assemble lights to fenders, with ground eyelets on mounting bolts. 7.

  • Page 39: Weather Guard Tarp Installation - Optional

    1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional • TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE PEOPLE WHO REMAIN OUTSIDE THE WAGON TO ASSIST THE PERSON WORKING INSIDE, AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE IS RESTRICTED MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE IMPLE- MENT.

  • Page 40: Weather Guard Tarp Installation - Optional

    1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 3. Assemble the bow brackets and latch plates: Models Using Bow Brackets - 300977B Assemble bow brackets (300977B) and FIG. 2-45 latch plate to the right side panel or side board with torx head screw (9005312) and flange nut (91263).
  • Page 41 1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) Secure latch plate to front of panel with LATCH eyebolt (9004548) and two flange nuts PLATE (91263). See Figure 2-47. The latch plates are divided in the center of the wagon with pre punched holes for ease of assembly.
  • Page 42 1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) NOTE: Ensure countersunk capscrews (902703- 046) are flush with the top of bow weldment Countersunk Capscrew (301209B). See Figure 2-50. (902703-046) 6. Tighten all hardware. Tarp Bow (301209B) FIG.
  • Page 43 1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 7. Attach the cable assemblies (9005708) to the 300494B rear end cap holes, see Figure 2-52. Run ca- bles over the top of the bows (301209B - SN B37690100 &...
  • Page 44 1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 8. (2-person operation) On a clean floor, lay the tarp out flat with the raw edge of the hems and pockets down and the exterior side facing up. 9.
  • Page 45 1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) 11. Insert knotted stretch rope (221722) through flat washer (9405-074), plastic tube (221668) and end plug (9004947). Place these items as an assembly into front end of 2” roll tube weld- 2”...

  • Page 46: Hand Crank Handle

    1065 GRAIN WAGON — Set Up Weather Guard Tarp Installation - Optional (continued) Hand Crank Handle Fig. 2-60 15. Locate the bracket just above the box fold line, centered on the box. Using self-tapping screws (96972) mount bracket to box and se- cure using flange nut (91263).

  • Page 47: Operation

    1065 GRAIN WAGON — Operation SECTION III Operation Tandem Operation ........................3-2 Chute ............................3-3 Weather Guard Tarp Operation ....................3-4...
  • Page 48 1065 GRAIN WAGON — Operation Tandem Operation When pulling wagons in the tandem option, please do the following: 1. Connect the electrical cord. 2. Hook up the safety chain on the lead wagon that is sized for the total load. 4.

  • Page 49: Chute

    1065 GRAIN WAGON — Operation Chute Moving Chute to Unload Position: While using the chute handle, push the handle on the catch latch toward the wagon. Lower the chute in a controlled manner until the chute rests against the adjustable height stop bolt. Moving Chute to Transport Position: Use the chute handle to lift the chute into the catch latch making sure the latch is fully engaged into the catch latch hook.

  • Page 50: Weather Guard Tarp Operation

    1065 GRAIN WAGON — Operation Weather Guard Tarp • TO PREVENT PERSONAL INJURY OR DEATH, DO NOT ALLOW ANYONE ON A CLOSED TARP. TARP SYSTEM IS NOT DESIGNED TO SUPPORT A PERSON. • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. REMOVE ACCUMULATED WATER/SNOW/ICE OR ANY OTHER OBJECTS FROM TARP BEFORE OPENING TARP. • Do not open or close tarp while moving or in high wind conditions. Damage to the tarp may occur.
  • Page 51 1065 GRAIN WAGON — Operation Weather Guard Tarp (continued) Procedure 1. Using both hands, carefully remove crank handle from holder. 2. Roll tarp to the desired location, choosing either a fully open or fully closed position. 3. To close the tarp, roll the main tarp tube clockwise up under the latch plate. Next, bring the crank handle down perpendicular to the ground.
  • Page 52 1065 GRAIN WAGON — Operation Notes...

  • Page 53: Maintenance

    1065 GRAIN WAGON — Maintenance SECTION IV Maintenance Seasonal Storage ........................4-2 Electrical Schematic ........................4-3 Wheels & Tires Wheel Nut Torque Requirements ..................4-4 Tire Pressure ........................4-5 Tire Warranty ........................4-5 Complete Torque Chart Capscrews - Grade 5 ......................4-6 Brake Line Fittings - Torque &...

  • Page 54: Seasonal Storage

    1065 GRAIN WAGON — Maintenance Seasonal Storage Your wagon is an important investment. Spend a little time to protect it from destructive rust and corrosion, You will be repaid in longer service life and better performance. Do the following before placing the wagon in storage: 1.

  • Page 55: Electrical Schematic

    1065 GRAIN WAGON — Maintenance Electrical Schematics...

  • Page 56: Wheels & Tires

    1065 GRAIN WAGON — Maintenance Wheels and Tires Wheel Nut Torque Requirements • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. TORQUE WHEEL NUTS/BOLTS TO VALUES IN TABLE. CHECK TORQUE BEFORE USE, AFTER ONE HOUR OF UNLOADED USE OR AFTER FIRST LOAD, AND EACH LOAD UNTIL WHEEL NUTS/BOLTS MAINTAIN TORQUE VALUE.

  • Page 57: Tire Pressure

    1065 GRAIN WAGON — Maintenance Wheels and Tires (continued) Tire Pressure • The following is to be used as a general guide for tire inflation and figures can vary depending on the specific tire size used. It is important that tires are inspected after unit is loaded. Start with pressure indicated by your tire size and bushel capacity.

  • Page 58: Complete Torque Chart Capscrews - Grade 5

    1065 GRAIN WAGON — Maintenance Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts to have the same number of threads exposed on each end. FOOT NEWTON SIZE...

  • Page 59: Brake Line Fittings - Torque & Installation

    1065 GRAIN WAGON — Maintenance Brake Line Fittings – Torque and Installation INVERTED FLARE 1. Lubricate threads and assemble to fitting body. Nut should be turned hand tight. 2. Tighten assembly with wrench until a solid feel- ing is encountered. From that point, apply a one-sixth turn.

  • Page 60: Brake System - Brake Shoe Adjustment

    1065 GRAIN WAGON — Maintenance Brake System Brake Shoe Adjustment • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES AND SUP PORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 12,000 LBS. SPECIFIC LOAD RATINGS FOR INDIVIDUAL LOADS WILL BE GIVEN AT THE APPROPRIATE TIME IN THE INSTRUCTIONS. EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST •...

  • Page 61: 13" Surge Brake Information - Brake Shoe Centering

    1065 GRAIN WAGON — Maintenance 13” Surge Brake information Brake Shoe Centering (2 Person Operation ~ 15 to 20 Minutes Per Brake Assembly) Master Cylinder Cover WHEN WORKING AROUND THE MA • CHINE, BE SURE IT IS SECURELY BLOCKED; FAILURE TO DO SO COULD RESULT IN TIPPING OR MOVEMENT OF MACHINE, CAUSING SEVERE BODILY HARM.
  • Page 62 1065 GRAIN WAGON — Maintenance 13” Surge Brake information (continued) 3. Spin tire in direction of forward travel of the Fig. 5 wagon. While tire is spinning, increase the brakes using the shoe adjustment star wheel until full contact of brakes can be heard (Fig. 5). 4.

  • Page 63: Brake System - Troubleshooting Guide

    1065 GRAIN WAGON — Maintenance Brake System - Troubleshooting Guide SYMPTOM REMEDY BRAKES DRAGGING/LOCK-UP Flush brake system Disassemble slave cylinders inside brake clusters. Clean cylinder and cylinder walls. Reassemble and adjust. Install new brake fluid. BRAKE DRUMS HOT/ONE OR MORE Re-adjust brakes.

  • Page 64: Tarp Troubleshooting

    1065 GRAIN WAGON — Maintenance Tarp - Troubleshooting Guide PROBABLE CAUSE CORRECTION 1. Bows may be bent or adjusted too low. 2. Missing or loose ridge strap. Re- Tarp sags in middle areas place or retighten. 3. U-joint may need to be adjusted on splined shaft to provide more ten- sion.
  • Page 65 1065 GRAIN WAGON — Parts SECTION V Parts Please visit www.unverferth.com/parts/ for the most current parts listing. Tongue ............................5-2 Undercarriage Components ......................5-4 Wheels and Tires ........................5-7 Brake Components ........................5-8 13” Brake Components ......................5-10 Gravity Box..........................5-12 Fender Components .........................
  • Page 66 1065 GRAIN WAGON — Parts Tongue Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: The cap O-ring should be lubricated with brake fluid prior to hand tightening. Hand tighten ONLY! ITEM DESCRIPTION PART NO. QTY. NOTES Tongue Assembly =Green=...

  • Page 67: Tongue

    1065 GRAIN WAGON — Parts Tongue Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Brace Bracket 300082B Grommet, Snap Bushing 9001815 Capscrew, 5/16-18UNC x 1/2 9390-026 Grade 5 Capscrew, 5/16-18UNC x 3/4 9390-028...

  • Page 68: Undercarriage Components

    1065 GRAIN WAGON — Parts Undercarriage Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 69 1065 GRAIN WAGON — Parts Undercarriage Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Hub Sub Assembly =Green= 220416G Includes Items 2,3,4 Hub Sub Assembly =Red= 220416R Bearing Cup #453A 4.25" OD 92461...
  • Page 70 1065 GRAIN WAGON — Parts Undercarriage Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Locknut 3/4-10UNC 96732 Grade 5 Torsion Bar Pin Weldment 1" Dia. x 6 220005 Torsion Bar Pin Weldment 1" Dia. x 4 3/4 220151 Hold Down Pin Weldment 1"...

  • Page 71: Wheels And Tires

    1065 GRAIN WAGON — Parts Wheels and Tires Please visit www.unverferth.com/parts/ for the most current parts listing. TIRES For questions regard- ing new tire warranty, please contact your local original equipment tire dealer. Used tires carry no warranty. ITEM DESCRIPTION PART NO.

  • Page 72: Brake Components

    1065 GRAIN WAGON — Parts Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 73 1065 GRAIN WAGON — Parts Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Inverted Flare Cross 300184 Brake Line, 45” Bundyweld 300472 Bleeder Hose, 5/16 Dia. x 3/16 Dia. x 10 300480 Brake Hose, 42”...

  • Page 74: 13" Brake Components

    1065 GRAIN WAGON — Parts 13” Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-10...
  • Page 75 1065 GRAIN WAGON — Parts 13” Brake Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES RH Cluster Complete 93669 LH Cluster Complete 93670 Wheel Cylinder Repair Kit 91646 Back Plate Assembly 91609...

  • Page 76: Gravity Box

    1065 GRAIN WAGON — Parts Gravity Box Please visit www.unverferth.com/parts/ for the most current parts listing. 5-12...
  • Page 77 1065 GRAIN WAGON — Parts Gravity Box Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Bracket, Ladder =Black= 220288B Ladder =Black= 222013B Chain Pin 250151 Bracket, Window Retainer =Black= 250461B Brake Cover Weldment =Black=...

  • Page 78: Fender Components

    1065 GRAIN WAGON — Parts Fender Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-14...
  • Page 79 1065 GRAIN WAGON — Parts Fender Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Back Fender Plate =Black= 220725B Film, Paint Protection 220890 Front Fender 221259 Rear Fender 221260 Fender Plate Weldment =Black=...

  • Page 80: Fender Light Components

    1065 GRAIN WAGON — Parts Fender Light Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-16...
  • Page 81 1065 GRAIN WAGON — Parts Fender Light Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Decal, Important Instructions 251027 Cable Tie, 6” Long 9000106 Butt Connector, 14-16 GA. 9000166 Fender Light Harness 9006184...

  • Page 82: Door Wheel With Gear Reduction

    1065 GRAIN WAGON — Parts Door Wheel with Gear Reduction Please visit www.unverferth.com/parts/ for the most current parts listing. 5-18...
  • Page 83 1065 GRAIN WAGON — Parts Door Wheel with Gear Reduction Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Door Wheel w/Gear Reduction 222059 Incl. Items 1-20, 25, 26 Door Wheel Assembly 220060B Capscrew, 3/8-16 UNC x 2...

  • Page 84: Kick Back Chute And Smv Components

    1065 GRAIN WAGON — Parts Kick Back Chute and SMV Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-20...
  • Page 85 1065 GRAIN WAGON — Parts Kick Back Chute and SMV Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Kick Back Chute Weldment =Black= 222180B Latch Bushing 301081 Chute Weldment =Black= 301082B Manual Holder 900552 Capscrew, 1/4-20UNC x 3/4 Gr.5...

  • Page 86: Chute And Latch Components

    1065 GRAIN WAGON — Parts Chute and Latch Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-22...
  • Page 87 1065 GRAIN WAGON — Parts Chute and Latch Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Door Weldment =Black= 220020B Door Rack Bar =Black= 220033B Refer to “Door Wheel with Gear Door Lift Assembly 222059 Reduction”...

  • Page 88: Decals

    1065 GRAIN WAGON — Parts Decals Please visit www.unverferth.com/parts/ for the most current parts listing. 5-24...
  • Page 89 1065 GRAIN WAGON — Parts Decals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Decal, Door Open 9001898 Decal, Tongue Pivot 9002187 Reflector, Red 9003126 Reflector, Amber 9003127 Decal, WARNING “No Riders” 9003476 Decal, “KB KILLBROS”...

  • Page 90: Electrical Components

    1065 GRAIN WAGON — Parts Electrical Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-26...
  • Page 91 1065 GRAIN WAGON — Parts Electrical Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. QTY. NOTES Bracket - Socket 221527B Front Wire Harness 218” 9006979 Harness - Rear, Wagon 9006699 Harness - Chute 9006330...

  • Page 92: Weather Guard Tarp Components - Optional

    1065 GRAIN WAGON — Parts Weather Guard Tarp Components - Optional Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Tarp Kit w/End Caps 221638 Capscrew, 3/8-16UNC x 4 1/2 TA0-907131-0 Grade 5 Roll Tube Weldment...
  • Page 93 1065 GRAIN WAGON — Parts Weather Guard Tarp Components - Optional Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM DESCRIPTION PART NO. NOTES Plate - Latch 97" (Front) 221782 Plate - Latch 97" (Rear) 221783 Tube Crank Holder Weldment 220579B Bungee 3/8”...
  • Page 94 MANUALS\\301140///December 2013-0//October 2014-1//July 2015-2//November 2015-3//November 2016-4//September 2021-5...
