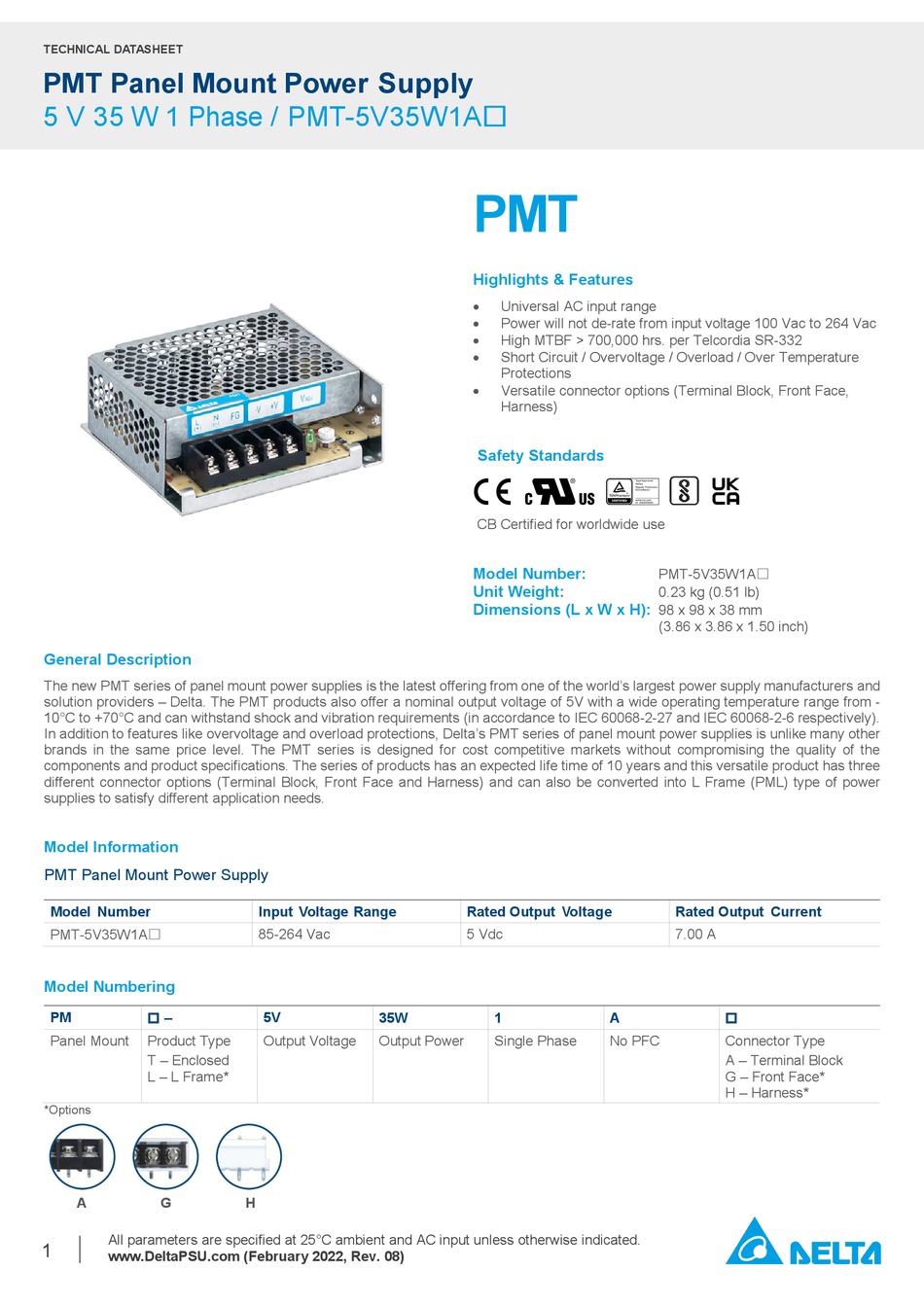

TECHNICAL DATASHEET

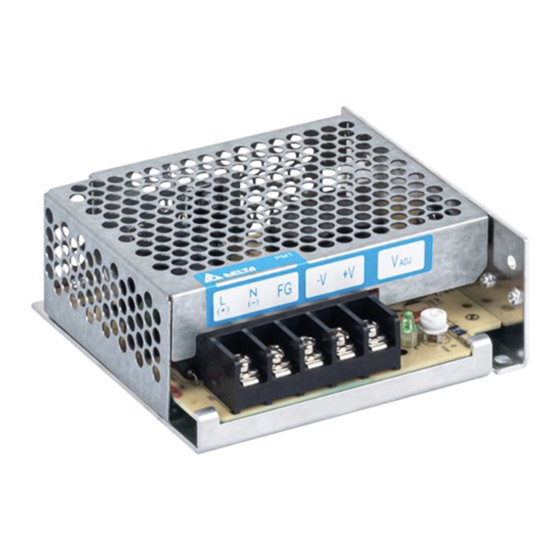

PMT Panel Mount Power Supply
5 V 35 W 1 Phase / PMT-5V35W1A□
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world's largest power supply manufacturers and
solution providers – Delta. The PMT products also offer a nominal output voltage of 5V with a wide operating temperature range from -
10°C to +70°C and can withstand shock and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively).
In addition to features like overvoltage and overload protections, Delta's PMT series of panel mount power supplies is unlike many other
brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the
components and product specifications. The series of products has an expected life time of 10 years and this versatile product has three
different connector options (Terminal Block, Front Face and Harness) and can also be converted into L Frame (PML) type of power
supplies to satisfy different application needs.
Model Information
PMT Panel Mount Power Supply
Model Number
PMT-5V35W1A☐
Model Numbering
PM
–
Panel Mount
Product Type
T – Enclosed
L – L Frame*
*Options
A
G
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (February 2022, Rev. 08)
Input Voltage Range
85-264 Vac
5V
35W
Output Voltage
Output Power
H
PMT
Highlights & Features
Universal AC input range
•
Power will not de-rate from input voltage 100 Vac to 264 Vac
•
•
High MTBF > 700,000 hrs. per Telcordia SR-332
•
Short Circuit / Overvoltage / Overload / Over Temperature
Protections
Versatile connector options (Terminal Block, Front Face,
•
Harness)
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x H):
Rated Output Voltage
5 Vdc
1
A
Single Phase
No PFC
PMT-5V35W1A☐
0.23 kg (0.51 lb)
98 x 98 x 38 mm
(3.86 x 3.86 x 1.50 inch)
Rated Output Current
7.00 A
Connector Type
A – Terminal Block
G – Front Face*
H – Harness*
