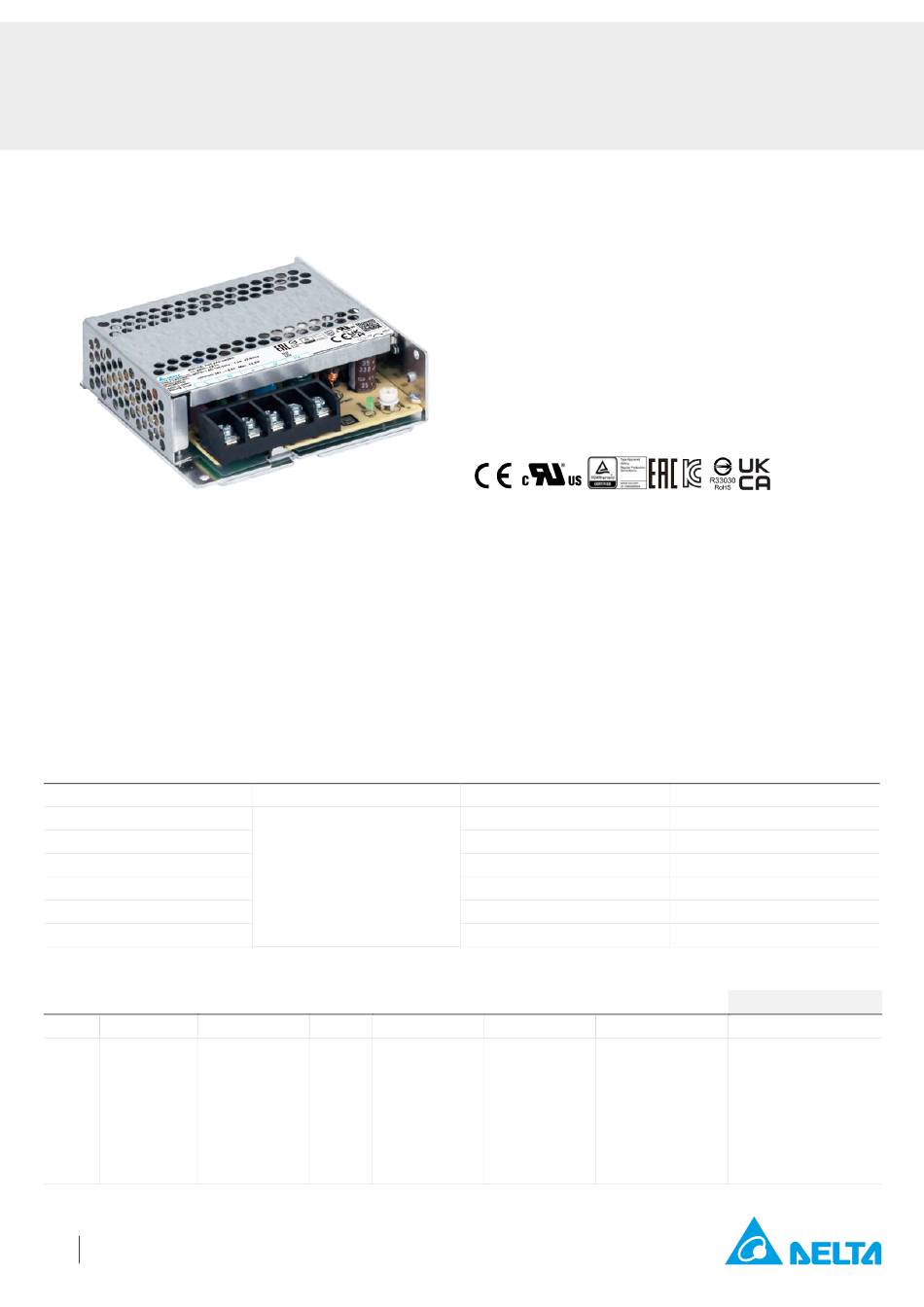

TECHNICAL DATASHEET
PMT2 Panel Mount Power Supply
PMT2 75 W series / PMT-□V75W2B□□
General Description
PMT 2
nd
generation (PMT2) power supplies is designed in a low 30 mm profile and accepts universal AC input. The highly efficient
convection cooling construction can operate from -30°C to 70°C. The single output model is competitively priced for general industrial
and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN/UL
62368-1.
Model Information
PMT2 Panel Mount Power Supply
Model Number
PMT-12V75W2B☐☐
PMT-15V75W2B☐☐
PMT-24V75W2B☐☐
PMT-30V75W2B☐☐
PMT-36V75W2B☐☐
PMT-48V75W2B☐☐
Model Numbering
PM
T –
□V
Panel
Product Type
Output Voltage
Mount
T – Enclosed
12 – 12 V
15 – 15 V
24 – 24 V
30 – 30 V
36 – 36 V
48 – 48 V
*1 : 12 V / 24 V models only
All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated.
1
www.DeltaPSU.com (July 2022, Rev. 07)
Input Voltage Range
90-264 Vac
75W
2
Output
Single Phase
Power
with Low Profile
PMT2
Highlights & Features
Household appliance approvals to IEC/EN 60335-1,
IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage range
No load power consumption < 0.3W
Low profile design : 30mm height
OVC III, Pollution Degree 3
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
Compliance with SEMI-F47
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x H):
Rated Output Voltage
12 Vdc
15 Vdc
24 Vdc
30 Vdc
36 Vdc
48 Vdc
B
Family Code: B
Connector Type
With No PFC
A – Terminal Block
PMT-☐V75W2B☐☐
0.216 kg (0.477 lb)
99 x 97 x 30 mm
(3.9 x 3.82 x 1.18 inch)
Rated Output Current
6.0 A
5.0 A
3.2 A
2.5 A
2.1 A
1.6 A
CC code
Blank – Without
connector cover &
coating
B – With single side
coating*
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMT2 75 W Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta PMT2 75 W Series

  • Page 1 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ PMT2 Highlights & Features Household appliance approvals to IEC/EN 60335-1, • IEC/EN 61558-1 and IEC/EN 61558-2-16 Universal AC input voltage range • • No load power consumption < 0.3W •...
  • Page 2: Specifications

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Specifications PMT-12V75W2B PMT-15V75W2B PMT-24V75W2B PMT-30V75W2B PMT-36V75W2B PMT-48V75W2B Model Number ☐☐ ☐☐ ☐☐ ☐☐ ☐☐ ☐☐ Input Ratings / Characteristics Nominal Input Voltage 100-240 Vac Input Voltage Range...
  • Page 3 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Mechanical Case Chassis Aluminum Case Cover SGCC Dimensions (L x W x H) 99 x 97 x 30 mm (3.9 x 3.82 x 1.18 inch) Unit Weight 0.216 kg (0.477 lb)
  • Page 4 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Safety Standards / Directives Safety Entry Low Voltage SELV Electrical Safety TUV Bauart EN 62368-1, EN 60335-1, EN 61558-1/-2-16 UL/cUL UL 62368-1, and CAN/CSA C22.2 No. 62368-1...
  • Page 5: Block Diagram

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Block Diagram Transformer & Power Stage AC/DC Converter DC/DC & Inrush current Output Rectifier EMI Filter DC Output Converter limit Filter & Filter Over Temperature Photo Coupler &...
  • Page 6 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Dimensions L x W x H : 99 x 97 x 30 mm (3.9 x 3.82 x 1.18 inch) Wire AWG Table Current rating for PVC Wire AWG 6 AWG 52.5 A...
  • Page 7: Engineering Data

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Engineering Data Output Load De-rating VS Surrounding Air Temperature Note Power supply components may degrade, or be damaged, when the power supply is continuously used outside the shaded region, refer to the graph shown in Fig.
  • Page 8: Assembly And Installation

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Assembly & Installation Ⓐ Mounting holes for power supply assembly onto the mounting surface. The power supply shall be mounted on minimum 2 mounting holes using M3 screw minimum 5 mm (0.20 inch) length.
  • Page 9 Mounting Screw Safety Instructions • If user’s mounting orientation is not according to the recommended mounting orientations, please consult Delta for further information. • To ensure sufficient convection cooling, always maintain a safety distance of ≥ 50 mm (1.97 inch) from all ventilated surfaces while the device is in operation.
  • Page 10 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 75 W series / PMT-□V75W2B□□ Functions Start-up Time The time required for the output voltage to reach 90% of its final steady state set value, after the input voltage is applied. Rise Time The time required for the output voltage to change from 10% to 90% of its final steady state set value.
  • Page 11 Attention Delta provides all information in the datasheets on an “AS IS” basis and does not offer any kind of warranty through the information for using the product. In the event of any discrepancy between the information in the catalog and datasheets, the datasheets shall prevail (please refer to www.DeltaPSU.com for the latest datasheets information).
