Delta LYTE DRL-24V240W1A Series Technical Data Sheet

TECHINCAL DATASHEET
LYTE DIN Rail Power Supply
24 V 240 W 1 Phase / DRL-24V240W1A

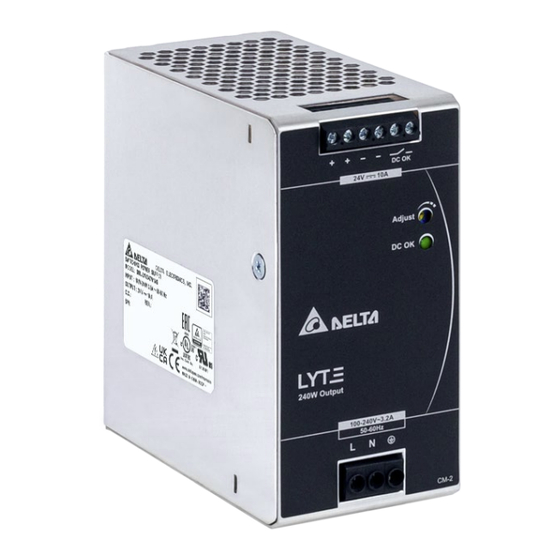

*This picture is for reference to DRL-24V240W series only.
General Description
Delta's LYTE DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many
general industrial applications, without compromising on quality and reliability. The convection-cooled LYTE series will operate
between -20°C to +70°C, with full rated power available from -10°C to +50°C at 230 Vac. The overcurrent protection is designed to
operate in constant current mode, which makes the LYTE series suitable for inductive and capacitive load applications. The product is
certified according to safety standards IEC/EN/UL 60950-1 & IEC/EN/UL 62368-1 for Information Technology Equipment (ITE) and
UL 508 for Industrial Control Equipment (ICE). Electromagnetic radiated and conducted emissions are compliant to EN 55032, Class B;
and, the product is RoHS compliant for environmental protection.
Model Information
LYTE DIN Rail Power Supply
Model Number
DRL-24V240W1A
Model Numbering
DR L –
DIN Rail Product Type
L – LYTE Series
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (February 2022, Rev. 06)
Arrow.com.
Downloaded from
Input Voltage Range
85-264 Vac (120-375 Vdc)
24V
240W
Output Voltage Output Power
Highlights & Features
Universal AC input voltage
•
• Built-in constant current circuit for reactive loads
Up to 90.0% efficiency
•
• Full power from -20°C to +50°C operation at 230 Vac
@ 5,000 meters or 16,400 feet altitude
• Built-in DC OK relay contact option available
Compliance to SEMI F47 @ 200 Vac
•
• Conformal coating on PCBAs to protect against common
dust and chemical pollutants
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (H x W x D):
Rated Output Voltage
24 Vdc
1 A
Single Phase Delta
Standard
DRL-24V240W1A
0.80 kg (1.76 lb)
123.6 x 60 x 117.6 mm
(4.87 x 2.36 x 4.63 inch)
Rated Output Current
10.0 A

A – Without DC OK Contact
S – With DC OK Relay Contact
