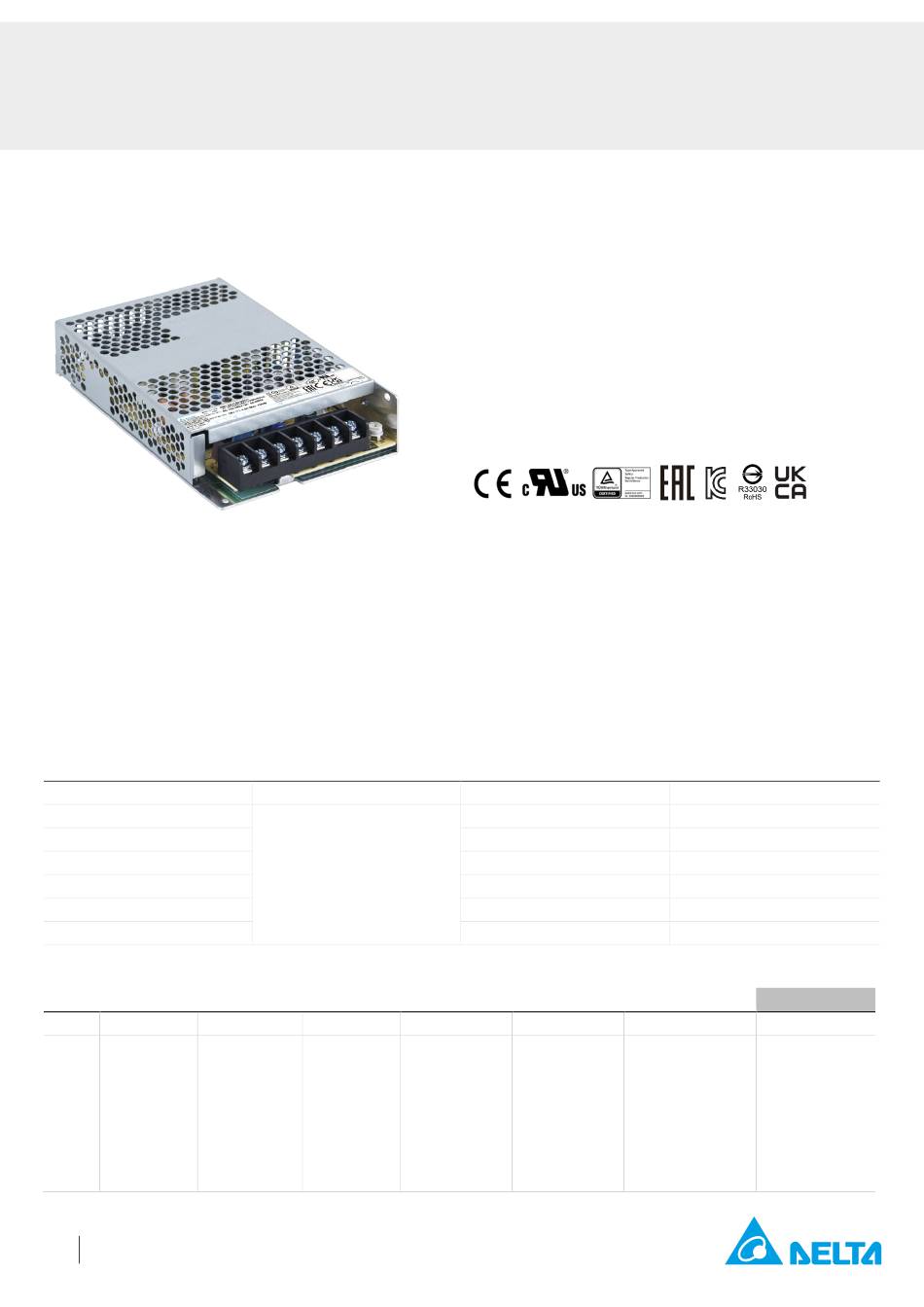

TECHNICAL DATASHEET

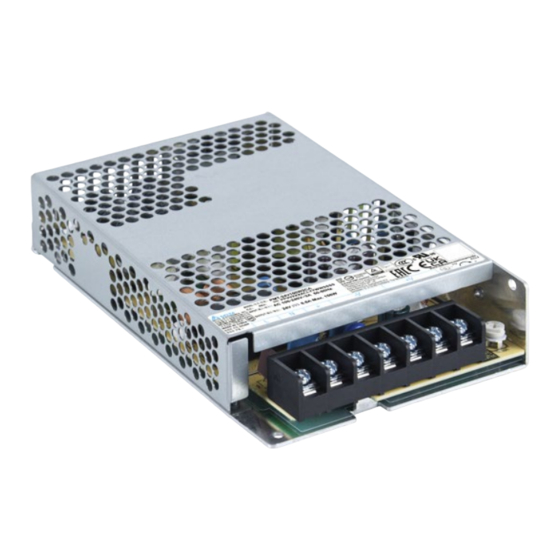

PMT2 Panel Mount Power Supply
PMT2 150W series / PMT-□V150W2C□□
General Description
PMT 2
nd
generation (PMT2) power supplies is designed in a low 30mm profile and accepts universal AC input. The highly efficient
convection cooling construction can operate from -30°C to 70°C. The single output model is competitively priced for general industrial
and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN/UL
62368-1.
Model Information
PMT2 Panel Mount Power Supply
Model Number
PMT-12V150W2C☐☐
PMT-15V150W2C☐☐
PMT-24V150W2C☐☐
PMT-30V150W2C☐☐
PMT-36V150W2C☐☐
PMT-48V150W2C☐☐
Model Numbering
PM
T –
□V
Panel
Product Type
Output Voltage
Mount
T – Enclosed
12 – 12 V
15 – 15 V
24 – 24 V
30 – 30 V
36 – 36 V
48 – 48 V
*1 : 12 V / 24 V models only
All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated.
1
www.DeltaPSU.com (September. 2022, Rev. 02)
Input Voltage Range
90-264 Vac
150W
2
Output Power Single Phase
with Low Profile
PMT2
Highlights & Features
Household appliance approvals according to IEC/EN
60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage range
No load power consumption < 0.3 W
Low profile design: 30 mm height
OVC III, Pollution Degree 3
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
Compliance with SEMI-F47
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x H):
Rated Output Voltage
12 Vdc
15 Vdc
24 Vdc
30 Vdc
36 Vdc
48 Vdc
C
Family Code: C
Connector Type
With No PFC, &
A – Terminal Block
Full range AC
Input
PMT-☐V150W2C☐☐
0.392 kg (0.864 lb)
159 x 97 x 30 mm
(6.26 x 3.82 x 1.18 inch)
Rated Output Current
12.5 A
10.0 A
6.5 A
5.0 A
4.3 A
3.3 A
CC code
Blank – Without
connector cover &
coating.
B – With single
side coating.*
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMT2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delta PMT2 Series

  • Page 1 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ PMT2 Highlights & Features Household appliance approvals according to IEC/EN • 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16 Universal AC input voltage range • • No load power consumption < 0.3 W •...
  • Page 2: Specifications

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Specifications PMT-12V150W2C PMT-15V150W2C PMT-24V150W2C PMT-30V150W2C PMT-36V150W2C PMT-48V150W2C Model Number ☐☐ ☐☐ ☐☐ ☐☐ ☐☐ ☐☐ Input Ratings / Characteristics Nominal Input Voltage 100-240 Vac Input Voltage Range 90-264 Vac Nominal Input Frequency 50-60 Hz Input Frequency Range...
  • Page 3 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Mechanical Case Chassis Aluminum Case Cover SGCC Dimensions (L x W x H) 159 x 97 x 30 mm (6.26 x 3.82 x 1.18 inch) Unit Weight 0.392 kg (0.864 lb) Indicator Green LED (DC OK) Cooling System...
  • Page 4 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Safety Standards / Directives Safety Entry Low Voltage SELV Electrical Safety TUV Bauart EN 62368-1, EN 60335-1, EN 61558-1/-2-16 cULus UL 62368-1, and CAN/CSA C22.2 No. 62368-1 CB scheme IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16 GB 4943 (design compliance) K 60950-1 (12 &...
  • Page 5: Block Diagram

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Block Diagram Device Descriptions Input & Output terminal block connector DC voltage adjustment potentiometer DC OK control LED (Green) All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated. www.DeltaPSU.com (September.
  • Page 6 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Dimensions L x W x H: 159 x 97 x 30 mm (6.26 x 3.82 x 1.18 inch) Wire AWG Table Current rating for PVC Wire AWG 6AWG 52.5A 20AWG 6.5A...
  • Page 7: Engineering Data

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Engineering Data Output Load De-rating VS Surrounding Air Temperature Note Power supply components may degrade, or be damaged, when the power supply is continuously used outside the shaded region, refer to the graph shown in Fig.
  • Page 8: Assembly And Installation

    TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Assembly & Installation Ⓐ Mounting holes for power supply assembly onto the mounting surface. The power supply shall be mounted on minimum 2 mounting holes using M3 screw minimum 5 mm (0.20 inch) length. Ⓑ...
  • Page 9 Fig. 4 Mounting Screw Safety Instructions If user’s mounting orientation is not according to the recommended mounting orientations, please consult Delta for further • information. To ensure sufficient convection cooling, always maintain a safety distance of ≥ 50 mm (1.97 inch) from all ventilated surfaces while •...
  • Page 10 TECHNICAL DATASHEET PMT2 Panel Mount Power Supply PMT2 150W series / PMT-□V150W2C□□ Inrush Current Dynamic Response Inrush current is the peak, instantaneous, input current measured The power supply output voltage will remains within ± 10% of its and, occurs when the input voltage is first applied. For AC input steady state value, when subjected to a dynamic load from 0% voltages, the maximum peak value of inrush current will occur 10% to 100%...
  • Page 11 Attention Delta provides all information in the datasheets on an “AS IS” basis and does not offer any kind of warranty through the information for using the product. In the event of any discrepancy between the information in the catalog and datasheets, the datasheets shall prevail (please refer to www.DeltaPSU.com for the latest datasheets information).
