Delta PMT2 Series Instruction Manual

1. Safety Instructions
• If user's mounting orientation is not according to the recommended mounting orientations, please consult Delta for further information.
• To ensure sufficient convection cooling, always maintain a safety distance of ≥ 50mm (1.97 inch) from all ventilated surfaces while the
device is in operation.
• The device is not recommended to be placed on low thermal conductive surface. For example, plastics.
• The enclosure of the device can become very hot depending on the ambient temperature and load of the power supply.
Do not touch the device while it is in operation or immediately after power is turned OFF. Risk of burning!
• Do not touch the terminals while power is being supplied. Risk of electric shock.
• Prevent any foreign metal, particles or conductors from entering the device through the openings during installation.
It may cause: Electric shock; Safety Hazard; Fire; Product failure
• The power supply must be mounted by metal screws onto a grounded metal surface. It is highly recommended that the Earth terminal on
the connector be connected to the grounded surface.

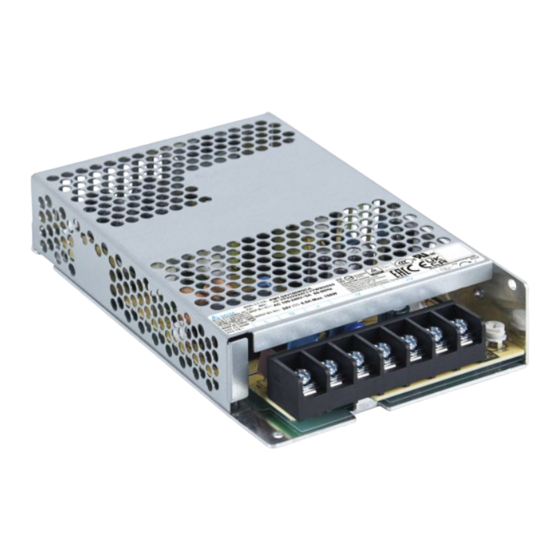

2. Device Descriptions
► (Refer to Fig. 1.1)
䐟 Input & Output terminal block connector
䐠 DC voltage adjustment potentiometer
䐡 DC OK control LED (Green)
PMT-□V35W2B□, PMT-□V50W2B□
► (Refer to Fig. 1.2)
① Input & Output terminal block connector
② DC voltage adjustment potentiometer
③ DC OK control LED (Green)
④ AC selectable switch
PMT-□V150W2B□, PMT-□V150W2C□
www.DeltaPSU.com
Terminal Block
PMT-□V75W2B□

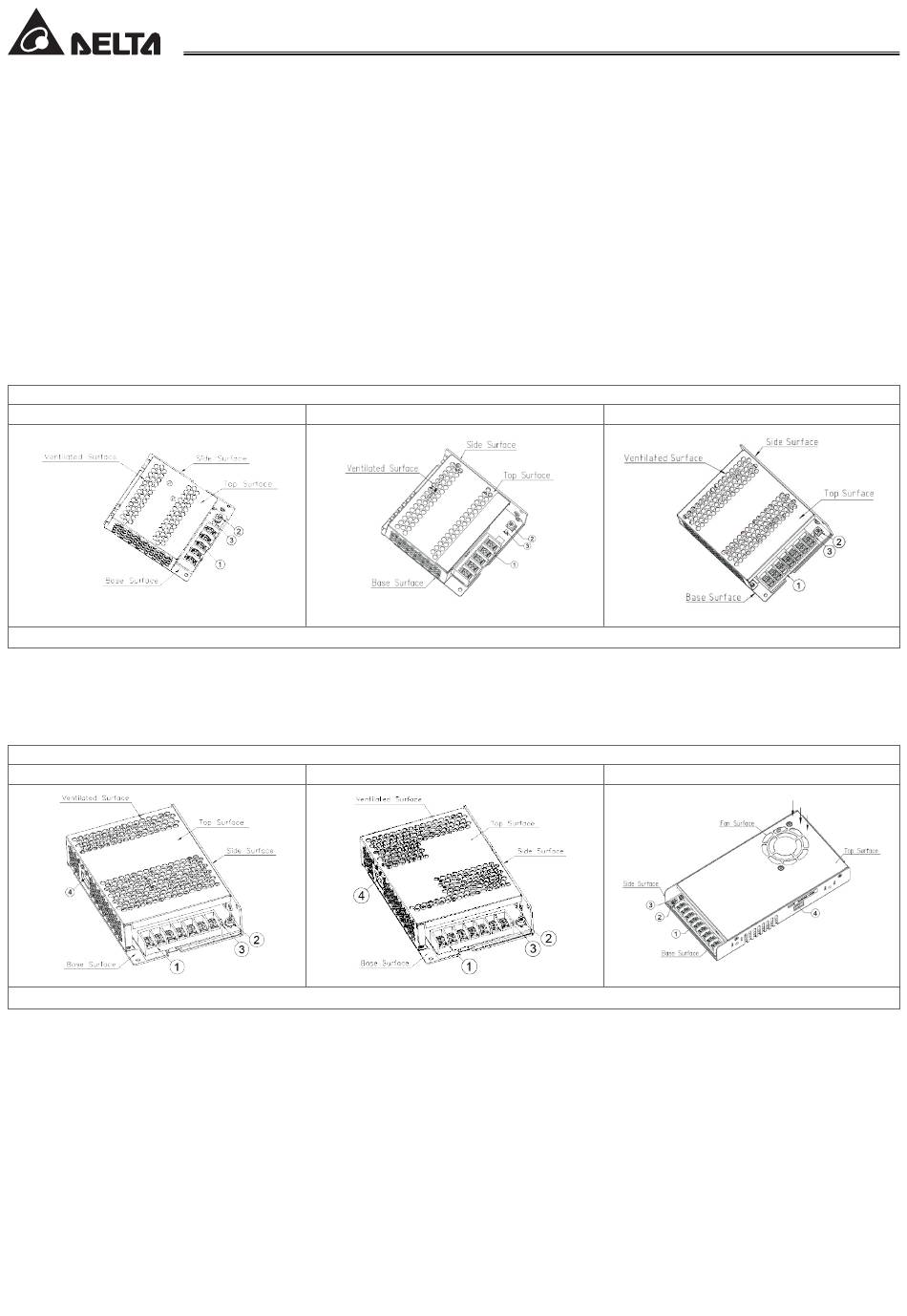

Fig. 1.1 Device Descriptions
Terminal Block
PMT-□V200W2BR
Fig. 1.2 Device Descriptions
Instruction Manual
PMT-D□V75W2□A, PMT-□V100W2B□
PMT-□V350W2BR
PMT2 series
REV.00
