Delta PMT2 150 W Series Technical Data Sheet

TECHNICAL DATASHEET

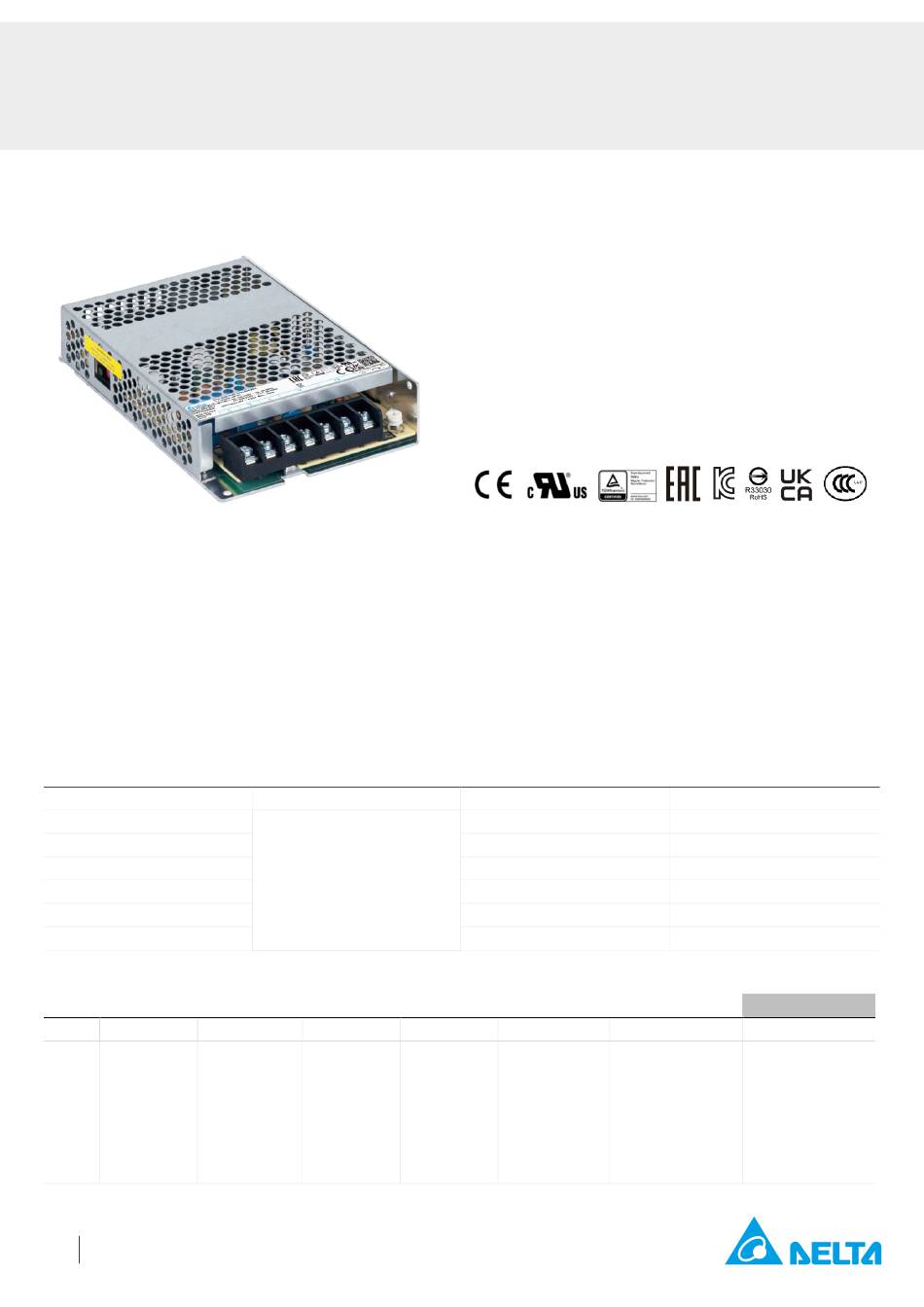

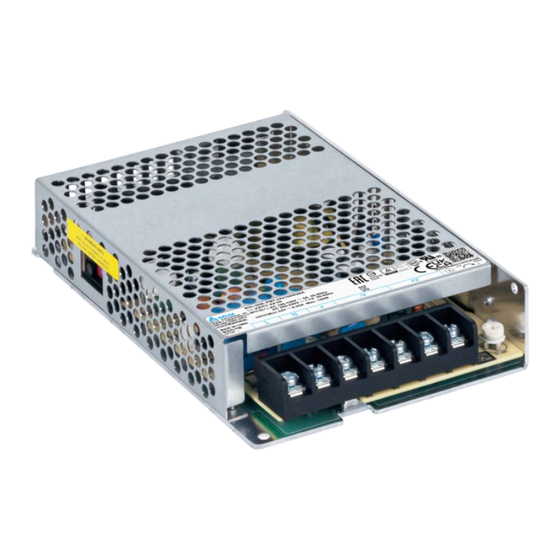

PMT2 Panel Mount Power Supply
PMT2 150 W series / PMT-□V150W2B□□
General Description
PMT 2 generation (PMT2) power supplies is designed in a low 30 mm profile and accepts universal AC input. The highly efficient
nd
convection cooling construction can operate from -30°C to 70°C. The single output model is competitively priced for general industrial
and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN UL
62368-1.
Model Information
PMT2 Panel Mount Power Supply
Model Number
PMT-12V150W2B☐☐
PMT-15V150W2B☐☐
PMT-24V150W2B☐☐
PMT-30V150W2B☐☐
PMT-36V150W2B☐☐
PMT-48V150W2B☐☐
Model Numbering
PM T –
□V
Panel Product Type Output Voltage
Mount
T – Enclosed 12 – 12 V
15 – 15 V
24 – 24 V
30 – 30 V
36 – 36 V
48 – 48 V
*1 : 12 V / 24 V models only
All parameters are specified at 25°C ambient and nominal AC input unless otherwise indicated.
1
www.DeltaPSU.com (April 2023, Rev. 12)
Input Voltage Range
90-132 Vac, 180-264 Vac
(Selectable by Switch)
150W 2
Output Power Single Phase
with Low
Profile
PMT2
Highlights & Features
Household appliance approvals according to IEC/EN 60335-1,
•
IEC/EN 61558-1 and IEC/EN 61558-2-16
AC input voltage range selectable by switch (90-132 Vac,
•
180-264 Vac)
No load power consumption < 0.5 W
•
• Low profile design: 30mm height
OVC III, Pollution Degree 3
•
• Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
•
• High MTBF > 700,000 hrs per Telcordia SR-332
Safety Standards
Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x H):
Rated Output Voltage
12 Vdc
15 Vdc
24 Vdc
30 Vdc
36 Vdc
48 Vdc
B
□
Family Code: B Connector Type
With No PFC A – Terminal Block
PMT-☐V150W2B☐☐
0.354 kg (0.78 lb)
159 x 97 x 30 mm
(6.26 x 3.82 x 1.18 inch)
Rated Output Current
12.5 A
10.0 A
6.25 A
5.0 A
4.3 A
3.3 A
CC code
□
Blank – Without
connector cover &
coating
B – With single side
coating* 1
