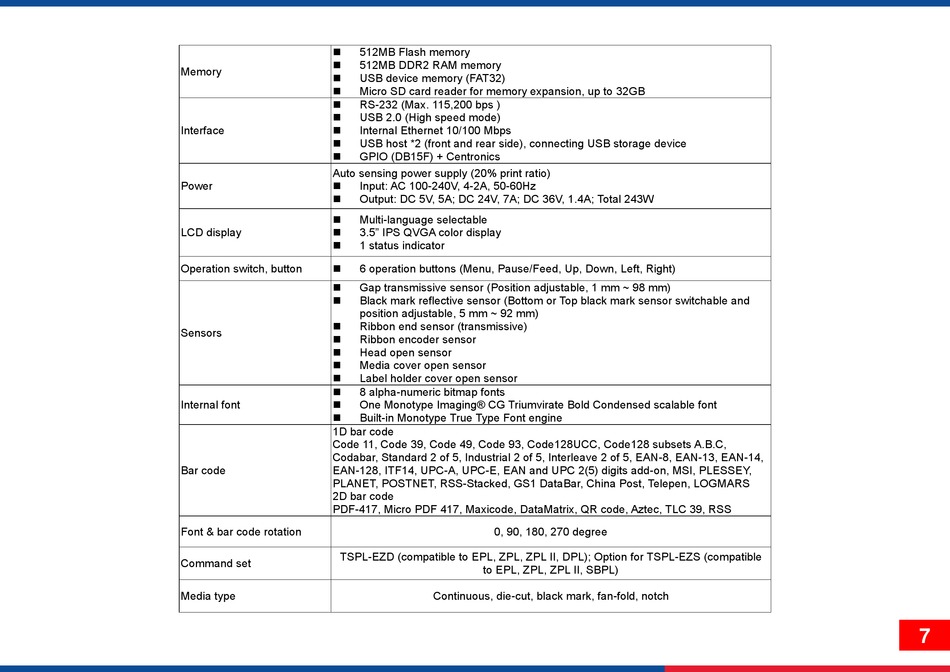

◼ 512MB Flash memory
◼ 512MB DDR2 RAM memory
Memory
◼ USB device memory (FAT32)
◼ Micro SD card reader for memory expansion, up to 32GB
◼ RS-232 (Max. 115,200 bps )
◼ USB 2.0 (High speed mode)
Interface ◼ Internal Ethernet 10/100 Mbps
◼ USB host *2 (front and rear side), connecting USB storage device
◼ GPIO (DB15F) + Centronics
Auto sensing power supply (20% print ratio)
Power ◼ Input: AC 100-240V, 4-2A, 50-60Hz
◼ Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
◼ Multi-language selectable
LCD display ◼ 3.5" IPS QVGA color display
◼ 1 status indicator
Operation switch, button ◼ 6 operation buttons (Menu, Pause/Feed, Up, Down, Left, Right)
◼ Gap transmissive sensor (Position adjustable, 1 mm ~ 98 mm)
◼ Black mark reflective sensor (Bottom or Top black mark sensor switchable and
position adjustable, 5 mm ~ 92 mm)
◼ Ribbon end sensor (transmissive)
Sensors
◼ Ribbon encoder sensor
◼ Head open sensor
Media cover open sensor
◼
◼ Label holder cover open sensor
◼ 8 alpha-numeric bitmap fonts
Internal font ◼ One Monotype Imaging® CG Triumvirate Bold Condensed scalable font
◼ Built-in Monotype True Type Font engine
1D bar code
Code 11, Code 39, Code 49, Code 93, Code128UCC, Code128 subsets A.B.C,
Codabar, Standard 2 of 5, Industrial 2 of 5, Interleave 2 of 5, EAN-8, EAN-13, EAN-14,
Bar code EAN-128, ITF14, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY,
PLANET, POSTNET, RSS-Stacked, GS1 DataBar, China Post, Telepen, LOGMARS
2D bar code
PDF-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSS
Font & bar code rotation
TSPL-EZD (compatible to EPL, ZPL, ZPL II, DPL); Option for TSPL-EZS (compatible
Command set
Media type
0, 90, 180, 270 degree
to EPL, ZPL, ZPL II, SBPL)
Continuous, die-cut, black mark, fan-fold, notch
