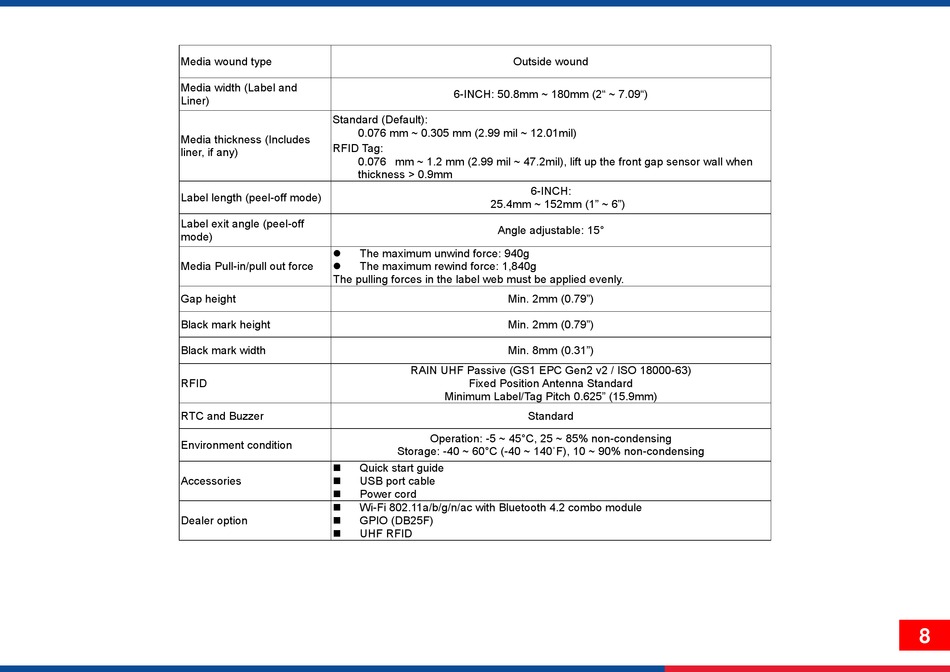

Media wound type
Media width (Label and
Liner)
Standard (Default):
0.076 mm ~ 0.305 mm (2.99 mil ~ 12.01mil)
Media thickness (Includes
RFID Tag:
liner, if any)
0.076 mm ~ 1.2 mm (2.99 mil ~ 47.2mil), lift up the front gap sensor wall when
thickness > 0.9mm
Label length (peel-off mode)
Label exit angle (peel-off
mode)
⚫ The maximum unwind force: 940g
Media Pull-in/pull out force ⚫ The maximum rewind force: 1,840g
The pulling forces in the label web must be applied evenly.
Gap height
Black mark height
Black mark width
RFID
RTC and Buzzer
Environment condition
◼ Quick start guide
Accessories ◼ USB port cable
◼ Power cord
◼ Wi-Fi 802.11a/b/g/n/ac with Bluetooth 4.2 combo module
Dealer option ◼ GPIO (DB25F)
◼ UHF RFID
Outside wound
6-INCH: 50.8mm ~ 180mm (2" ~ 7.09")
6-INCH:
25.4mm ~ 152mm (1" ~ 6")
Angle adjustable: 15°
Min. 2mm (0.79")
Min. 2mm (0.79")
Min. 8mm (0.31")
RAIN UHF Passive (GS1 EPC Gen2 v2 / ISO 18000-63)
Fixed Position Antenna Standard
Minimum Label/Tag Pitch 0.625" (15.9mm)
Standard
Operation: -5 ~ 45°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C (-40 ~ 140˚F), 10 ~ 90% non-condensing
