2.2 Print Engine Orientation

The PEX-2000 series are available in a left-hand configuration and a right-hand configuration.

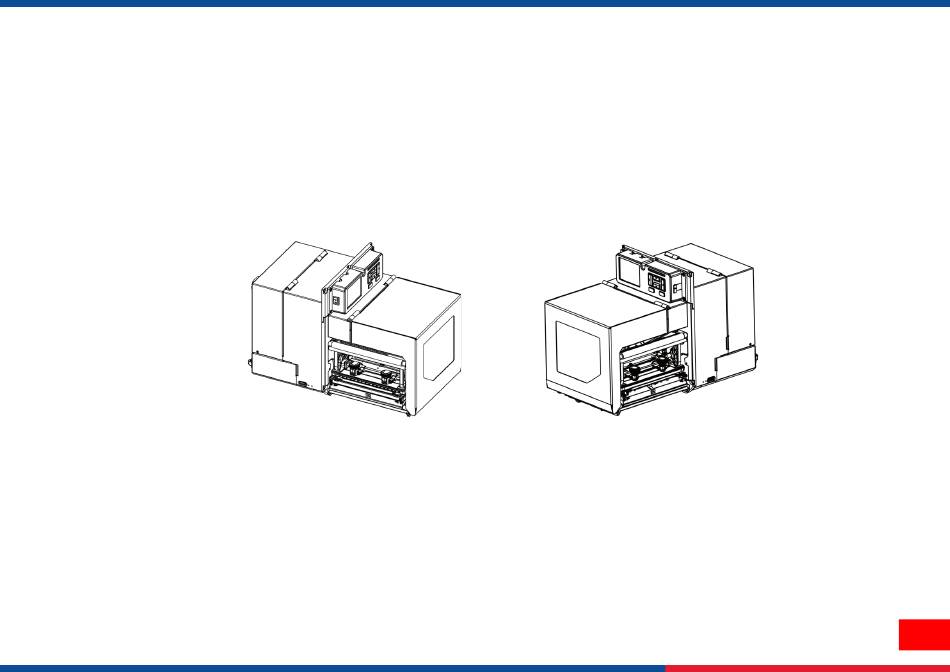

PEX-2XX0L series PEX-2XX0R series
Left-hand model Right-hand model
Note:
This document is going to show the components inside the media compartment of a left-hand print engine. A right-hand unit
contains a mirror image of those components. Familiarize yourself with these components before continuing with the print
engine setup procedure.
