total sheds Pent Summer Shed 14x8ft Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

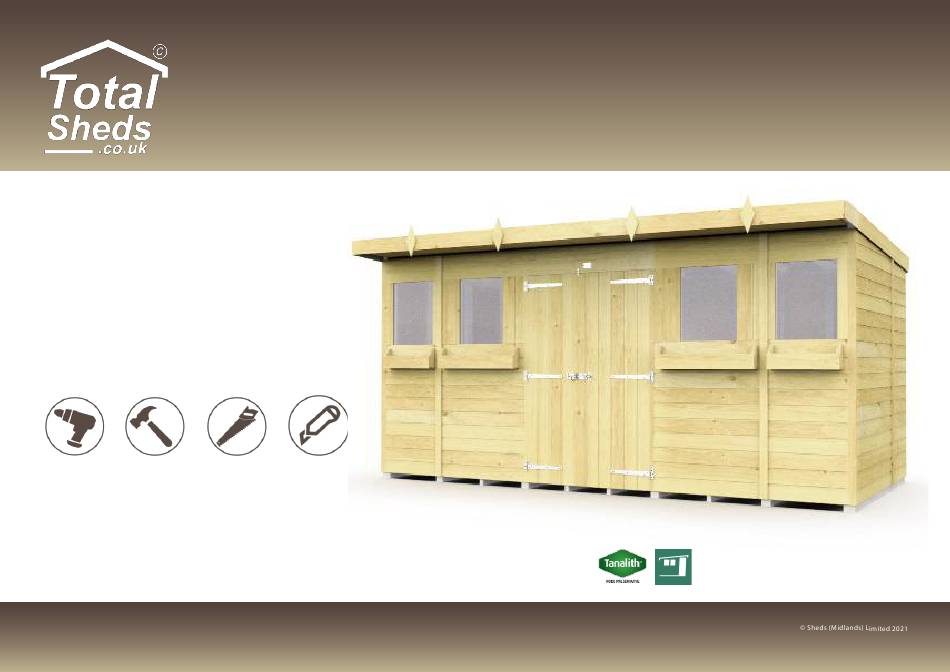

Pent Summer Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 8ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed
Featured Build of the Pent 14x8ft Summer Shed
Includes 4x8ft to 20x8ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pent Summer Shed 14x8ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Pent Summer Shed 14x8ft

Summary of Contents for total sheds Pent Summer Shed 14x8ft

  • Page 1 Pent Summer Shed Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 8ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.

  • Page 2: Pre-Assembly

    PRE-ASSEMBLY PRE-ASSEMBLY 4ft & 4ft FLOOR PANEL Unpacking your Parts Turn all floor panels Unpack all of the components and check that upside down so frame you have all the parts required. Please use the checklist on previous page. posts are exposed. Carefully dispose of the delivery pallet and any excess timber.
  • Page 3 PRE-ASSEMBLY STEP • 1 4ft & 4ft ROOF PANEL Recommended: Paint shed in an oil based treatment to Turn all roof panels prevent water ingress into upside down so frame the timber. Also silicon your posts are exposed. windows (Must silicon inside & outside) to prevent rain water seeping through the gaps...
  • Page 4 STEP • 2 STEP • 3 IMPORTANT 4ft RIGHT SIDE PANEL All Sheds With 3 or Place first panel againts More Floor Pannels far right of shed floor have the smallest Floor as shown. Panel on the End. (4ft wide blank panel) As shown on this diagram.
  • Page 5 STEP • 4 STEP • 5 4ft SIDE PANEL SIDE & REAR PANELS Place first panel againts Fix 2ft Wide Blank far right of shed floor Sections. Create a Corner as shown. for Balance. (4ft wide blank panel) 4ft SIDE PANEL SIDE &...
  • Page 6 STEP • 6 STEP • 7 4ft REAR PANEL 3ft REAR PANELS Fix 3ft Wide Blank Section Fix 4ft Wide Blank Section Back Panel 3ft Section Back Panel 4ft (Middle) 3ft REAR PANEL 4ft REAR PANEL 6a. Now place a 3ft Blank 7a.
  • Page 7 STEP • 8 STEP • 9 4ft LEFT SIDE PANEL 4ft LEFT SIDE PANEL Attach 4ft Blank Section Now attach Left Side to the Left Side Wall Panel (4ft wide section) 4ft LEFT SIDE PANEL 4ft LEFT SIDE PANEL 8a. Place the 4ft Blank Panel 9a.
  • Page 8 STEP • 10 STEP •11 FRONT WINDOW FRONT WINDOW PANEL PANEL Attach Second Front Attach First Front Panel Window Panel (2ft Window Panel) (3ft Window Panel) 2ft FRONT WINDOW PANEL 3ft FRONT WINDOW PANEL 10a. Start back from the Right side placing the 2ft DO NOT screw the standing panels 11a.
  • Page 9 STEP • 12 STEP • 13 FRONT DOOR PANEL FRONT WINDOW PANELS Attach Door Front Panel (4ft Door Panel) Attach Last Front Panel (2ft + 3ft Door Panel) 3ft WINDOW PANELS FRONT DOOR PANEL 12a. Now place the 4ft Door Panel as DID YOU KNOW? 13a.
  • Page 10 STEP • 14 STEP •15 PENT FRONT TOPS SIDE PENT ANGLE TOPS Place the front tops of Now attach all the 8ft shed. Use 2ft Section for Side Tops of Pent Shed below models. End Panels. (Over the top of both side panels). SIDE PENT ANGE TOPS PENT FRONT TOPS 14b.
  • Page 11 STEP • 16 STEP • 17 PENT ROOF PANELS SIDE & CORNER STRIPS Hide the panel edges. Place First roof section. Repeat for all Roof Panels Cover the framework & seams. (2ft, 3ft, 4ft) PENT ROOF PANELS SIDE & CORNER STRIPS 17a.
  • Page 12 STEP • 18 STEP •19 PENT ROOF CUTTING THE ROOF OVERHANGS FELT Place First Overhang Use the felt table to cut Section. Repeat for all your felt to the correct Roof Overhangs size (2ft, 3ft, 4ft) PENT ROOF OVERHANGS CUTTING THE ROOF FELT 18a.
  • Page 13 STEP • 20 STEP • 21 ATTACH THE ROOF FELT ATTACH FELT STRIPS Use the felt lengths Create the Final Roof provided. Edges. Final steps finishing off the roof. FELT STRIPS ROOF FELT 20a. Apply the roof felt as shown. Apply lower levels first to create 21a.
  • Page 14 ATTACH PLANTERS DIAMOND CAPS Attach Planter Boxes. Add the Finishing Final steps finishing off Touch. (Optional) the Summer Shed. Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk PLANTER BOXES DIAMOND CAPS INFORMATION 17a.
