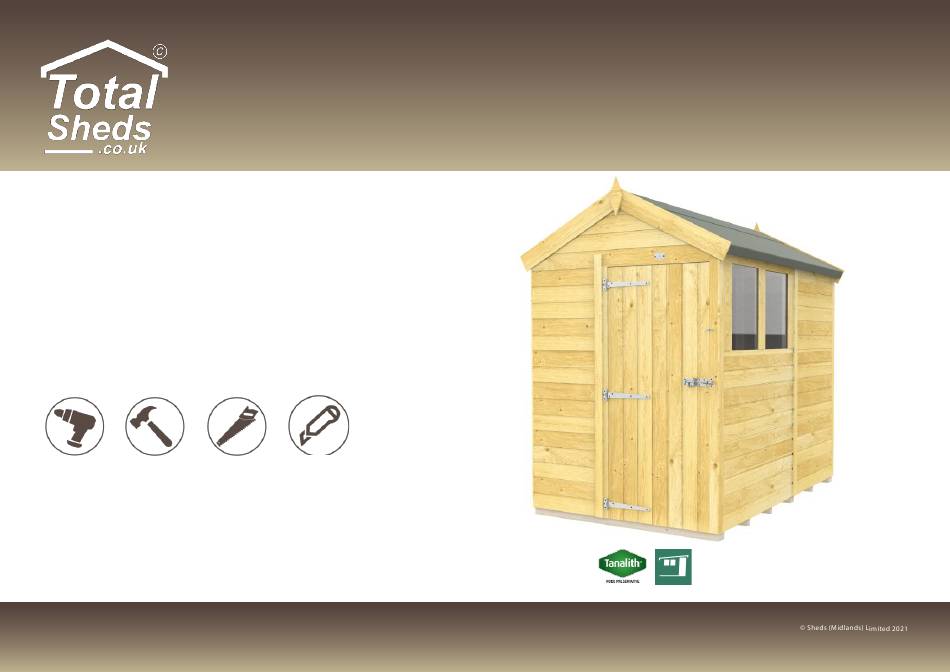

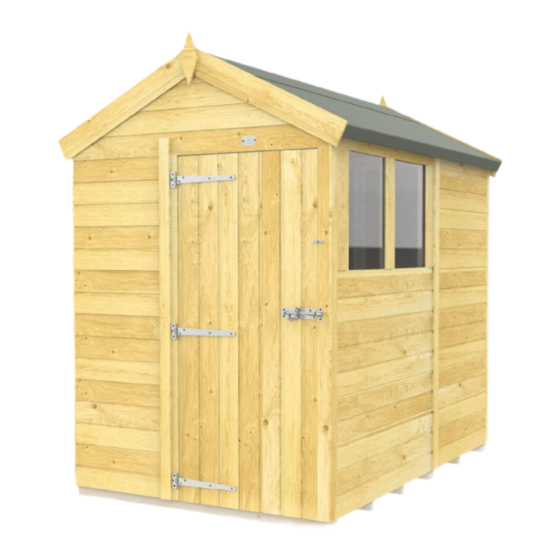

Apex Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 6ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed
Featured Build of the Apex 6ft x 7ft Shed
Includes 6x4ft to 6x20ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for total sheds Apex Shed 6ft x 7ft
Summary of Contents for total sheds Apex Shed 6ft x 7ft
- Page 1 Apex Shed Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 6ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.
-
Page 2: Pre-Assembly
PRE-ASSEMBLY STEP • 1 Unpacking your Parts Recommended: Paint shed in an oil based treatment to Unpack all of the components and check that prevent water ingress into you have all the parts required. Please use the checklist on previous page. the timber. - Page 3 STEP • 2 STEP • 3 IMPORTANT 2ft RIGHT SIDE PANEL All Sheds With 4 or More Place first panel againts Floor Pannels have the far right of shed floor smallest Floor Panel as shown. located at the back. (2ft wide blank panel) As shown on this diagram.
- Page 4 STEP • 4 STEP • 5 4ft SIDE PANEL SIDE & REAR PANELS Place second panel againts Fix 3ft Wide Blank far right of back of the shed Sections. Create a Corner floor as shown. (4ft wide for Balance. blank panel) 4ft BACK PANEL SIDE &...
- Page 5 STEP • 6 STEP • 7 3ft RIGHT SIDE PANEL 4ft LEFT PANEL Fix 4ft Wide Blank Section Fix 3ft Wide Blank Section Side Panel 3ft (Right) Left Panel 4ft Section (This panel might be 3ft depending on the shed ) 4ft LEFT PANEL 3ft RIGHT PANEL 6a.
- Page 6 STEP • 8 STEP • 9 FRONT 2ft PANEL RIGHT WINDOW PANEL Attach 2ft Front Panel Attach Window Panel (4ft Window Panel) 4ft RIGHT WINDOW PANEL 2ft FRONT PANEL 8a. Start back from the Right side placing the 4ft DO NOT screw the standing panels 9a.
- Page 7 STEP • 10 STEP •11 FRONT 4ft DOOR APEX ROOF GABLE ENDS PANEL (Set Frame for roof sections) Attach Door Panel Now attach all the 6ft Apex (The 4ft Door panel can be placed Gable Ends Tand the 6ft where ever a 4ft blank panel is Apex Truss located) 6ft APEX ROOF GABLE ENDS...
- Page 8 STEP • 12 STEP •13 SIDE & CORNER STRIPS APEX ROOF PANELS Hide the panel edges. Place 4ft Roof section. Cover the framework & Repeat for all Roof Panels seams. (2ft, 3ft and 4ft) APEX ROOF PANELS PENT FRONT TOPS INFORMATION 13a.
- Page 9 15b. Using a hammer, tack down the felt with the tacks provided in a Example: neat fashion. Apex Shed 6ft x 7ft The 6 by 7 Shed needs 5 sheets of felt. All at 8ft each. Build Depth 4ft (x3)
- Page 10 ATTACH FELT STRIPS DIAMOND CAPS Create the Final Roof Add the Finishing Edges. Final steps Touch. (Optional) finishing off the roof. Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk FELT STRIPS DIAMOND CAPS 16a.
