Apex Potting Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 6ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed

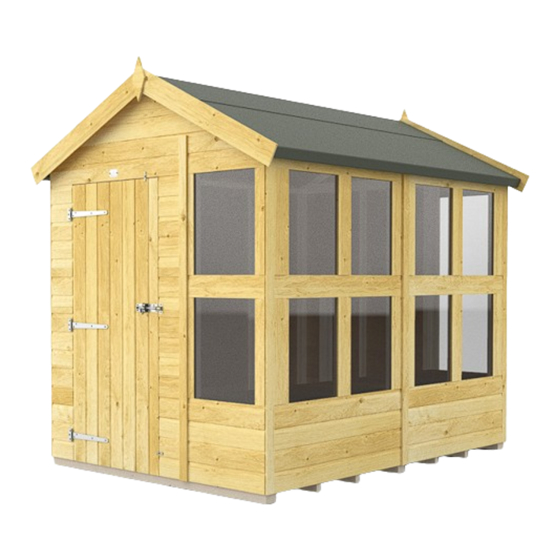

Featured Build of the Apex Potting Shed 6ft x 8ft
Includes 6x4ft to 6x20ft Instructions
STANLEY KNIFE
Total Sheds
28 Charles Street,
Willenhall, WV13 1HG
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.2
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apex Potting Shed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Apex Potting Shed

Summary of Contents for total sheds Apex Potting Shed

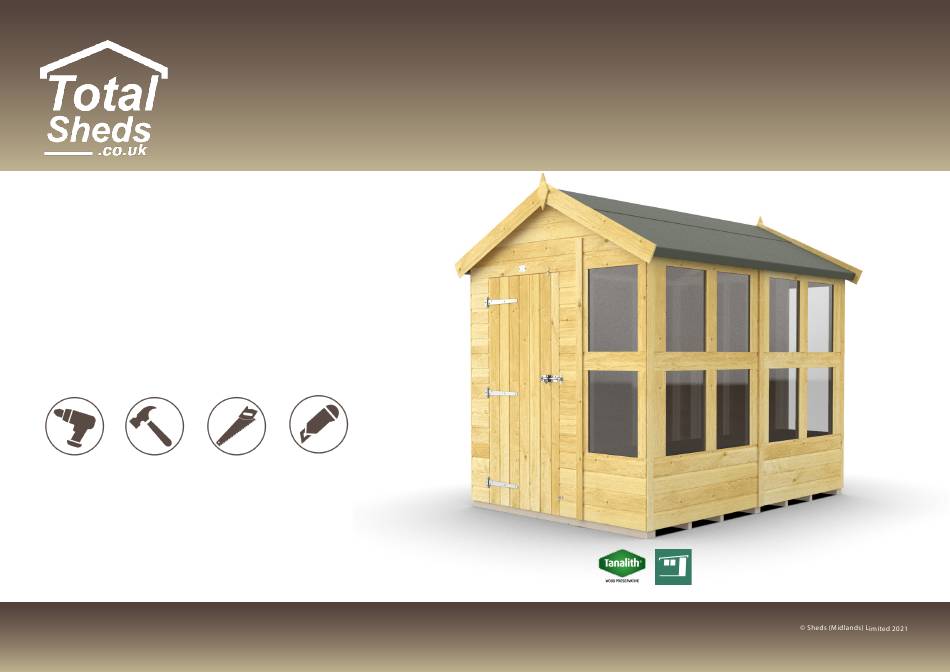

  • Page 1 We are not responsible for any injuries caused whilst assembling this shed. Ready to Build Shed DELIVERED FLAT PACKED IN EASY TO INSTALL SECTIONS www.totalsheds.co.uk Featured Build of the Apex Potting Shed 6ft x 8ft Includes 6x4ft to 6x20ft Instructions...
