Quick Start Guide
IP address, Subnet & Gateway, G-series I/O
SUEN00389A –

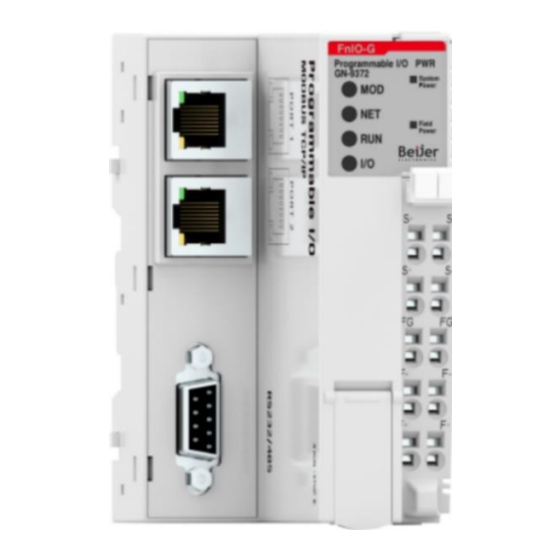

How to set IP address, Subnet Mask and Gateway on
GN-9372

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GN-9372 and is the answer not in the manual?

Questions and answers

Related Manuals for Beijer Electronics GN-9372

Summary of Contents for Beijer Electronics GN-9372

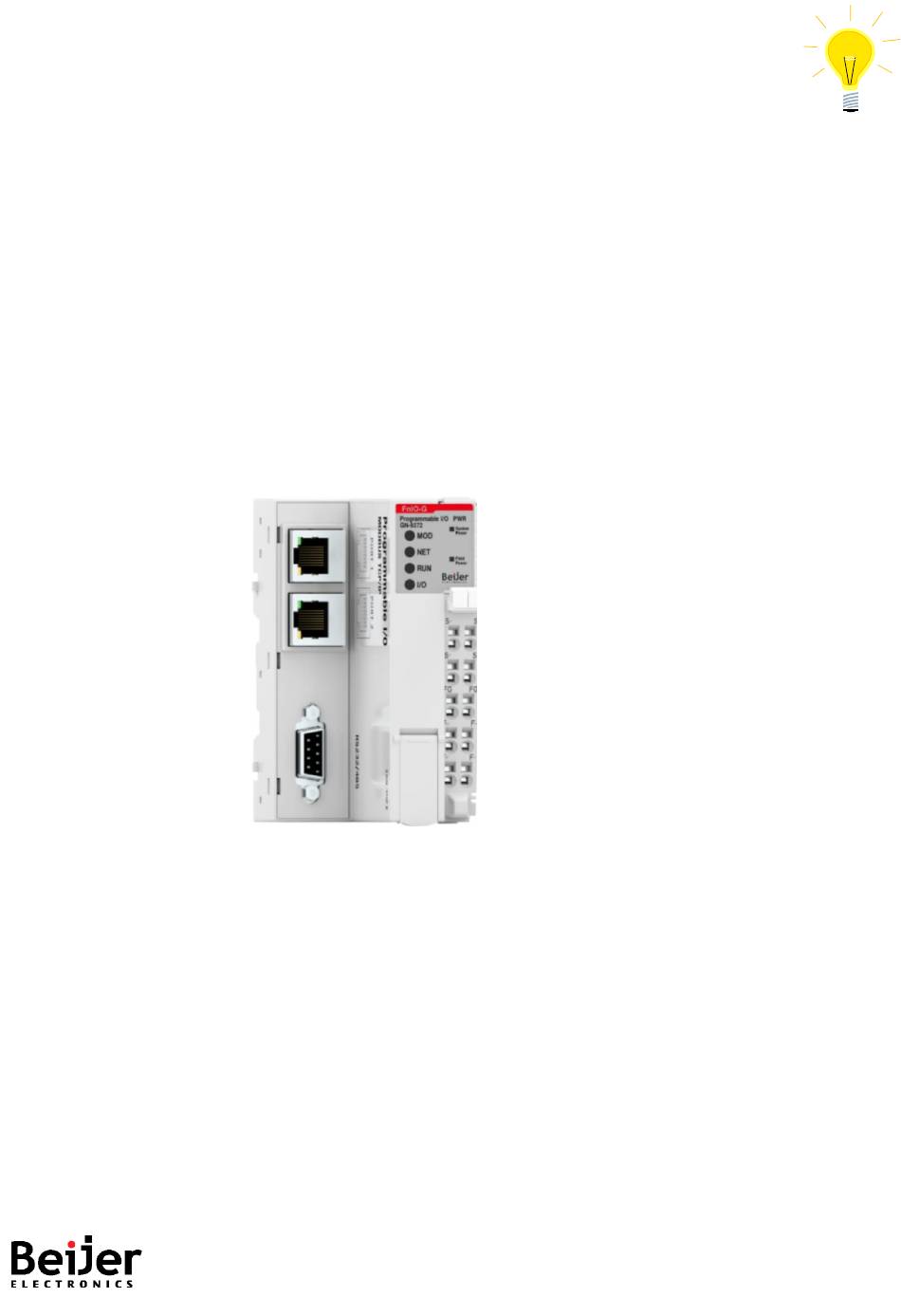

  • Page 1 Quick Start Guide IP address, Subnet & Gateway, G-series I/O SUEN00389A – How to set IP address, Subnet Mask and Gateway on GN-9372...

  • Page 2: Function And Area Of Use

    Startup a normal application quickly and easily. Copyright © Beijer Electronics, 2023 This documentation (below referred to as ‘the material’) is the property of Beijer Electronics. The holder or user has a non-exclusive right to use the material. The holder is not allowed to distribute the material to anyone outside his/her organization except in cases where the material is part of a system that is supplied by the holder to his/her customer.

  • Page 3: Table Of Contents

    1 Function and area of use ..................2 2 About this Startup document ..................2 3 Table of Contents ....................3 4 Setup Network address in PIO (GN-9372) ..............4 Network setting (default) ................. 4 Set the IP address (network) to default setting ............4 Set the IP address (network) using the built-in Web Server .........

  • Page 4: Setup Network Address In Pio (Gn-9372)

    GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 4 Setup Network address in PIO (GN-9372) Network addresses can be set with BOOTP, Web or DHCP server. Network setting (default) Default Setting IP Address 192.168.1.50 Subnet Mask 255.255.255.0 Gateway 0.0.0.0...

  • Page 5: Set The Ip Address (Network) Using The Built-In Web Server

    GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 Set the IP address (network) using the built-in Web Server Easiest way to configure the PIO is to use the built-in Web Server. Default IP address as seen below. • Make sure the PC are on the same IP segment as the PIO.

  • Page 6: Bootp Server

    GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 BOOTP server BOOTP is a standard protocol that can be used to configure the network settings on a GL- 9089 and GN-9289. Sometimes it’s required to disable all other network devices besides the one being used to configure the GL-9089/GN-9289.
  • Page 7 GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 Use BOOTP server when IP address is unknown, method 1 1. Connect the PC with the GL-9089/GN-9289 over Ethernet. 2. Set a fixed IP address on the PC, same subnet as the GL-9089/GN-9289 is to be changed to. The IP address for the PC should not be assigned automatically (DHCP).Se section 4.2.
  • Page 8 GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 6. Power OFF the GL-9089/GN-9289 and set DIP switch 9 to ON (BOOTP). 7. Power on the GL-9089/GN-9289 device, and the device will get the new IP address from the BootP server, it appears in the upper window.
  • Page 9 GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 Use BOOTP server when IP address is unknown, method 2 1. Connect the PC with the GL-9089/GN-9289 over Ethernet. 2. Set a fixed IP address on the PC, same subnet as the GL-9089/GN-9289 is to be changed to. The IP address for the PC should not be assigned automatically (DHCP).
  • Page 10 GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 8. Power on the GL-9089/GN-9289 device, and the device will be shown in the BootP server. Double click on one of the marked rows above. The MAC address is default entered, type required IP address, Subnet and Gateway. Select the correct “Interface”, PC:s Ethernet connection to the GL-9089/GN-9289 and push “Ok”.
  • Page 11 GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 12. Try to ping the device with new IP address. Close the BOOTP Server. 11 (12)

  • Page 12: About Beijer Electronics

    GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09 5 About Beijer Electronics Beijer Electronics is a multinational, cross-industry innovator that connects people and technologies to optimize processes for business-critical applications. Our offer includes operator communication, solution engineering, digitalization and communication, and support.
