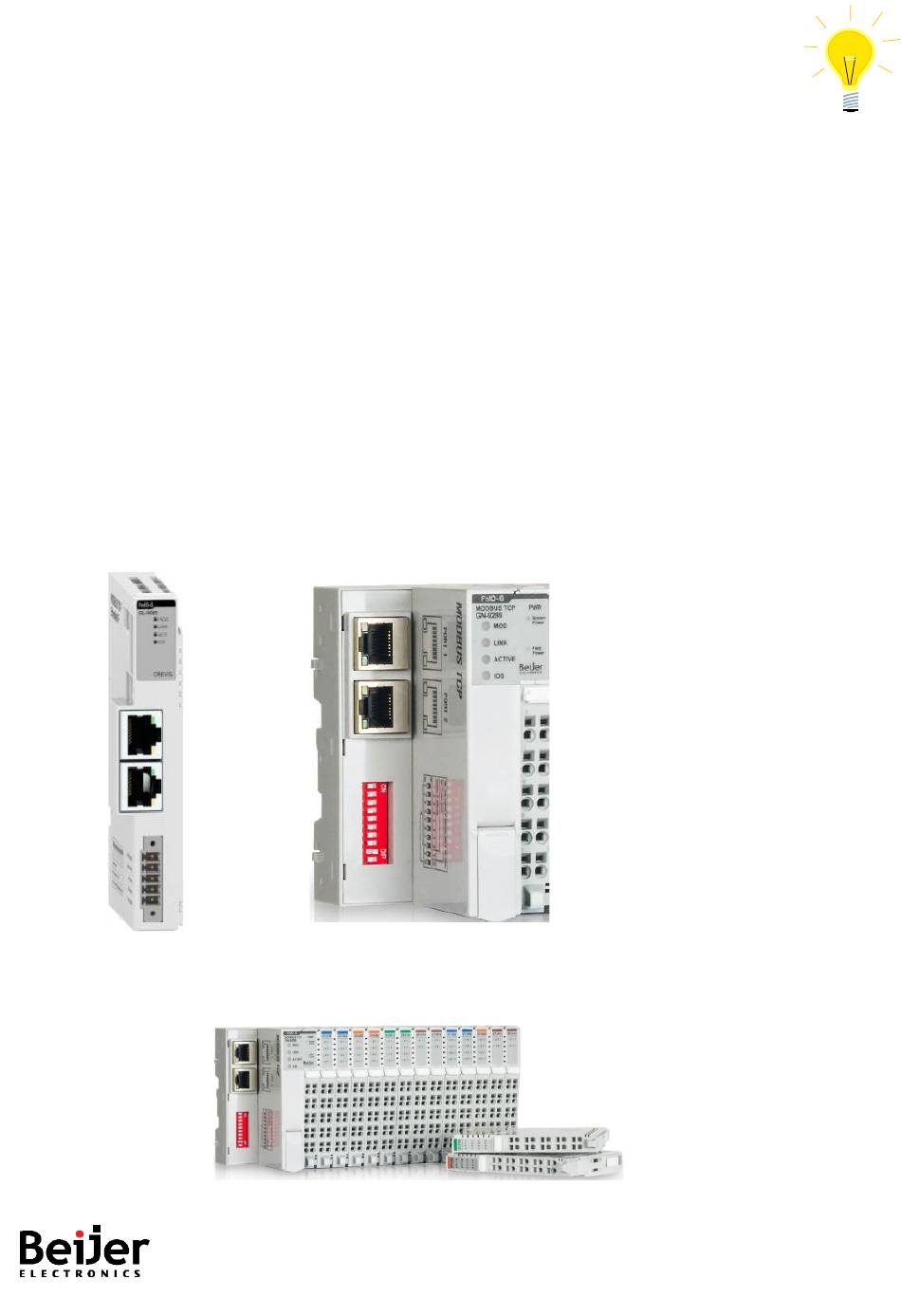

- Page 1 Quick Start Guide Modbus TCP, Ethernet IP network adapter, GL-9089 and GN-9289 SUEN00416 – How to set IP address, Subnet Mask and Gateway on GL-9089 and GN-9289...
-
Page 2: Function And Area Of Use
The material may only be used with products or software supplied by Beijer Electronics. Beijer Electronics assumes no responsibility for any defects in the material, or for any consequences that might arise from the use of the material. -
Page 3: Table Of Contents
GL-9089 and GN-9289 - IP address, Subnet and Gateway Setting SUEN00416 2023-03 3 Table of Contents 1 Function and area of use ................. 2 2 About this Startup document ................2 3 Table of Contents ..................3 4 Setup network address in GL-9089 and GN-9289 ........... 4 Default network settings ................ -
Page 4: Setup Network Address In Gl-9089 And Gn-9289
GL-9089 and GN-9289 - IP address, Subnet and Gateway Setting SUEN00416 2023-03 4 Setup network address in GL-9089 and GN-9289 Setting of the IP address is made through BOOTP. Default network settings Default Setting IP Address 192.168.1.100 Subnet Mask 255.255.255.0 Gateway 0.0.0.0... - Page 5 GL-9089 and GN-9289 - IP address, Subnet and Gateway Setting SUEN00416 2023-03 There could be security software (like antivirus programs) that might need to be temporarily disabled. In some cases when cycling the power of the network adapter, without using a switch between the PC and network adapter, the BOOTP application will loose its reference to the ethernet port.
- Page 6 1. Connect the PC with the GL-9089/GN-9289 over Ethernet. 2. Set a fixed IP address on the PC, same subnet as the GL-9089/GN-9289 is to be changed to. The IP address for the PC should not be assigned automatically (DHCP).Se section 4.2.
- Page 7 SUEN00416 2023-03 6. Power OFF the GL-9089/GN-9289 and set DIP switch 9 to ON (BOOTP). 7. Power on the GL-9089/GN-9289 device, and the device will get the new IP address from the BootP server, it appears in the upper window.
- Page 8 1. Connect the PC with the GL-9089/GN-9289 over Ethernet. 2. Set a fixed IP address on the PC, same subnet as the GL-9089/GN-9289 is to be changed to. The IP address for the PC should not be assigned automatically (DHCP). Se section 4.2.
- Page 9 GL-9089 and GN-9289 - IP address, Subnet and Gateway Setting SUEN00416 2023-03 8. Power on the GL-9089/GN-9289 device, and the device will be shown in the BootP server. Double click on one of the marked rows above. The MAC address is default entered, type required IP address, Subnet and Gateway. Select the correct “Interface”, PC:s Ethernet connection to the GL-9089/GN-9289 and push “Ok”.
- Page 10 GL-9089 and GN-9289 - IP address, Subnet and Gateway Setting SUEN00416 2023-03 12. Try to ping the device with new IP address. Close the BOOTP Server. Note! MODBUS/TCP IP – Address Setup If the adapter BOOTP/DHCP enabled (DIP Pole#9 ON), the adapter sends BOOTP/DHCP request message of 20 times every 2sec.
-
Page 11: About Beijer Electronics
GL-9089 and GN-9289 - IP address, Subnet and Gateway Setting SUEN00416 2023-03 5 About Beijer Electronics Beijer Electronics is a multinational, cross-industry innovator that connects people and technologies to optimize processes for business-critical applications. Our offer includes operator communication, solution engineering, digitalization and communication, and support. As experts in user-friendly software, hardware and services for the Industrial Internet of Things, we empower you to meet your challenges through leading-edge solutions.
