JetWave 4110L Quick Start Guide 1
Creating wireless link between JetWave 4110L(s)
Introduction
The JetWave4110L is outdoor industrial grade LoRa Gateway for the Serial to LoRa environment
monitoring market. The Gateway series equips with one embedded LoRa module, one M12
connecter, 1 serial port and 1 AI/DI and 1DO.
Objectives of this quick start guide
1. To allow you to configure the JetWave 4110L for basic wireless communication
2. Testing out the Communication using Console terminals using JetWave 4110L
3. Simple troubleshooting techniques

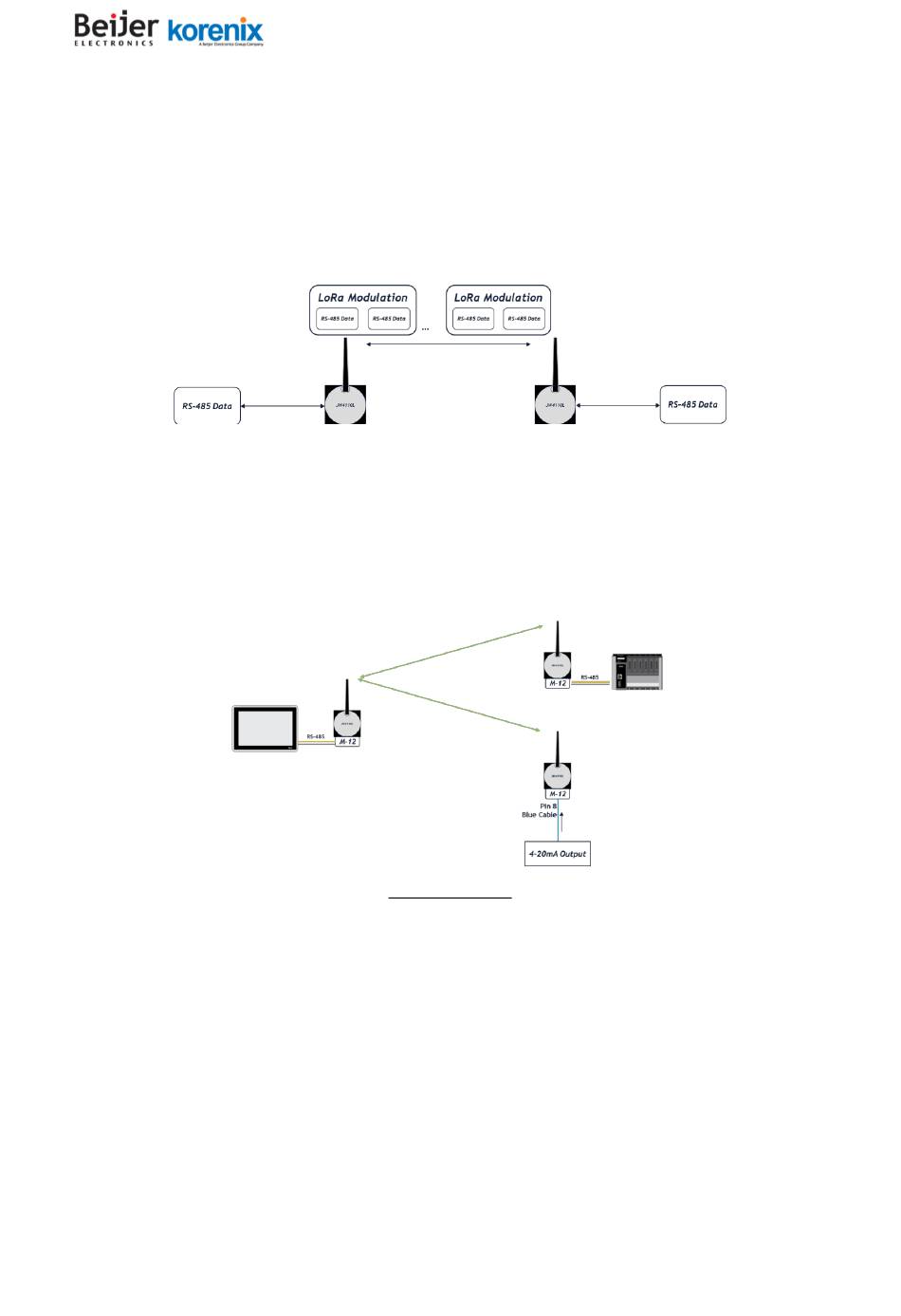

Possible Application
Specifications

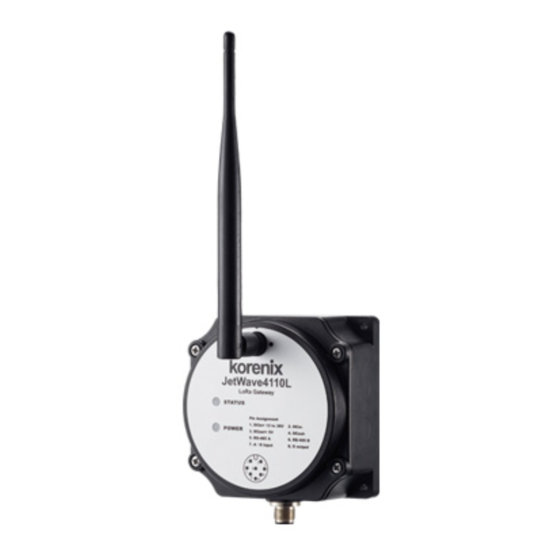

JetWave 4110L Industrial LoRa Private Gateway
•
Wireless data link stable data stream.
•
Outdoor IP68 design.
•
High output RF Power and high sensitivity provide more than 40KM transmission distance.
•
Multi-Interface support RS-485 / Analog or Digital Input / Digital Output.
•
Resist the water, dust, temperature and shock and meet with the IP68 standard.
•
Analog Input support 0~10 V / 4~20 / ADC
•
Digital Output support PWM / Latch Mode.
•
AUX I/O support remote setup/status inquiry function.
•
Built in Modbus Slave for D.O/AI/AO applications
www.beijerelectronics.com
Version 1.0.0
JetWave 4110L
Possible Application
JetWave 4110L Quick Start Guide 1
People & Technology Connected
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Beijer Electronics Korenix JetWave 4110L
Summary of Contents for Beijer Electronics Korenix JetWave 4110L
- Page 1 Version 1.0.0 People & Technology Connected JetWave 4110L Quick Start Guide 1 Creating wireless link between JetWave 4110L(s) Introduction The JetWave4110L is outdoor industrial grade LoRa Gateway for the Serial to LoRa environment monitoring market. The Gateway series equips with one embedded LoRa module, one M12 connecter, 1 serial port and 1 AI/DI and 1DO.
-
Page 2: Network Diagram
Version 1.0.0 People & Technology Connected Overview The JetNet 4110L can be thought of a replacement for wires for RS-485 applications. It is important to know there are 2 "addresses" in the JW 4110L: • RF Address • Modbus Address It will be good practice to name in a similar manner so not to get confused. - Page 3 Version 1.0.0 People & Technology Connected How to wire up the JetWave 4110L www.beijerelectronics.com JetWave 4110L Quick Start Guide 1...
- Page 4 Version 1.0.0 People & Technology Connected Connecting to the device using JetControl Software and configuration JetControl software is avaiable for download in the Korenix Website under the JetWave 4110L software page. Using this software you will be able to read and configure the JetWave 4110L. www.beijerelectronics.com JetWave 4110L Quick Start Guide 1...
- Page 5 Version 1.0.0 People & Technology Connected Unit A Device Settings Unit A RF Settings • Frequency (Hz): 863500000 • Receive Packet Devices which are communicating with Address base each other much use the same filtering: Group Only • Transmission Power: Low Node Address: 1 (Must be Higher = longer range unique in network,...
- Page 6 Version 1.0.0 People & Technology Connected www.beijerelectronics.com JetWave 4110L Quick Start Guide 1...
- Page 7 Version 1.0.0 People & Technology Connected Unit B Device Settings Unit B RF Settings • Frequency (Hz): 863500000 • Receive Packet Devices which are communicating with each Address base other much use the same filtering: Group Only • Transmission Power: Lower Node Address: 2 (Must Higher = longer range be unique in network,...
- Page 8 Version 1.0.0 People & Technology Connected Verifying the settings When setting up the JetWave 4110L I personally prefer to use 2 serial terminal consoles to do the very first verification, because if you are able to communicate with the 2 serial terminal console it means that communication between the the JetWave 4110L is done correctly and you will be able have a better ease of mind later on when putting your solution together.
-
Page 9: Troubleshooting Tips
Version 1.0.0 People & Technology Connected Putting your solution together The main use case of the JetWave 4110L is to be used as a "Wire Replacement" and use this wireless replacement over long distances. Once you are able to communicate correctly through the terminal-to-terminal test as stated above you will be ready for the next step, connecting your HMI/PLC to your Remote I/O wirelessly. - Page 10 As experts in user-friendly software, hardware and services for the Industrial Internet of Things, we empower you to meet your challenges through leading-edge solutions. Beijer Electronics is a Beijer Group company. Since its start-up in 1981, BEIJER GROUP has evolved into a multinational group with sales of 1.4 billion SEK 2020.
