Update firmware using IAP over Ethernet

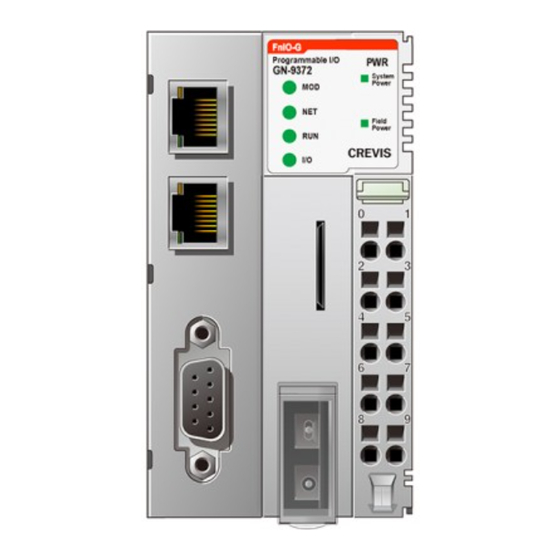

1. Connect a computer with web browser to the G-PIO (for example GN-9372).
Note! A new device has the default IP 192.168.1.50, make sure the PC are on the same IP
segment. Access the web server of the device using http://192.168.1.50/setup.htm.
2. Now power off the device.
3. Press reset button of the device and apply power at the same time.
Now the module will enter IAP mode (MOD LED will blink green/red).

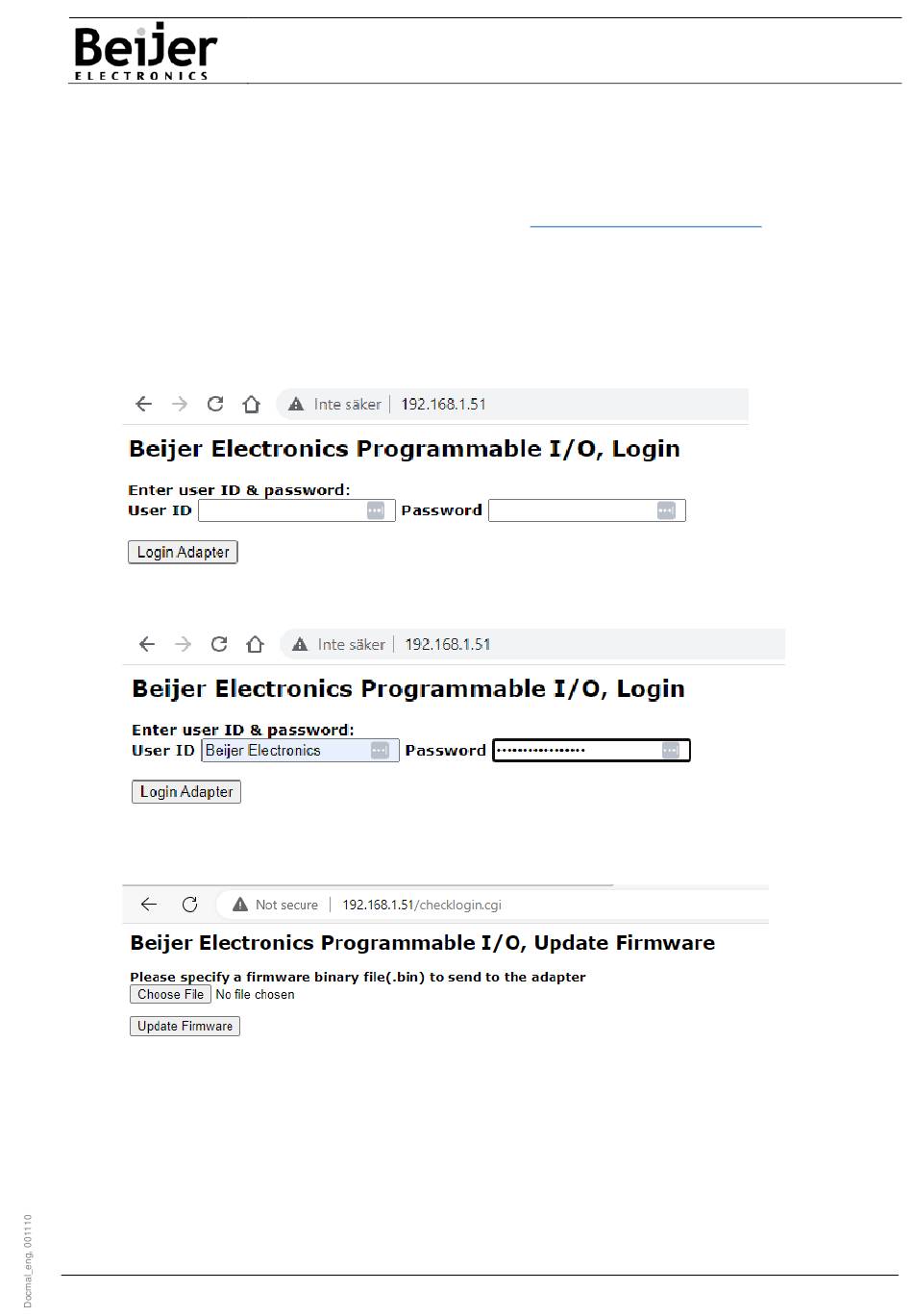

4. Start the web browser and connect to IP 192.168.1.51
5. Login with User ID: Beijer Electronics / Password: Beijer Electronics
6. Specify a firmware binary file (*.bin) with 'Choose File'.
