2. Fasten the terminal board in place using the terminal board screws that
are supplied with the R81 kit.
Terminal
Receptacles

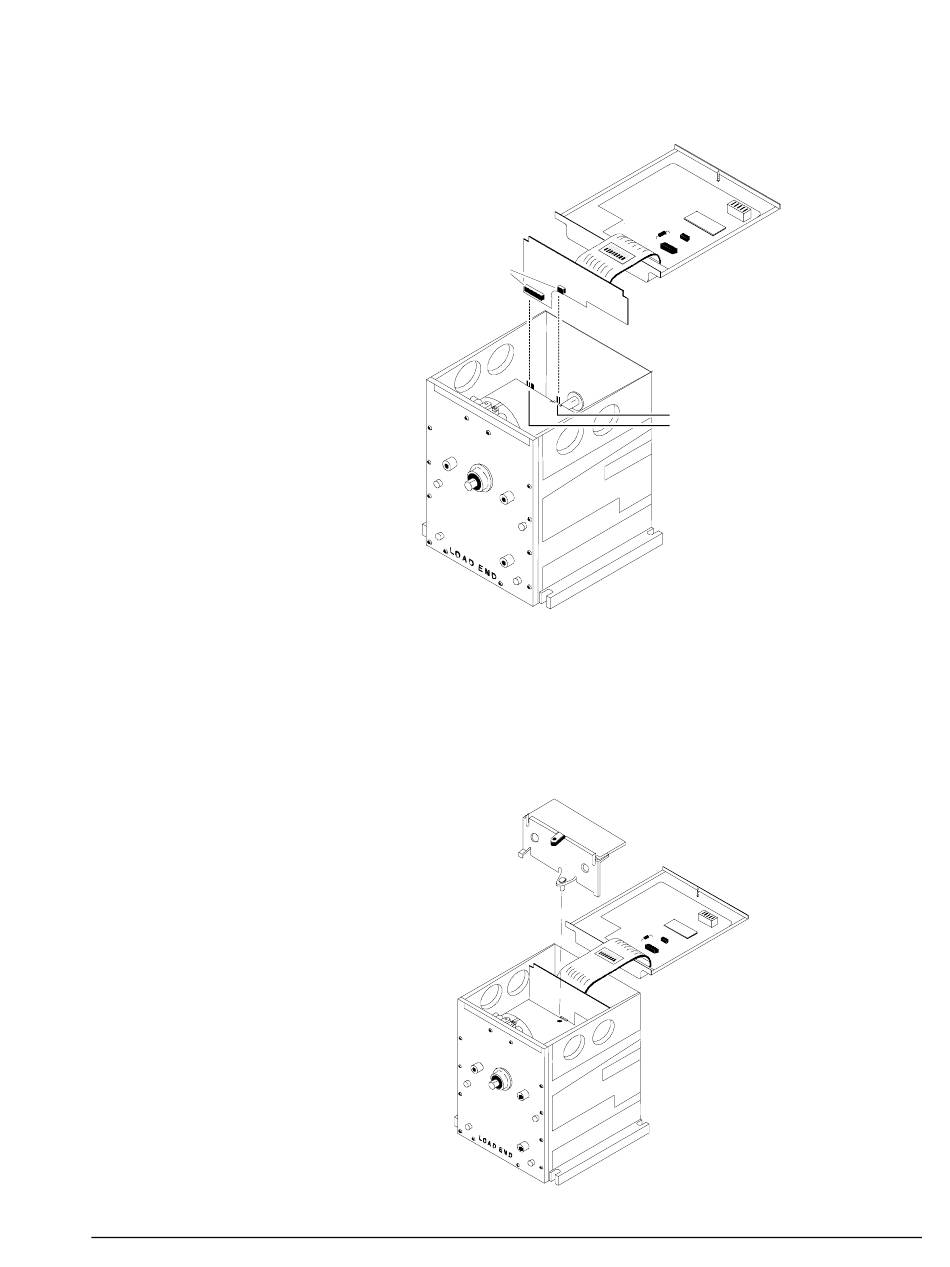

Figure 5: Installing Vertical Board
3. Install the vertical board (includes ribbon cable attached to the cover
mounted board) by carefully placing the terminal receptacles onto the
pin terminals as shown in Figure 5.
Note: Align all pins within the receptacle.
Vertical Board
with Attached Cover
M100C02
Bracket
M100C03
Figure 6: Installing Bracket
M Motor Actuators—M100C Series of Motor Actuators 7
