Johnson Controls M100C Series Installation Sheets Manual page 11

20
21
Power
C500AAC-1
Supply
TZ-1
**

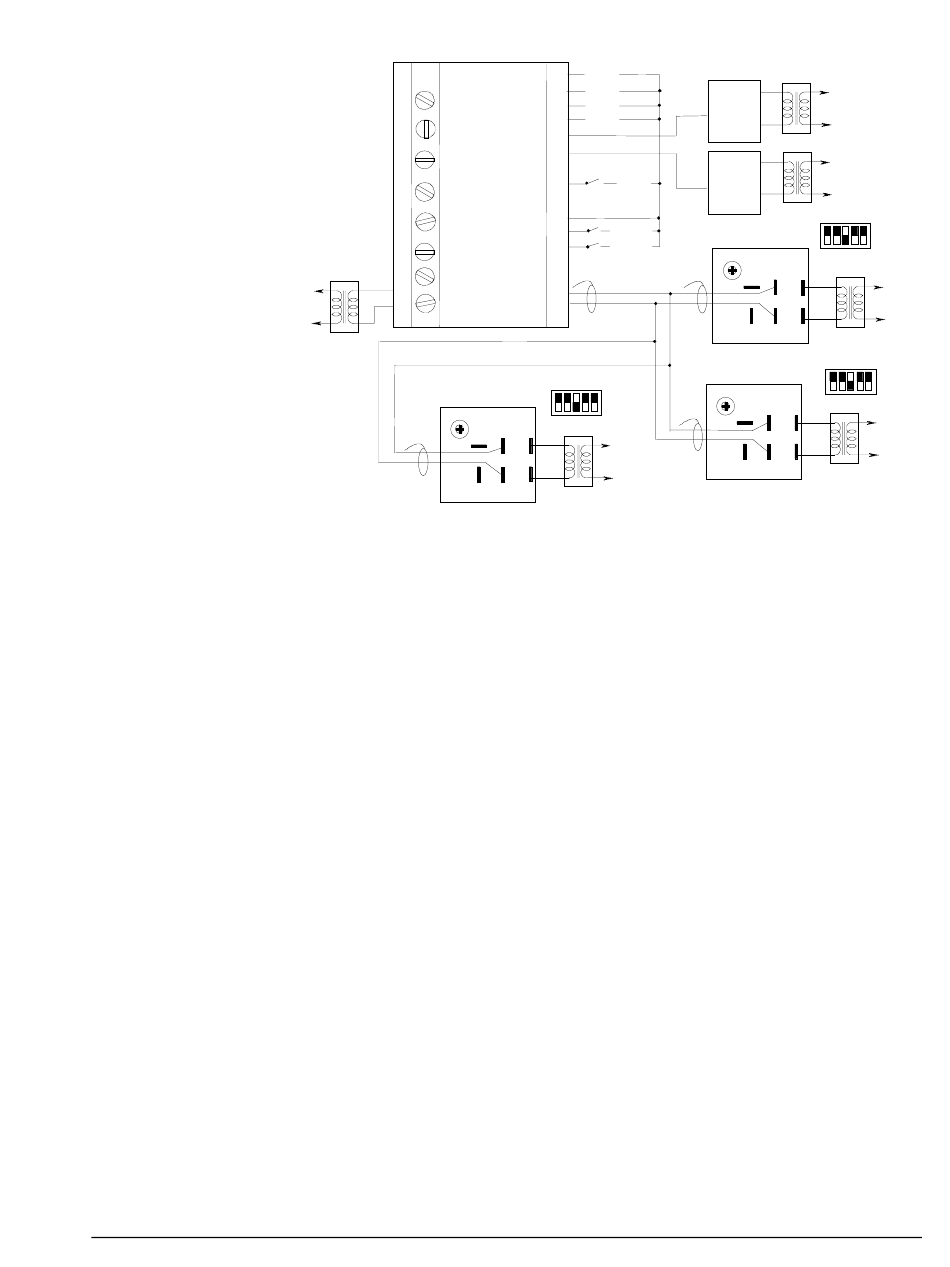

Figure 11: Typical Parallel Wiring Diagram All Master Actuators
Figure 11 shows a typical wiring diagram for a parallel system with one
motor actuator set as master and the others as slaves. Each motor actuator
has the same address.
To wire the motor actuator:
1. Loosen the two screws securing the top cover and remove the top
cover for access to the wiring terminals.
2. Use a hammer and punch to drive out one of the access hole covers.
3. Install the conduit connector to the motor actuator and secure using the
conduit nut provided with the connector.
4. Connect the controller to the terminals located in the wiring
compartment as shown in Figures 9 and 10.
5. Connect 24 VAC to terminals T1 and T2.
Note: To avoid potential miswiring and electrical problems, the use of
separate transformers for each M100 is required.
Note: For further information on any of the controllers illustrated,
reference the applicable controller literature.
42
TE-1
41
TE-2
40
TE-3
39
TE-4
38
37
36
35 TC-1
34
33
32
AFS-1
31
AFS-2
30
29
*
28
27
4 5 6 7 8
Slave
CA-1
OFF
ADDRESS 17
COM
T 1
CW
Power
Supply
T 2
CCW BUS
TZ-5
*Shield is connected to Common of the controller.
**Loose ends of the shield are to be taped off as
required. Do not connect to ground.
M Motor Actuators—M100C Series of Motor Actuators 11
Power
HT-1
Supply
TZ-2
Power
HT-2
Supply
TZ-3
4 5 6 7
Master
OFF
ADDRESS 17
CA-2
COM
T 1
CW
**
T 2
CCW BUS
TZ-4
4 5 6
Slave
CA-4
OFF
ADDRESS 17
COM
T 1
CW
**
T 2
CCW BUS
TZ-6
8
Power
Supply
7 8
Power
Supply
