Sunny Health & Fitness SF-RBE4886 SMART User Manual

Smart recumbent cross trainer elliptical exercise bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

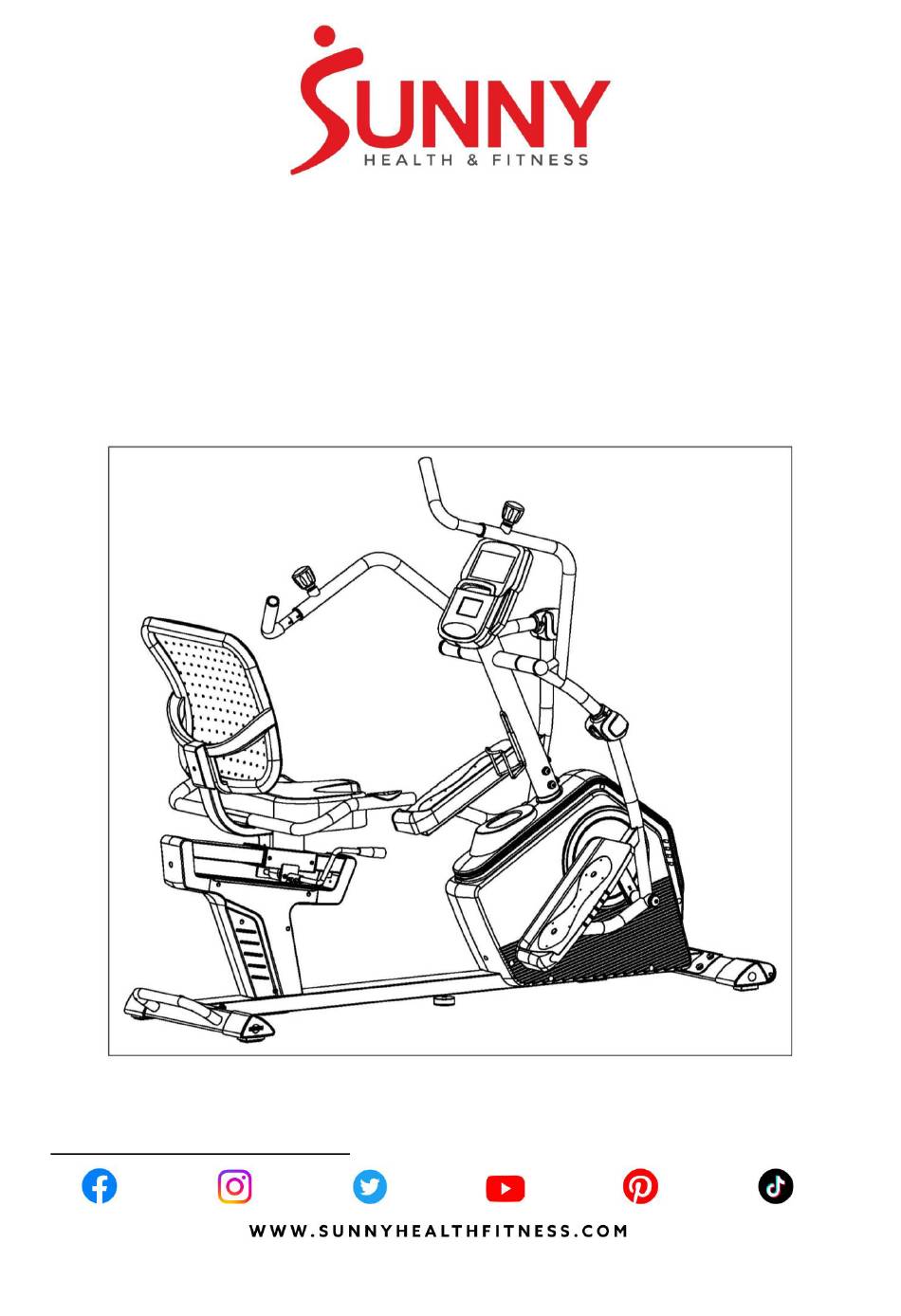

SMART RECUMBENT CROSS TRAINER
ELLIPTICAL EXERCISE BIKE
SF-RBE4886 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RBE4886 SMART and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny Health & Fitness SF-RBE4886 SMART

Summary of Contents for Sunny Health & Fitness SF-RBE4886 SMART

  • Page 1 SMART RECUMBENT CROSS TRAINER ELLIPTICAL EXERCISE BIKE SF-RBE4886 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Main Frame Seat Rail Cover 2L/R Swing Bar 1 pr. 49L/R Pedal 1 pr. 3L/R Pedal Support Tube 1 pr. Handlebar Post 51a/b Protective Cover...

  • Page 4: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove 2 Shipping Tubes (No. 57), 8 Screws (No. 20), 8 Spring Washers (No. 37) and 8 Flat Washers (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Attach the Left Pedal Support Tube (No. 3L) to the Left Crank (No. 41L) with 1 Left Hinge Bolt (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Remove 2 Hex Screws (No. 26), 2 Spring Washers (No. 37), 2 Flat Washers (No. 33) and 2 Wave Washers (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 4 Screws (No. 21), 4 Spring Washers (No. 37) and 4 Flat Washers (No. 35) from the Seat Rail (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Remove 4 Screws (No. 83) from the Meter (No. 14) with Spanner (No. 129). Connect the Pulse Extension Wire 2 (No.

  • Page 10: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE LEVEL If the recumbent bike is not level, turn the dials on the Rear End Caps (No. 56L/R) to adjust. Turn counter-clockwise to raise and turn clockwise to lower. ADJUSTING THE SEAT To move the Seat (No. 52) forward or backward, while seated on the bike, put your feet on recumbent...

  • Page 11: Workout Selection

    IMPORTANT RECUMBENT BIKE INFORMATION WARNING: This recumbent bike requires a power source of 1 amp (100-240V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 12: Workout Parameters

    TIME: Accumulates the workout time from 0:00 to 99:59. Users can preset the target time they want. DIST (DISTANCE): Accumulates the workout distance from 0.00 to 999.9 Miles. Users can preset the target distance they want to reach. ODO (ODOMETER): Displays the total accumulated distance from 0 to 9999 Miles. CAL (CALORIES): Accumulates the calories burned from 0 to 9999.
  • Page 13 1..When display is set as 0.00, CALORIES will count up. 2. When CALORIES is set as 0.00~9995 0.00 ±5.00 (CALORIES) 5.00~9995, it will count down to 0.00. User can set watt value only in WATT 50~250 ±5 the Watt Control Program. Target HR will be based on Age.
  • Page 14 There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance. SETTING PARAMETERS FOR PRE- SET PROGRAMS 1. Select one of the Pre-set Programs using the UP or DOWN button, then press ENTER button. TIME will flash so the value can be adjusted using the UP or DOWN key. 2.
  • Page 15 3. Press ENTER button to save the value and move to the next parameter to be adjusted. NOTE: If you set up the target time for workout, then the next parameter of DISTANCE cannot be adjusted. 4. Continue through all desired parameters, pressing the START/STOP button to start the workout. NOTE: Once the workout parameters count down to zero, it will beep and stop the workout automatically.
  • Page 16 TARGET HEART RATE PROGRAM (P16) Program Profile SETTING PARAMETERS FOR TARGET HEART RATE PROGRAM 1. Select TARGET HR (P16) using the UP or DOWN button, then press ENTER button. 2. TIME will flash. The value can be adjusted using the UP or DOWN button. 3.

  • Page 17: User Program

    USER PROGRAM Program Profile (P21-P24) The 4 user programs allow the user to set their own program that can be used immediately. SETTING PARAMETERS FOR USER PROGRAM 1. Select the User Program using the UP or DOWN button then press ENTER button. 2.

  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CHECK SOLUTION Plug in the cables again Check if all the cables are and power on, then well plugged in or check if The motor couldn’t find press MODE the pins on the cables are E1-1 ENTER buttons at the its start point.

  • Page 19: Exploded Diagram

    EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2...

  • Page 20: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Handle Fixed Plate 2L/R Swing Bar 1 pr. Seat Rail Cover 3L/R Pedal Support Tube 1 pr. 49L/R Pedal 1 pr. Handlebar Post 5L/R Handlebar 1 pr. 51a/b Protective Cover 2 prs.
  • Page 21 Description Spec. Qty. Description Spec. Qty. Magnet Belt Pulley Φ14XΦ10XM8X Axle Screw Belt 410 PJ6 20.5 Magnetic Board Axle Idler Wheel Φ12XΦ15.5X0.3 Wave Washer Tube Plug Φ1.6XΦ15XL47. Tension Spring Sealing Ring Φ18XΦ3XL67.5 Tension Spring Sensor Seat Bearing 6203 Motor Bearing 6001 Flange Nut Flywheel...
