Summary of Contents for Marshall Amplification CV730-BHN

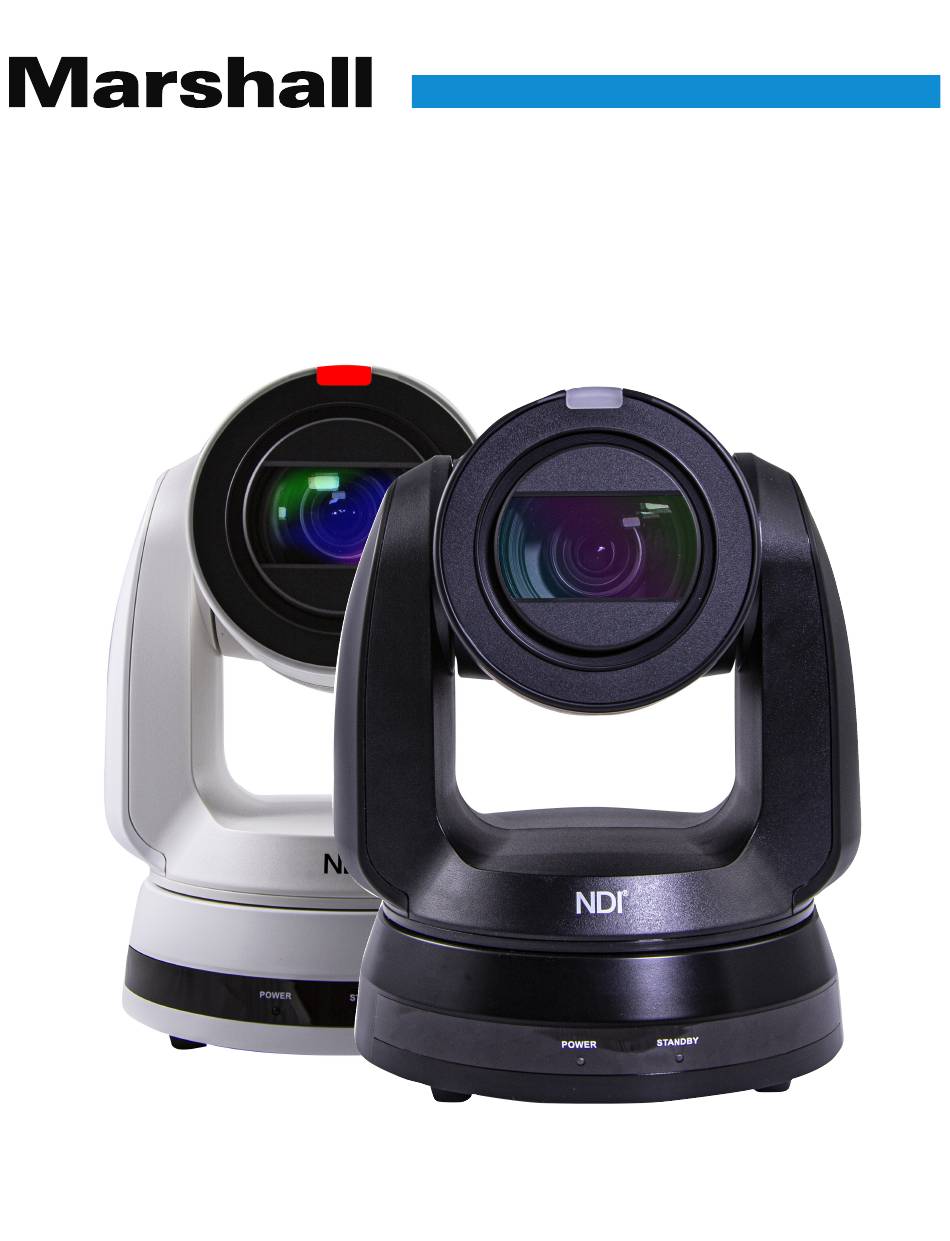

- Page 1 B r o a d c a s t A / V D i v i s i o n CV730-BHN/WHN 30x UHD30 Full-NDI, IP & 12GSDI PTZ Camera User Manual...
- Page 2 NDI®|HX camera. OVERVIEW: Unlike typical cameras, CV730-BHN leverages the easy plug-n-play benefits of the NDI-based IP workflow supported by leading video software and hardware developers around the globe.
-
Page 3: Table Of Contents
CV730-BHN-WHN Manual Table of Contents Chapter 1: Package Contents ................3 Chapter 2: Function Introduction ................4 2.1 I/O functions Introduction ...............4 2.2 Description of LED indicator ..............6 2.3 Tally Lamp Function Description ............6 Chapter 3: Instruction for installation ...............7 3.1 Camera Size .................. -
Page 4: Chapter 1: Package Contents
Chapter 1: Package Contents PTZ Camera Installation Instructions Remote Control Click Here for Product Page: https://marshall-usa.com/ cameras/CV730-BHN-WHN/ AC Power Cord Power Adapter RS-422 Connector Appearance may vary depending on county/ region Metal Plate A Metal Plate B M3 Screws Silver x8/ Black x2... -
Page 5: Chapter 2: Function Introduction
CV730-BHN-WHN Manual Chapter 2: Function Introduction 2.1 I/O functions Introduction 2.1.1 Front View www.marshall-usa.com... - Page 6 Front View 14 15...
-
Page 7: Description Of Led Indicator
CV730-BHN-WHN Manual 2.1.2 Bottom 2.2 Description of LED Indicator 2.3 Tally Lamp Function Description The Tally lamp function may be enabled through the RS232 command. Please refer to RS-232 command set document www.marshall-usa.com... -
Page 8: Chapter 3: Instruction For Installation
Chapter 3: Instruction for installation 3.1 Camera Size 3.1.1 Camera Front View and Side View • Length x Width x Height: 232 x 188 x 189mm • Weight: 3.0 Kg (without metal plates) Camera Bottom View 3.1.1.1 The camera can be mounted on a 1/4”-20 UNC PTZ tripod deck by using the lock holes on the bottom for the tripod to secure in place. -
Page 9: Preparation Before Installation
CV730-BHN-WHN Manual 3.2 Preparation Before Installation Installation and connection of PTZ cameras sometimes requires special skill and more secure with two people. To install by yourself, please carefully follow steps, ensure tight and secure mounting, and follow safety guidelines to avoid any accidents. - Page 10 3.3.2 I would like to install the camera on the ceiling 3.3.2.1 Prepare the parts, screws and equipment required for installation Accessories in the box: • (metal plates A, B, M3 screw silver x 8, black x 2) • Screw for locking on ceiling mounted hanger x 4 Drill, screw driver, and ladder 3.3.2.
- Page 11 CV730-BHN-WHN Manual Metal plate A - Ceiling Side Metal plate B Metal plate B locking screw locking bolt Metal Plate B Ceiling Side www.marshall-usa.com...
- Page 12 3.3.2.3 Precautions for Installation 1. Before installation, please identify the orientation of the camera relative to the object to be captured and ensure proper horizontal and vertical axis. 2. Minimum Object Distance (M.O.D.) is 1.5 meters from camera to subject to gain focus, so please optimize to focal lengths and subjects or targets being captured.
- Page 13 CV730-BHN-WHN Manual 2. Fix the metal plate A on CAMERA base with 4x M3 silver screws 3. Lock the metal plate B on ceiling mounted hanger NOTE: • Please use a secure hanger with UL approval • Please consider wire holes for connecting camera cables later.
-
Page 14: Connecting Devices
3.4 Connecting devices 3.4.1 RS-232 Connection • RS-232 IN/OUT has maximum of 7x Marshall cameras that can be connected. • RS-232 pinout decriptions and instructions... - Page 15 CV730-BHN-WHN Manual • RS-422 Connection Instructions 1. Hold the two sides of RS-422 pheonix connector and pull out in the direction shown by the arrow in the figure below 2. Splice and strip copper wire (AWG Nos. 28 to 18) and insert it into the connector hole;...
-
Page 16: Chapter 4: Remote Control And Setting Menu
Chapter 4: Remote Control and Setting Menu 4.1 Functions of remote control 13 14 15... -
Page 17: Setting Menu
CV730-BHN-WHN Manual 4.2 Setting Menu NOTE: Press MENU on the remote control to enter the OSD settings menu; the bold underlined values in the following table are DEFAULTS. www.marshall-usa.com... - Page 19 CV730-BHN-WHN Manual www.marshall-usa.com...
-
Page 21: Chapter 5: Network Function Settings Description
CV730-BHN-WHN Manual Chapter 5: Network Function Settings Description Connecting to Internet 5.1.1 Two common connection methods are shown below: 1. Connecting via IP network switch or router Network Cable Network Cable Camera Computer Switch or Router 2. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera E.g.: The factory-preset default IP address of the camera is 192.168.100.100. - Page 22 Using the Browser to View the Images 5.1.2 • Open the browser, and enter the IP address of the camera in the address bar E.g.: http://192.168.100.100 (default IP address) • Enter administrator’s account and password For the first-time login, please refer to 5.2.12 Settings - User to change the default password Marshall Network Camera •...
- Page 23 CV730-BHN-WHN Manual RTSP connection address formats are as follows: • RTSP Main Streaming (4K@H.265)=> rtsp://camera IP:8554/hevc • RTSP Sub1 Streaming (1080P@H.264)=> rtsp://camera IP:8557/h264 • RTSP Sub2 Streaming (720P@H.264)=> rtsp://camera IP:8556/h264 If password authentication is enabled, the RTSP connection address is as follows: •...
-
Page 24: Web Page Function Description
Web Page Function Description 5.2.1 Live View NOTE: The preview window is not supported when NDI|HX is ON... - Page 25 CV730-BHN-WHN Manual www.marshall-usa.com...
- Page 27 CV730-BHN-WHN Manual www.marshall-usa.com...
- Page 29 CV730-BHN-WHN Manual www.marshall-usa.com...
- Page 30 Streaming parameter setting 5.2.4.1...
- Page 31 CV730-BHN-WHN Manual Streaming – NDI 5.2.5 NOTE: The setting is only available when NDI|HX is turned ON www.marshall-usa.com...
- Page 32 Streaming – High Bandwidth NDI 5.2.6...
- Page 33 CV730-BHN-WHN Manual System Device – Device 5.2.7 www.marshall-usa.com...
- Page 34 Settings – Audio 5.2.8...
- Page 35 CV730-BHN-WHN Manual Settings – Network 5.2.9 www.marshall-usa.com...
- Page 36 Settings – Maintenance- Security 5.2.10 Function Descriptions Enable/disable 802.1x protocol, and configure settings when enabled NOTE: The router must support 802.1x protocol to enable this feature Setting – Date & Time 5.2.11 Function Descriptions Display date and time of the current camera/ PC. You may set the synchronization method and modify date and time...
- Page 37 CV730-BHN-WHN Manual Settings – User 5.2.12 Function Descriptions Add/ Modify/ Delete user account • Supporting 4 ~ 32 characters for user name and password • Please mix uppercase and lowercase letters or numbers for characters. Special symbols or the underlined cannot be used •...
- Page 38 Settings – Control Port Number 5.2.13...
- Page 39 Maintenance 5.2.14 Maintenance Reboot 5.2.15 www.marshall-usa.com...
- Page 40 About 5.2.16 Function Descriptions Display the firmware version, serial number, running time and other related information of the camera For technical support, please scan the QRcode at the bottom right...
-
Page 41: Chapter 6: Dip Switch Setting
CV730-BHN-WHN Manual Chapter 6: DIP Switch Setting DIP SWITCH 6.1.1 OUTPUT Switch (Switch to different output resolutions and framerates) To switch via the OSD/ Web Page/RS-232 Command is also available based on the last executed action IR SELECT (Selected by Remote control) 6.1.2... -
Page 42: Chapter 7: Troubleshooting & Safety
Chapter 7: Troubleshooting This chapter describes problems you may encounter while using CV730-BHN. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. - Page 43 CV730-BHN-WHN Manual Safety Precautions Always follow these safety instructions when setting up and using the CV730-BHN PTZ Camera: 1 .... Operation Please use the product in the recommended operating environments, away from water and source of heat Do not place the product on a tilted or unstable trolley, stand or table.
-
Page 44: Copyright Information/Warranty
Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer: Marshall Electronics, Inc. Product Name: CV730-BHN/WHN Model Number: PTZ Camera Responsible Party – U.S. Contact Information Supplier: Marshall Electronics, Inc. 20608 Madrona Ave, Torrance, CA. 90503 e-mail: support@marshall-usa.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.
