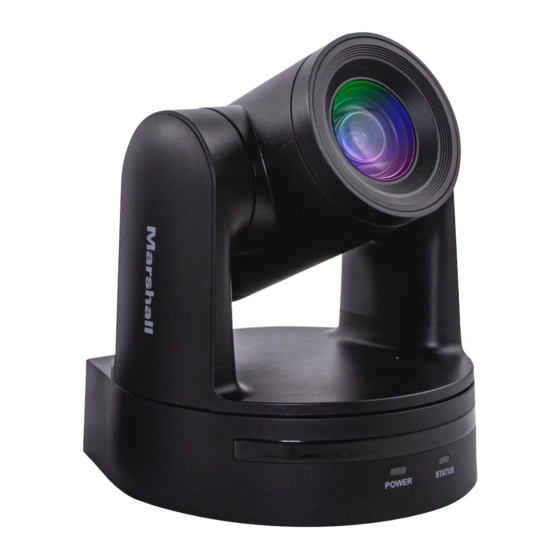

Marshall Amplification CV605-BK User Manual

5x hd60 ip ptz camera with 3gsdi
Hide thumbs
Table of Contents

Advertisement

Quick Links

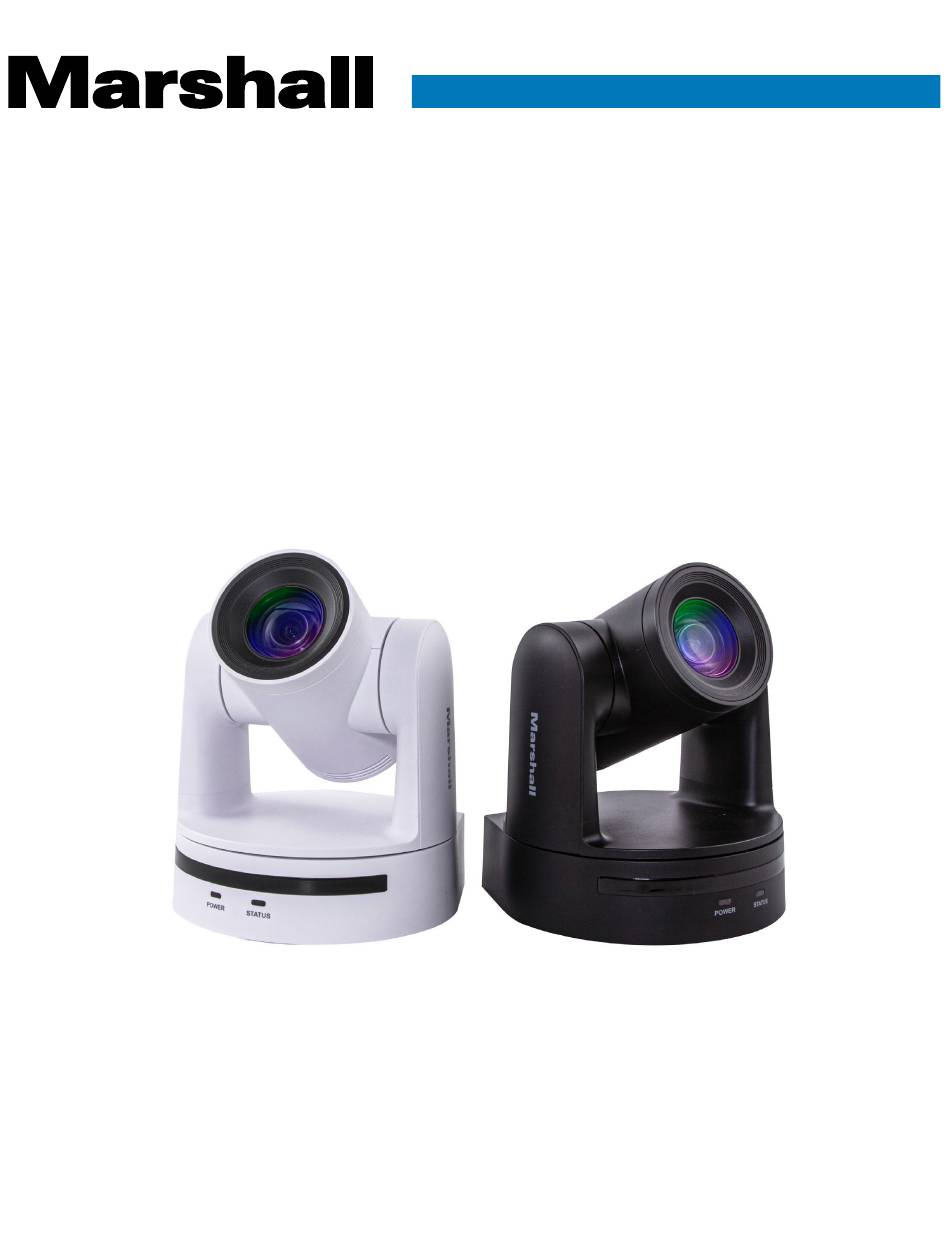

B r o a d c a s t A / V D i v i s i o n
CV605-BK (Black)
CV605-WH (White)
CV605-BK (black)
5x HD60 IP PTZ Camera with 3GSDI
CV605-WH (white)
5x HD60 IP PTZ Camera with 3GSDI
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV605-BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marshall Amplification CV605-BK

Summary of Contents for Marshall Amplification CV605-BK

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV605-BK (Black) CV605-WH (White) CV605-BK (black) 5x HD60 IP PTZ Camera with 3GSDI CV605-WH (white) 5x HD60 IP PTZ Camera with 3GSDI...

  • Page 2: Table Of Contents

    CV605-BK/WH Manual Content 4.2.8 Logout............................ 25 5. SERIAL COMMUNICATION CONTROL ..................25 PLEASE NOTE ..............ERROR! BOOKMARK NOT DEFINED. 5.1 VISCA ........................26 1. FAST INSTALLATION ........................5 PROTOCOL LIST 5.1.1 Command list ......................... 26 1.2 P ......................5 OWER ON INITIAL CONFIGURATION 5.1.2 Inquiry command ........................

  • Page 3: Please Note

    CV605-BK/WH Manual 1. Fast Installation Please Note 1.1 Camera Layout Explanation This manual details features, functions, installation, operation and recommendation. Please read this manual completely before installation and use. Description of use 1. In order to prevent damage to this camera or other components within the workflow, please use it within its prescribed purpose and scope of operation.
  • Page 4 11.Multiple Control Protocols: Support VISCA, Pelco-D, Pelco-P and supports auto-recognize protocol discovery. 12.255 Presets Positions: Up to 255 presets (10 presets available on IR remote controller). 2.3 Technical specification Model CV605-BK / CV605-WH Camera Specs Optical Zoom 5X Optical Zoom (3～15.5mm) Sensor 1/2.8-inch-high quality HD CMOS sensor...

  • Page 5: Interface Instruction

    CV605-BK/WH Manual Available Video I/O 3G/HD-SDI, LAN, RS232 (RJ45), Audio-IN Image Output Multiple Dual Code Source output (3GSDI, LAN) Code Source Video Compression Format H.264 & H.265 Audio Input Interface Two-channel 3.5mm (Line or Mic level) Audio Output 3G/HD-SDI LAN (IP) embedded Audio Compression Format AAC/MP3/G.711A...

  • Page 6: Setting Explanation

    CV605-BK/WH Manual 3.1 Remote Controller indicator light will start flashing; release the button, the indicator light will stop flashing. Users can control the pan/tilt/zoom, setting and operate preset positions via the IR remote controller. 3.1.1 Setting Explanation Key Instruction: 1. Standby Key 1.

  • Page 7: Menu Setting

    CV605-BK/WH Manual 1. Preset setting: to set a preset position, user should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset position, LANGUAGE: Language setting, English / Chinese Note: 10 preset positions in total are available on the remote...
  • Page 8 CV605-BK/WH Manual available in Manual and Shutter priority mode) CAMERA IRIS Priority: Close, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8 (only available in Manual Exposure and ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...

  • Page 9: Video Format

    CV605-BK/WH Manual Sharpness: 0~15 Flip-H: On/Off (When Auto Flip is ON, this option will be disabled) P/T/Z Flip-V: On/Off (When Auto Flip is ON, this option will be disabled) ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...

  • Page 10: Network Settings

    CV605-BK/WH Manual Network settings AF Version: Display the focus version information ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...

  • Page 11: Web Client

    CV605-BK/WH Manual Internet connection (Using DHCP): To use DHCP, first turn on DHCP in Network Settings OSD menu on camera. Power cycle the camera so the network can assign an IP address to the camera. Check the assigned IP address in Network Setting OSD menu again and use the address to log into camera webpage.
  • Page 12 CV605-BK/WH Manual AF-Sensitivity: Set the focus sensitivity (default is low, high, medium optional) 1) Audio Configuration b, Exposure: Enable: Choose to enable the audio input or choose to not. Mode: Set the exposure mode (the default Atuo, manual, SAE, AAT, Bright optional) Encode Type: Set audio compressing format and the device will reboot automatically after change (default AAC, MP3, EV: Set the exposure compensation value, valid when it is set for auto (default 0,-7 to 7 optional).
  • Page 13 CV605-BK/WH Manual Date separator: set the date separator (default '/', '.', '-' Optional). 4.2.6 Network Configure Zone: Set the time zone (default East eight districts, other time zones optional). 1) Network port Hour Type: Set the time types (default 24 hours, optional 12 hours).
  • Page 14 CV605-BK/WH Manual 5.1 VISCA protocol list 8x 01 04 3F 01 0p FF Recall 8x 01 04 3F 02 0p FF 5.1.1 Command list CAM_Display On/Off 8x 01 06 06 10 FF Datascreen on/off 8x 01 06 01 VV WW 03 01 FF...
  • Page 15 CV605-BK/WH Manual 5.2 Pelco-D protocol command list Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Query Pan Position 0xA0 Address 0x00 0x51 0x00 0x00 0xAF Function Byte1 Byte2...
  • Page 16 Warranty 6) Web pages cannot log in Marshall warrants the VAC-23SHU3 HDMI to 3G/HD/SD-SDI Converter to be free from defects a, Check whether the camera is setup and in normal working modes. in the material and workmanship for 1 year from the date of purchase from an authorized b, Check whether the network cable is connected properly ( on Ethernet port the yellow light flashes to indicate normal Marshall dealer.
