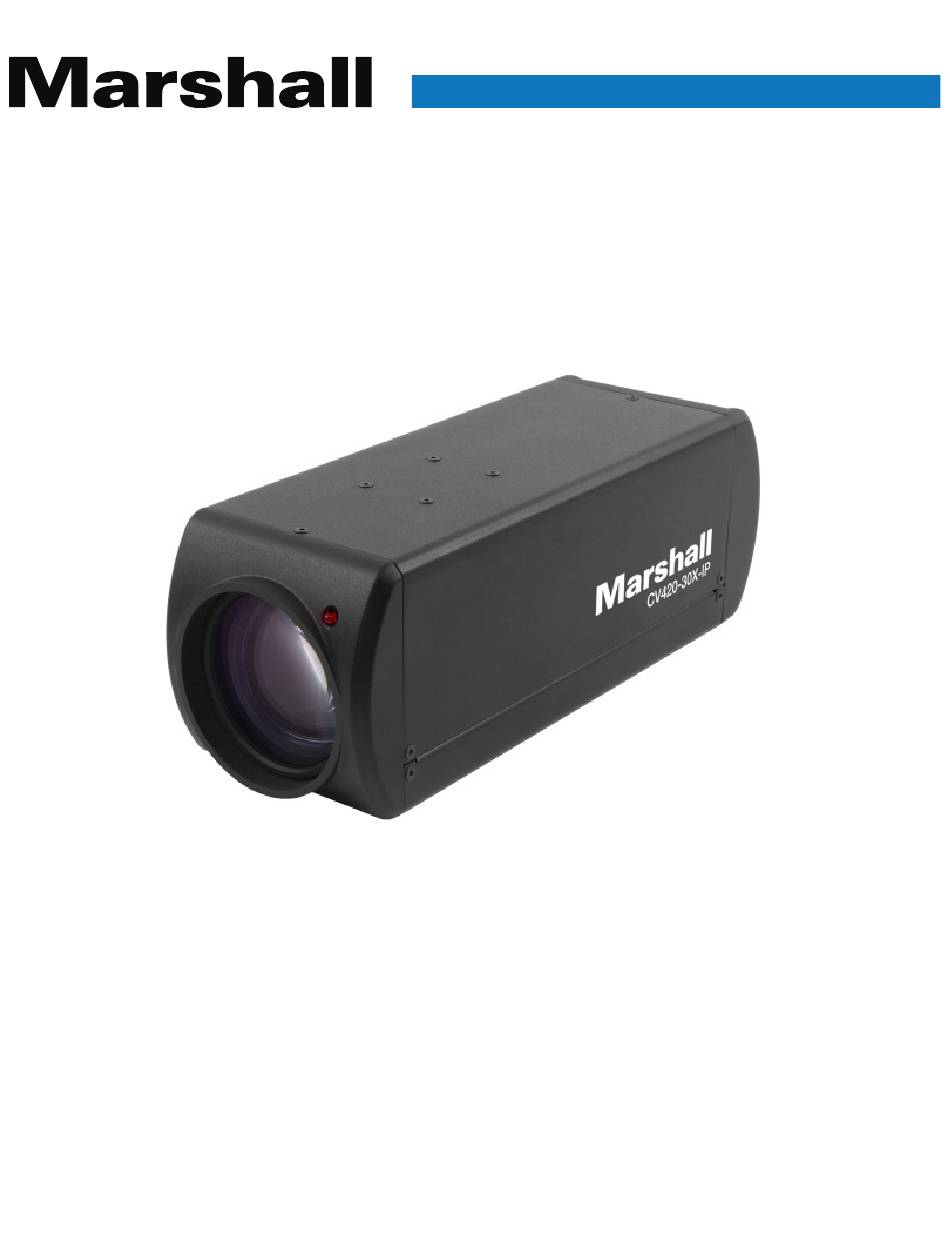

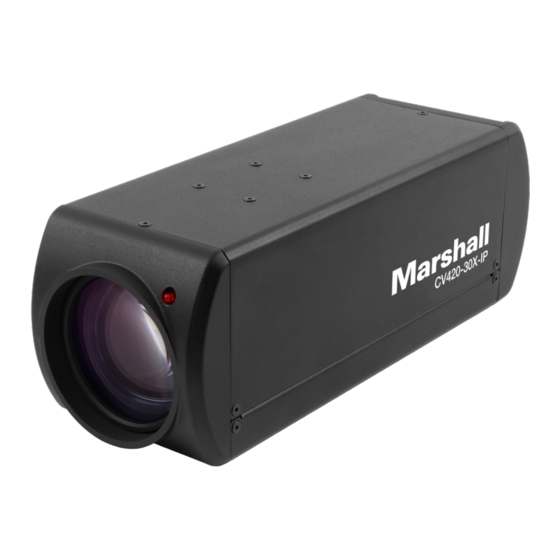

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV420-30X-IP 30X IP Zoom Camera User Manual [Firmware Version 0.43]...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions 1. Package Contents 2. Function Introduction 2.1 I/O Functions Introduction 2.2 Tally Indicator Light Function Description 3. Installation Instructions 3.1 Installation Basics 3.2 Connecting Devices 4. Network Function Settings 4.1 Web System Requirements 4.2 Connecting Camera to Network 4.3 Web Page Function Description 5.

  • Page 3: Safety Instructions

    CV420-30X-IP Manual Safety Instructions 1. Operation 1.1 Use camera in the recommended operating environments. 1.2 Do not place the camera in tilted position. 1.3 Do not place the product on an unstable cart, stand or table. 1.4 Do not use this product near water, extreme humidity or high heat.
  • Page 4 Precautions Warning: To reduce the risk of fire or electric shock, do not expose this camera to rain, moisture, debris or liquids. If the HD camera will not be used for an extended time, unplug it from the power socket. Caution: To reduce the risk of electric shock, do not remove cover (or back).

  • Page 5: Package Contents

    CV420-30X-IP Manual 1. Package Contents CV420-30X-IP Power Cord Power Adapter *Appearance may vary depending on country/region 2. Function Introduction 2.1 I/O functions Introductions Item. Function Descriptions Lens 30x HD/UHD camera lens Tally indicator light Tally light displays status of the camera Network port Network port.

  • Page 6: Tally Indicator Light Function Description

    The setting method is as follows: Tally Mode : 8x 01 7E 01 0A 01 0p FF p = 0 : OFF p = 4 : On (half-brightness) p = 5 : On (full-brightness) 3. Installation Instructions 3.1 Installation Basics 3.1.1 CV420-30X-IP Dimensions...

  • Page 7: Connecting Devices

    CV420-30X-IP Manual Connecting devices 3.2.1 HDMI connection to TV/display screen www.marshall-usa.com...
  • Page 8 3.2.2 Connecting to Internet For details of web page connection setting and description, please refer to Chapter 5 Network Function Settings Description. 3.2.3 Connecting AUDIO IN...
  • Page 9 CV420-30X-IP Manual 3.2.4 Connecting RS-232 CV420 camera includes a RS232 IN and OUT for Daisy Chain style connections, or can be setup via home run using splitters (use CV620-CABLE-07 extenders to convert to CAT RJ45 cables for longer runs). • RS-232 pin definition description...

  • Page 10: Network Function Settings

    2. If the camera is connected to the computer directly, the computer IP address must be modified to have the same network segment as the camera For example, the factory-preset default IP address of CV420-30X-IP is 192.168.100.100. The computer IP address must be set with the same subnet, such as 192.168.100.101, so that the computer can be connected correctly with the camera •...
  • Page 11 CV420-30X-IP Manual 4.2.2 Using Marshall VMS Software to View the Images • The CV420-30X-IP DHCP initial setting is ON. If it is connected to the local area network (LAN), the camera IP can be retrieved via the following methods • Install Marshall VMS software (Please download from the Marshall official website, www.
  • Page 12 4.2.3 Using the Browser to View the Images • Open the browser, and enter the URL of CV420-30X-IP in the IP address bar e.g.: http://192.168.100.100 (default IP address) • Enter administrator’s account and password Account: admin (Default) Password: 9999 (Default) 4.2.4 Using RTSP Player to View the Images...

  • Page 13: Web Page Function Description

    CV420-30X-IP Manual 4.3 Web Page Function Description 4.3.1 Login Screen Item. Function Descriptions Username Enter user account name (default: admin) Password Enter user password (default: 9999) Language selection The system currently supports English, Traditional Chinese, and Simplified Chinese Remember password Saves user account name and password to the browser.
  • Page 14 4.3.2 Viewing In Real Time Item. Function Descriptions Preset setting Select the number first and then select SAVE or LOAD Zoom ratio Adjust the zoom-in or zoom-out ratio via scroll bar Preview window Display the screen currently captured by the camera Switch to Full Screen Switch the preview window to full screen Power button...
  • Page 15 CV420-30X-IP Manual 4.3.3 Account Management Item. Function Descriptions Add user account Enter a username and password to add a new user Permission setting Set the new account management permissions User Type Admin Operator Viewer View images Settings Account management Applying setting...
  • Page 16 4.3.4 System Configurations Item. Function Descriptions Resolution Set the resolution of the camera. Resolutions supported by the camera are as follows: 3840x2160P 59.94/50/29.97 fps 1080P 59.94/50/29.97/25 fps 720P 59.94/50/29.97/25 fps After switching to the resolution, the camera will restart. Please refresh the browser Output signal According to the output resolution, selections are available for HDMI output, streaming output, or HDMI + streaming output.
  • Page 17 Please use a camera name by mixing uppercase and lowercase letters and numbers. Do not use “/” and “space” or special symbols Streaming 1 / The CV420-30X-IP supports 3 streaming outputs. Please refer to 5.3.5.1 Streaming Streaming 2 / Parameter Setting for relevant settings...
  • Page 18 4.3.6 Camera Settings Item. Function Descriptions Zoom ratio Adjust the zoom-in or zoom-out ratio via scroll bar Exposure • Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/Manual ) • Exposure Comp. Level: Select exposure compensation level • Gain: The gain limit is adjustable when the exposure mode is set to “Manual” •...
  • Page 19 CV420-30X-IP Manual 4.3.7 Picture Settings Item Function Descriptions Picture effect Set picture effect, Off / Film / Black and White 2D noise reduction • 2D noise reduction settings settings 3D noise reduction • 3D noise reduction settings settings Image mode •...
  • Page 20 4.3.8 Camera Settings Item. Function Descriptions Open audio Turn on / off sound Soundtrack effect Set MIC In / Line In setting Audio Volume Adjust Volume Encode sample rate Set Encode sample rate • 48 KHz(AAC) • 44.1 KHz(AAC) • 16 KHz(G.711) •...
  • Page 21 CV420-30X-IP Manual 4.3.9 Time Settings Item. Function Descriptions Camera Time Display the date and time of the camera Set the Time • Set Manually: Set time manually • Synchronize with computer time: Set the camera time according to the computer time •...
  • Page 22 4.3.10 Network Settings Item. Function Descriptions Network Network setting of camera. Change of setting is available only when DHCP function is closed. RTMP Setting Copy the RTMP web address provided by the RTMP service platform and paste it to the RTMP connection address to publish the camera images on the RTMP service platform RTSP Setting To upload to YouTube for live streaming, the audio function must be turned on first...
  • Page 23 CV420-30X-IP Manual 4.3.11 Maintenance and Updating Firmware Item. Function Descriptions Firmware Update The camera firmware may be upgraded via web page. For the upgrade method, please download the FW upgrade manual from Marshall website 4.3.12 Incident/Error Logs Item. Function Descriptions...
  • Page 24 4.3.13 Additional Maintenance Settings Item. Function Descriptions Reset to the default Select the reset button to resume the factory default setting as the web page setting value Setting File The web page setting parameters can be exported from the computer and imported/ applied to another camera Baud Rate Set the camera Baud Rate for the use of connecting RS-232 communication...

  • Page 25: Specifications

    CV420-30X-IP Manual 5. Specifications Sensor 1/2.5" 8MP CMOS Video Format "Resolution: 3840x2160p (UHD), 1920x1080p (HD), 1280x720p Sensor 1/2.5" 8MP CMOS Frame-rate : 59.94/50/29.97/25 fps" Video Format "Resolution: 3840x2160p (UHD), 1920x1080p Optical Zoom (HD), 1280x720p Focal Length Frame-rate : 59.94/50/29.97/25 fps"...
  • Page 26 Sharpness Configurable Noise Reduction 2D/3D NR Dynamic Range Ture WDR, 120dB Privacy Mask Spherical Privacy Zone Mask Video Orientation OFF, Flip, Mirror, Both Video Profile Multiple video profiles Video Standard H.265, H.264, MJPEG, Haivision SRT Multiple Video Stream "Triple streaming structure H.265 8M 60fps + H.264 2M 60fps + H.264 D1 30fps + HDMI"...

  • Page 27: Troubleshooting

    CV420-30X-IP Manual 6. Troubleshooting This chapter describes problems you may encounter while using CV420-30X-IP. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem remains, please contact your distributor or the service center.

  • Page 28: Warranty

    Warranty For Warranty information please refer to Marshall website page: https://marshall-usa.com/company/warranty.php 20608 Madrona Avenue, Torrance, CA 90503 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.marshall-usa.com support@marshall-usa.com V.1.0...
