B r o a d c a s t A / V D i v i s i o n

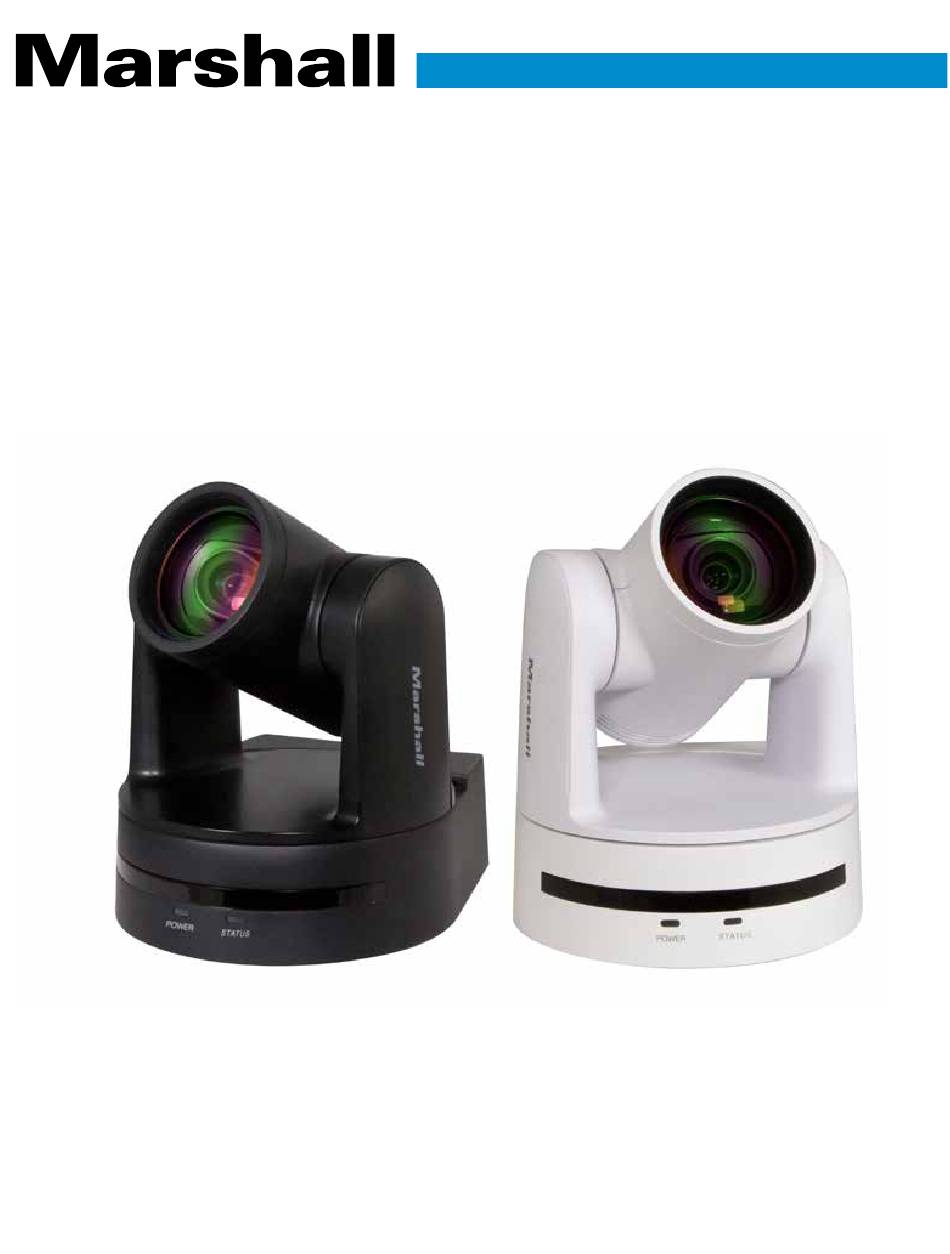

CV612-TBI, CV612-TWI
12x AI Auto Track and Framing PTZ Camera
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CV612-TBI and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Amplification CV612-TBI

Summary of Contents for Marshall Amplification CV612-TBI

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV612-TBI, CV612-TWI 12x AI Auto Track and Framing PTZ Camera User Manual...

  • Page 2: Please Note

    Please Note This manual details features, functions, installation, operation and recommendations. Please read this manual completely before installation and use. Description of use 1. To prevent damage to this camera or other components within the workflow, please use it within its prescribed purpose and scope of operation. 2.

  • Page 3: Table Of Contents

    CV612-TBI/TWI User Manual Contents PLEASE NOTE ............................2 1. INSTALLATION – KEY POINTS ......................5 1.1 M ....................5 OUNTING POINTS AND CONNECTIONS 1.2 P ......................5 OWER ON INITIAL CONFIGURATION 2. PRODUCT OVERVIEW ........................6 2.1 D & A ......................... 6...
  • Page 4 4.2.1 Web client ..........................24 2)Download/Install Plug in ......................24 4.2.2 Preview ..........................24 4.2.4 Configuration ......................... 27 1) Audio Configuration ........................27 2) Video configuration ........................29 4.2.6 Network Configure ........................ 34 4.2.7 System Configure ........................36 4.2.8 Logout............................ 36 5.

  • Page 5: Installation - Key Points

    CV612-TBI/TWI User Manual 1. Installation – Key Points 1.1 Mounting Points and Connections Figure1-1 Camera Physical Features 1. Lens 8. HDMI output interface 2. Power indicator 9. USB3.0 Type-C interface 3. Status indicator 10. 3G-SDI output interface 4. Infrared receiver 11.

  • Page 6: Product Overview

    2. Product overview 2.1 Dimensions & Accessories 2.1.1 Dimensions Figure 2.2 Camera dimensions 2.1.2 Supplied Accessories During unpacking, please check that all the supplied accessories are included: Power adapter – 12Volt IR remote control USB 3.0 Type-C Cable “Thank You” card www.marshall-usa.com...

  • Page 7: Main Features

    CV612-TBI/TWI User Manual 2.2 Main Features The CV612-TBI/TWI camera series offers high quality performance with a rich feature set. The features include advanced ISP processing algorithms to provide vivid images with deep color depth, crisp, and clear HD images with accurate color reproduction.
  • Page 8 Camera Specs 12X (focal length 4.13～49.2mm) + approximately 8X digital Optical / Digital Zoom Digital zoom. When digital zoom is enabled, it applies only after the optical zoom has reached its limit Sensor 1/2.8-inch-high quality HD CMOS sensor 2.07 megapixel imager provides the following outputs Available 3G-SDI / HDMI video formats and frame rates 1920 x 1080p @ 60/59.94/50/30/29.97/25 fps 1920 x 1080i @ 60/59.94/50 fps...
  • Page 9 CV612-TBI/TWI User Manual IP Control Interface Visca-over-IP, ONVIF Serial Control Protocol RS232 via RJ45 connector Supports: Visca, Pelco D, Pelco P protocols Baud Rates: 115200/38400/9600/4800/2400 (9600 Default) Power Interface PoE+ Ethernet or HEC3800 coaxial connector DC12V Supply Adapter AC 110V-AC 220V to DC12V / 2A (included with camera) Input Voltage Range DC12V±10%...

  • Page 10: Remote Control & On-Screen Menus

    3. Remote Control & On-Screen Menus 3.1 Remote Control Keys 3.1.1 Key Explanations 1. Standby Key (power button) Press for 3 seconds, the camera will go into standby mode (low power mode). Press 3 seconds again to wake the camera. Camera will self-test and move to HOME position which is level and straight forward.

  • Page 11: Short Cuts & Special Functions

    CV612-TBI/TWI User Manual Press F1 to turn Auto Tracking off Press F2 to turn Auto Tracking on Press F3 to switch between Single Object tracking and Regional tracking modes Press F4 to capture new target object (person) for Single Object tracking 3.1.2 Short-cuts &...

  • Page 12: On-Screen Menus

    Change video output format (HDMI and SDI) Set 1080p60 Set 1080p50 Set 1080i60 Set 1080i50 Set 720p60 Set 720p50 Set 1080p30 Set 1080p25 Set 720p30 Set 720p25 3.2 ON-SCREEN MENUS Press the MENU key to display the On-Screen (OSD) menus. Use up/down arrows to move to a menu item and press HOME to select it.
  • Page 13 CV612-TBI/TWI User Manual Select English or Chinese Default is English 3.2.2 Monocular Tracking (single-object tracking) Move the pointer to MONOCULAR TRACKING, press the HOME key to set auto tracking Monocular Tracking ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...
  • Page 14 3.2.3 Setup Move the pointer to SETUP, press the HOME key then adjust RS232 communication settings. SETUP ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ Protocol Auto Visca Address...

  • Page 15: Camera

    CV612-TBI/TWI User Manual 3.2.4 Camera Move the pointer to CAMERA, press the HOME key to adjust the camera’s image settings. CAMERA ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...
  • Page 16 Mode Choices: Auto, Manual, Shutter priority, Iris priority and Bright. In any camera, there are multiple ways to adjust the amount of light that is received by the imager. Each method has certain trade-offs. When one of the Priority modes is selected, that one method of light control is adjusted manually while other methods adjust themselves to produce a balance.
  • Page 17 CV612-TBI/TWI User Manual DRC: Dynamic Range Compensation. Works with other modes to adjust overall exposure balance from dark to light. Adjustable 1 to 8 Default is 2 IRIS Priority: Close, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8 (only available in Manual Exposure and...
  • Page 18 3) IMAGE Move the pointer to IMAGE, press the HOME key to adjust various image characteristics IMAGE ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ Brightness Contrast Sharpness...

  • Page 19: Noise Reduction

    CV612-TBI/TWI User Manual 4) FOCUS Move the pointer to FOCUS, then press the HOME key to affect how the camera focuses. FOCUS ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...

  • Page 20: P/T/Z

    Move the pointer to STYLE, press the MENU key then use the Right Arrow key to select a choice Choices are: Default, Meeting, Clarity, Bright, Soft These are pre-built settings that can be quickly selected. Most of these settings have only minor effect Default &...

  • Page 21: Network Settings

    CV612-TBI/TWI User Manual 3.2.6 Network settings Move the pointer to Network Settings then press the HOME key to change DHCP ON/OFF. OFF = Default Static address. Network settings ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝...

  • Page 22: Video Format

    Audio settings ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ Audio Volume [↑ ↑ ↓ ↓ ]Select [←...

  • Page 23: Restore Default

    CV612-TBI/TWI User Manual VERSION ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ ＝ MCU Version 1.0.4 2024-08-12 Camera Version 2.0.5 2024-08-09...

  • Page 24: Ie Log I N

    When it is desired to create a Static address for the camera, a different procedure is required. First, turn DHCP mode OFF. This has the effect of setting the camera to the default IP address of 192.168.5.163. On a Windows computer, set the Ethernet (wired connection) address to a static address in this range. For example, set the computer address to something like 192.168.5.160.

  • Page 25: Preview

    CV612-TBI/TWI User Manual 4.2.2 Preview Screen Immediately after successful log-in the Preview Screen, appears. The camera provides an RTSP stream by default. Camera video should be visible in the Preview screen immediately. There are three areas on the on this page that are important to note.
  • Page 26 PTZ Manual Control Area www.marshall-usa.com...
  • Page 27 CV612-TBI/TWI User Manual TIP: It is sometimes easier to use the IR Remote control to position the camera then save the Preset using the Web Client. PTZ Tracking Control Area Monocular Tracking means “Single Object” tracking. That is, the camera is designed to recognize a single object or person and not be distracted by other persons that may enter the area.

  • Page 28: Configuration

    will attempt to stay with the Presenter despite other objects or persons entering the scene. When Tracking is ON but Zone is selected, the camera will move to that general zone when the subject or Presenter is in the area. It will not track the Presenter but, instead, center on the Zone.

  • Page 29: Audio Configuration

    CV612-TBI/TWI User Manual 1) Audio Configuration Enable: Turns 3.5mm audio input jack ON/OFF. (Note: If Dante AV-H is enabled, this checkbox will be unchecked) Encode Type: AAC Audio format used by IP Stream and USB outputs. Not selectable Sampling Rate: 48000 (48KHz) Sampling rate for audio input and SDI, HDMI embedded outputs. Not selectable.
  • Page 30 Rate control: Choose Constant Bit Rate (CBR) or Variable Bit Rate (VBR). Default is CBR CBR is preferred for video production Image Quality: Set best, better, good, bad, worse and worst. Can only be set in MJPEG or VBR modes. It is recommended that these be left at their highest settings.
  • Page 31 CV612-TBI/TWI User Manual Enable: Turn ON/OFF the main and sub stream. NOTE: RTSP stream is ON by default but not checked. Protocol Type: Select RTSP, RTMP or SRT stream types URL: Enter the current IP address of the camera here. Default is 192.168.5.11 and is just an example.
  • Page 32 Video Parameters: When the Video Parameters item is selected, a small Preview screen appears with tabs for various parameters. These settings are the same as those available using the IR remote control. Refer to section 3.2.3 Camera Settings above for details of each parameter. Note: Click “Refresh”...
  • Page 33 CV612-TBI/TWI User Manual The location of these text messages can be adjusted on this screen using the arrows Show Time: Check the box to display Date and Time as set in the System Configure section below Show Title: Check the box to display Text created in the System Configure section below Font Color of Time: Set color of time and date Choose: white, black, yellow, red or blue.

  • Page 34: Network Configure

    4.2.6 Network Configure 1) Network port Port Data: Used internally by the Web browser Default is 3000 Port Web: Standard port for HTTP Internet traffic Default is 80 Port Onvif: Common port used for ONVIF protocol. ONVIF is typically used for interoperability between various surveillance and security systems Default is 2000 Port Soap: Early Internet protocol but still commonly used by AWS and AZURE Default is 1936 Port RTMP: Common RTMP port.
  • Page 35 CV612-TBI/TWI User Manual 2) Ethernet DHCP: When DHCP is checked, the IP address of the camera will be automatically obtained from the network. Default is ON When DHCP is not checked, the camera will be in Static address mode and the default address (default 192.168.5.163) will be forcibly set.

  • Page 36: System Configure

    It works with the Dante Studio application which is an upgrade to the Dante Controller application. Checking Dante AV-H Enable checkbox disables the camera’s normal audio and uses Dante AV-H instead. When this box and SAVE is checked, the Audio Configure checkbox (top menu item) will be unchecked. Visit www.audinate.com for more information.
  • Page 37 CV612-TBI/TWI User Manual Information entered here can be displayed visibly in the IP and USB streams Device Name: Enter a name or title Default is Camera1 Device ID: Enter a Device ID number if desired Default is 1 NOTE: This does not change the Visca or Pelco ID.
  • Page 38 Update – Release Upgrade Displays current Firmware versions Update File provides ability to update firmware. Check www.MarshallElectronics.net for updates. Updates will be posted when available on the CV612 product page. After updating firmware, reset the camera to Factory Defaults before using. Default Clicking this choice will change ALL settings to Factory Defaults including IP Address and Passwords The camera will restart...

  • Page 39: Serial Communication Control

    CV612-TBI/TWI User Manual 5. RS232 Communication Control In addition to IP control, the CV612 camera can also be controlled via the RS232 jack (RJ45 connector) on the camera base. Accepted protocols are: VISCA, Pelco-D and Pelco-P. 5.1 VISCA protocol list In the list below, replace “x”...

  • Page 40: Inquiry Command

    8x 01 04 0B 02 FF CAM_Iris Iris setting Down 8x 01 04 0B 03 FF 8x 01 04 33 02 FF CAM_Backlight Back light compensation on/off 8x 01 04 33 03 FF 8x 01 04 61 02 FF CAM_LR_Reverse LR reverse on/off 8x 01 04 61 03 FF 8x 01 04 62 02 FF...

  • Page 41: Pelco -Dprotocol Command List

    CV612-TBI/TWI User Manual y0 50 03 FF y0 50 02 FF CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 03 FF y0 50 02 FF CAM_FreezeModeInq 8x 09 40 62 FF y0 50 03 FF y0 50 02 FF 8x 09 04 15 FF...

  • Page 42: Pelco -Pprotocol Command List

    5.3 Pelco-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right...

  • Page 43: Troubleshooting

    CV612-TBI/TWI User Manual 6.2 Troubleshooting 1) No video output Check to see if camera power supply is connected, the voltage is normal and the Status light is Green. Is camera in self-inspection or initiation mode during a restart (power-cycle). Check that the monitor or other device is compatible with the video output settings.
