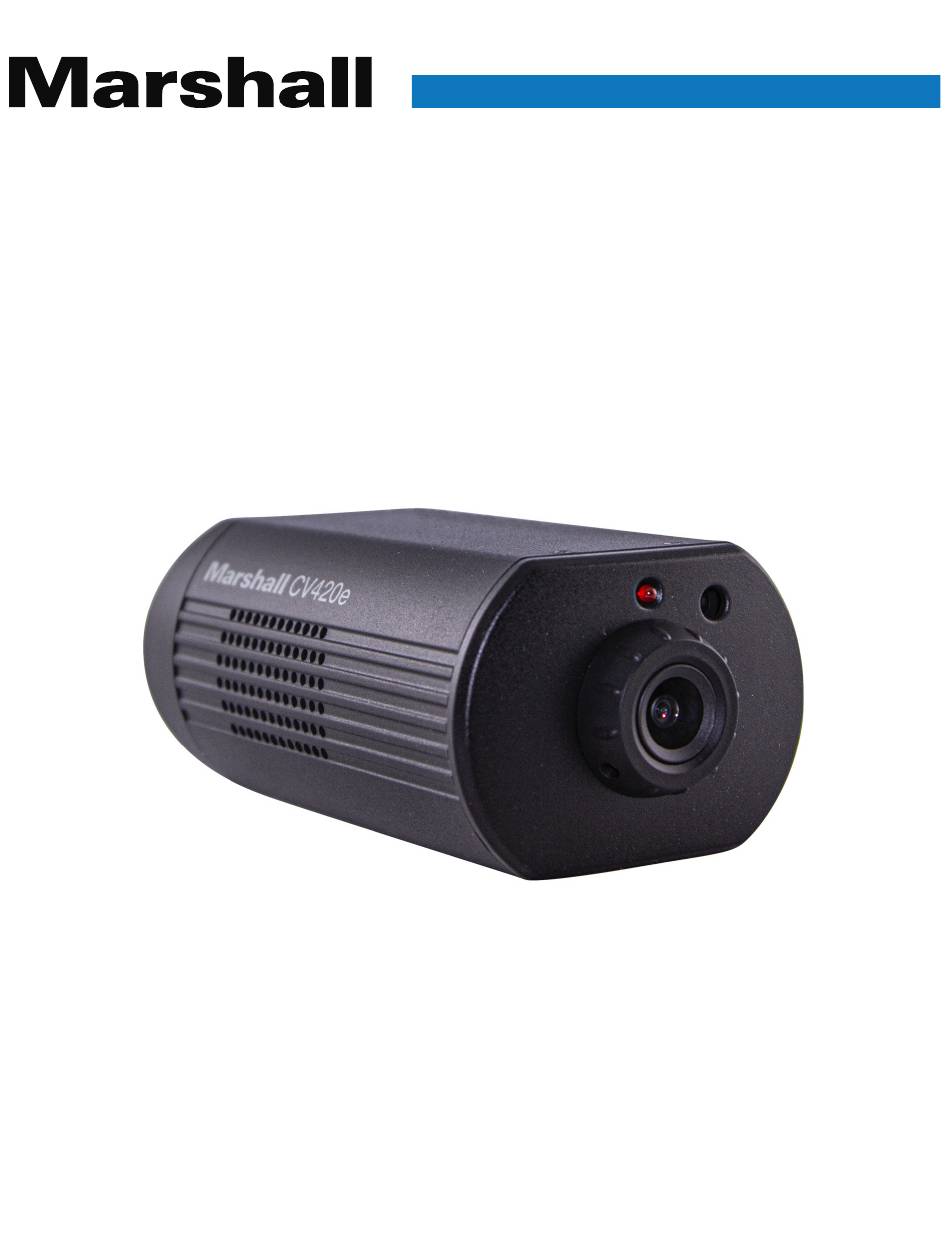

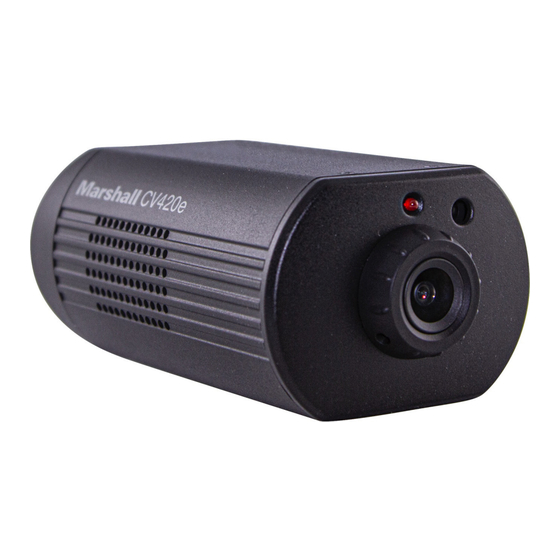

- Page 1 B r o a d c a s t A /V D i v i s i o n CV420/ CV420Ne UHD60 ePTZ Compact Camera (USB, IP & HDMI) User Manual...
- Page 2 CV420e/ CV420Ne User Manual CHAPTER 1: PACKAGE CONTENTS Table of Contents Chapter 1 Package Contents .................... 2 CV420e/CV420Ne Power Cord Power Adapter Chapter 2 Function Introduction ..................3 I/O functions Introduction ................3 Tally Lamp Function Description ............. 3 Chapter 3 Instruction for installation ................4 Basic Devices ......................4 Chapter 4...
- Page 3 CV420e/ CV420Ne User Manual CHAPTER 2: FUNCTION INTRODUCTION CHAPTER 3: INSTRUCTIONS FOR INSTALLATION 2.1 I/O Functions Introduction 3.1 Basic Devices Front View Back View 3.1.1 Dimensions Bottom Length x Width x Height: 122.06 x 70 x 51 mm Weight: 0.35 Kg Item Function Descriptions IR receive...
- Page 4 CV420e/ CV420Ne User Manual CHAPTER 4: SYSTEM DIAGRAM CHAPTER 5: REMOTE CONTROL & SETTING MENU 5.1 Functions of Remote Control *IR remote included in this package Power Supply AV over IP switch Item Description v w r s v w r s Move the lens Turn on/off back light Back Light...
- Page 5 CV420e/ CV420Ne User Manual 5.2 Setting Menu Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults. www.marshall-usa.com...
- Page 6 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 7 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 8 CV420e/ CV420Ne User Manual CHAPTER 6: NETWORK FUNCTION SETTING DESCRIPTION 6.1 Web System Requirements 6.2 Connecting Camera to Network Two common connection methods are shown below 1. Connecting via switch or router AV over IP switch 2. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera E.g.: The factory-preset default IP address of the camera is 192.168.100.100.
- Page 9 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 10 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 11 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 12 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 13 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 14 CV420e/ CV420Ne User Manual www.marshall-usa.com...
- Page 15 CV420e/ CV420Ne User Manual Boot without power signal There is no image output from CV420e/CV420Ne CV420e/CV420Ne image is severely delayed. RS-232 over IP cannot be controlled. The ONVIF software cannot find the machine www.marshall-usa.com...
- Page 16 CHAPTER 8: SAFETY INSTRUCTIONS Warranty Always follow these safety instructions when setting up and using the CV420e/CV420Ne Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date.
