LED Bar 240/8 RGB
LED floodlight
user manual

Advertisement

Table of Contents
loading

Related Manuals for Stairville LED Bar 240/8 RGB

Summary of Contents for Stairville LED Bar 240/8 RGB

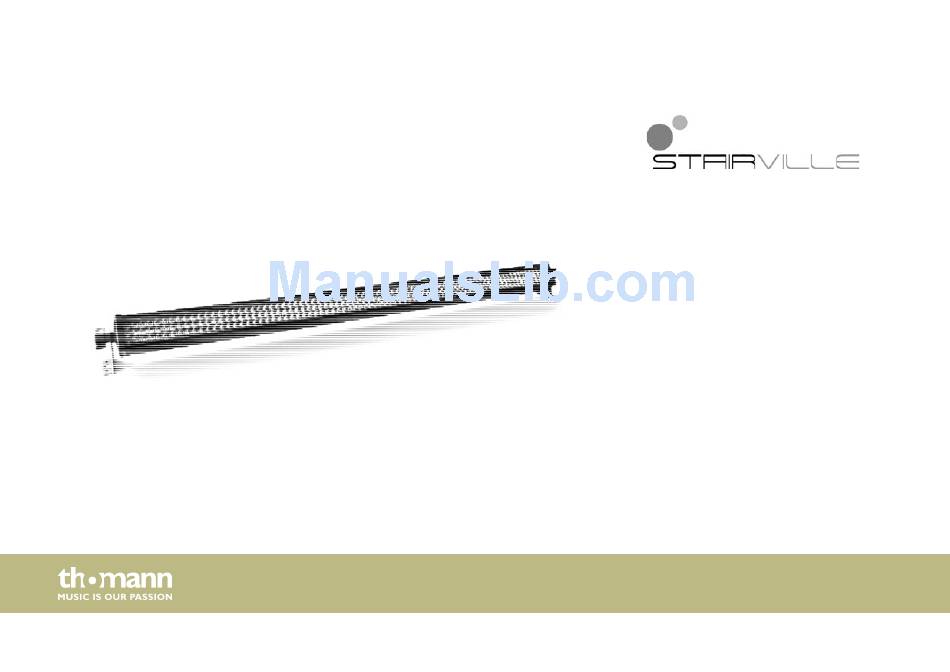

  • Page 1 LED Bar 240/8 RGB LED floodlight user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.08.2015, ID: 294835 (V2)

  • Page 3: Table Of Contents

    Starting up..............................20 Connections and operating elements................... 23 Operating..............................26 7.1 Starting up the device........................26 7.2 Main menu............................26 7.3 Menu overview..........................35 7.4 Functions in 2-channel DMX mode................... 37 7.5 Functions in 3-channel DMX mode................... 39 LED Bar 240/8 RGB...
  • Page 4 Table of contents 7.6 Functions in 5-channel DMX mode................... 39 7.7 Functions in 24-channel DMX mode..................40 Technical specifications........................43 Plug and connection assignments....................44 Troubleshooting............................45 Cleaning............................... 47 Protecting the environment......................48 LED floodlight...

  • Page 5: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. LED Bar 240/8 RGB...

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. LED Bar 240/8 RGB...
  • Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General notes Warning signs Type of danger Warning – danger zone. LED Bar 240/8 RGB...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 11 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. LED Bar 240/8 RGB...
  • Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 13 Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. LED Bar 240/8 RGB...
  • Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 15: Features

    240 LEDs (96 × red, 72 × green, 72 × blue) in eight segments Control via DMX (4 different modes) or buttons and display on the unit 21 preprogrammed automatic shows Sound control Master / slave mode Robust metal housing LED Bar 240/8 RGB...

  • Page 16: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. LED Bar 240/8 RGB...
  • Page 18 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the device standing or hanging upside down.
  • Page 19 Installation Please note that this device must not be connected to a dimmer. LED Bar 240/8 RGB...

  • Page 20: Starting Up

    Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. LED floodlight...
  • Page 21 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Bar 240/8 RGB...
  • Page 22 Starting up DMX indicator When the display is flashing in ‘DMX’ mode, no DMX signal is received. Perhaps the DMX con‐ troller is shut down or the wiring is incorrect. If the display lights up solid, the device is receiving a valid DMX signal. Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode...

  • Page 23: Connections And Operating Elements

    Connections and operating elements Connections and operating elements LED Bar 240/8 RGB...
  • Page 24 Connections and operating elements 1 Locking screws for the mounting bracket. 2 Mounting bracket. 3 [POWER In] IEC chassis plug for operating voltage supply. 4 [FUSE 1A/250V] Fuse holder. 5 Display. 6 [Mode] button Activates the main menu and toggles between menu items. 7 [Setup] button Selects an option of the respective operating mode.
  • Page 25 Navigates downwards in a menu list. Decrements the displayed value by one. 10 [DMX In] DMX input. 11 [DMX Out] DMX output. 12 [POWER Out] IEC chassis socket for the power supply cable to the next unit. LED Bar 240/8 RGB...

  • Page 26: Operating

    Operating Operating 7.1 Starting up the device Connect the unit to the power grid to start the operation. After a few seconds, the display shows a running reset. The unit is then ready for use. 7.2 Main menu Press [Mode] to activate the main menu and to select an operating mode. Use [Up] and [Down] to change the respectively indicated value.
  • Page 27 ‘1xxx’ (background colour) or ‘2xxx’ (hopping colour). With [Up] and [Down] you can toggle between the following options: Display Description ‘--r’ ‘-rg’ Red and green ‘--g’ Green ‘-gb’ Green and blue ‘--b’ Blue LED Bar 240/8 RGB...
  • Page 28 Operating Display Description ‘-rb’ Red and blue ‘rgb’ Red, green and blue ‘ OFF’ LEDs off To adjust the speed of the selected automatic show, press [Setup] repeatedly until the display shows ‘SPxx’ . With [Up] and [Down] you can now select a value between ‘SP01’ (slow) and ‘SP99’...
  • Page 29 ‘Fdxx’ . With [Up] and [Down] you can now select a value between ‘Fd00’ (slow) and ‘Fd99’ (fast). Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB...
  • Page 30 Operating DMX address This setting is only relevant if the unit is controlled via DMX. Press [Mode] repeatedly until the display shows ‘dxxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d001’...
  • Page 31 Press [Mode] repeatedly until the display shows ‘SLAv’ . Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB...
  • Page 32 Operating Sound-control and microphone A sound-controlled automatic show can only be activated if the unit is working in stand-alone sensitivity mode or as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SUxx’...
  • Page 33 Press [Setup]. With [Up] and [Down] to choose from the following options: Display Description ‘I--r’ ‘2-rg’ Red and green ‘3--g’ Green ‘4-gb’ Green and blue ‘5--b’ Blue ‘6-rb’ Red and blue ‘7rgb’ Red, green and blue ‘ OFF’ LEDs off LED Bar 240/8 RGB...
  • Page 34 Operating To adjust the flash frequency, press [Setup] repeatedly until the display shows ‘FSxx’ . With [Up] and [Down] you can now select a value between ‘FS00’ (slow) and ‘FS99’ (fast). Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes.

  • Page 35: Menu Overview

    Operating 7.3 Menu overview LED Bar 240/8 RGB...
  • Page 36 Operating LED floodlight...

  • Page 37: Functions In 2-Channel Dmx Mode

    Constant unicoloured pattern in blue 48…55 Constant unicoloured pattern in blue and red 56…63 Constant unicoloured pattern in red, green and blue 64…231 Preprogrammed automatic shows 232…255 Sound-controlled shows Function depends on settings in channel 1 LED Bar 240/8 RGB...
  • Page 38 Operating Channel Value Function Channel 1 = 0…63 No function Channel 1 = 64…231 0…255 Increasing speed Channel 1 = 232…255 0…255 Sensitivity of the built-in microphone for sound control LED floodlight...

  • Page 39: Functions In 3-Channel Dmx Mode

    0…255 Intensity (0 % to 100 %) of the 96 red LEDs 0…255 Intensity (0 % to 100 %) of the 72 green LEDs 0…255 Intensity (0 % to 100 %) of the 72 blue LEDs LED Bar 240/8 RGB...

  • Page 40: Functions In 24-Channel Dmx Mode

    Operating Channel Value Function 0…255 Dimmer (0 % to 100 %) for all LEDs 0…255 Strobe effect, increasing speed 7.7 Functions in 24-channel DMX mode Channel Value Function 0…255 Intensity (0 % to 100 %) of the red LEDs in the 1. segment 0…255 Intensity (0 % to 100 %) of the green LEDs in the 1.
  • Page 41 Intensity (0 % to 100 %) of the green LEDs in the 6. segment 0…255 Intensity (0 % to 100 %) of the blue LEDs in the 6. segment 0…255 Intensity (0 % to 100 %) of the red LEDs in the 7. segment LED Bar 240/8 RGB...
  • Page 42 Operating Channel Value Function 0…255 Intensity (0 % to 100 %) of the green LEDs in the 7. segment 0…255 Intensity (0 % to 100 %) of the blue LEDs in the 7. segment 0…255 Intensity (0 % to 100 %) of the red LEDs in the 8. segment 0…255 Intensity (0 % to 100 %) of the green LEDs in the 8.

  • Page 43: Technical Specifications

    Operating supply voltage 100 … 240 V (AC), 50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow Dimensions (W × H ×D) 1064 mm × 65 mm × 88 mm Weight 2.6 kg LED Bar 240/8 RGB...

  • Page 44: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 45: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Bar 240/8 RGB...
  • Page 46 Troubleshooting Symptom Remedy The unit does not work, no light. Check the mains connection and the fuse. No response to the DMX con‐ 1. When the display is flashing, e.g. ‘d001’ , no valid DMX troller. signal can be received. Make sure that the DMX con‐ troller is turned on.

  • Page 47: Cleaning

    The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. LED Bar 240/8 RGB...

  • Page 48: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 49 Notes LED Bar 240/8 RGB...
  • Page 50 Notes LED floodlight...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
