Hearth & Home CAK4A Installation Instructions

Chimney air kit

Advertisement

Models:
CAK4A Chimney Air Kit
This chimney air kit has been tested and listed to the UL 127 Standard and the ULC S610 Standard for use on the Hearth &
Home Technologies, inc. factory-built fireplaces by Underwriters Laboratories, Inc. If you need assistance during installation,
please contact your local dealer. For a dealer nearest you, please visit www.hearthnhome.com.

1. Description

You must first verify you have the correct kit for your HHT fireplace. Refer to your installation instructions/owner's
manual for the correct chimney air kit (CAK) to be used. The CAK4A includes a chimney air box assembly, an out
side air inlet vent hood with stucco flange, two wire ties and a hardware package. See Figure 1.

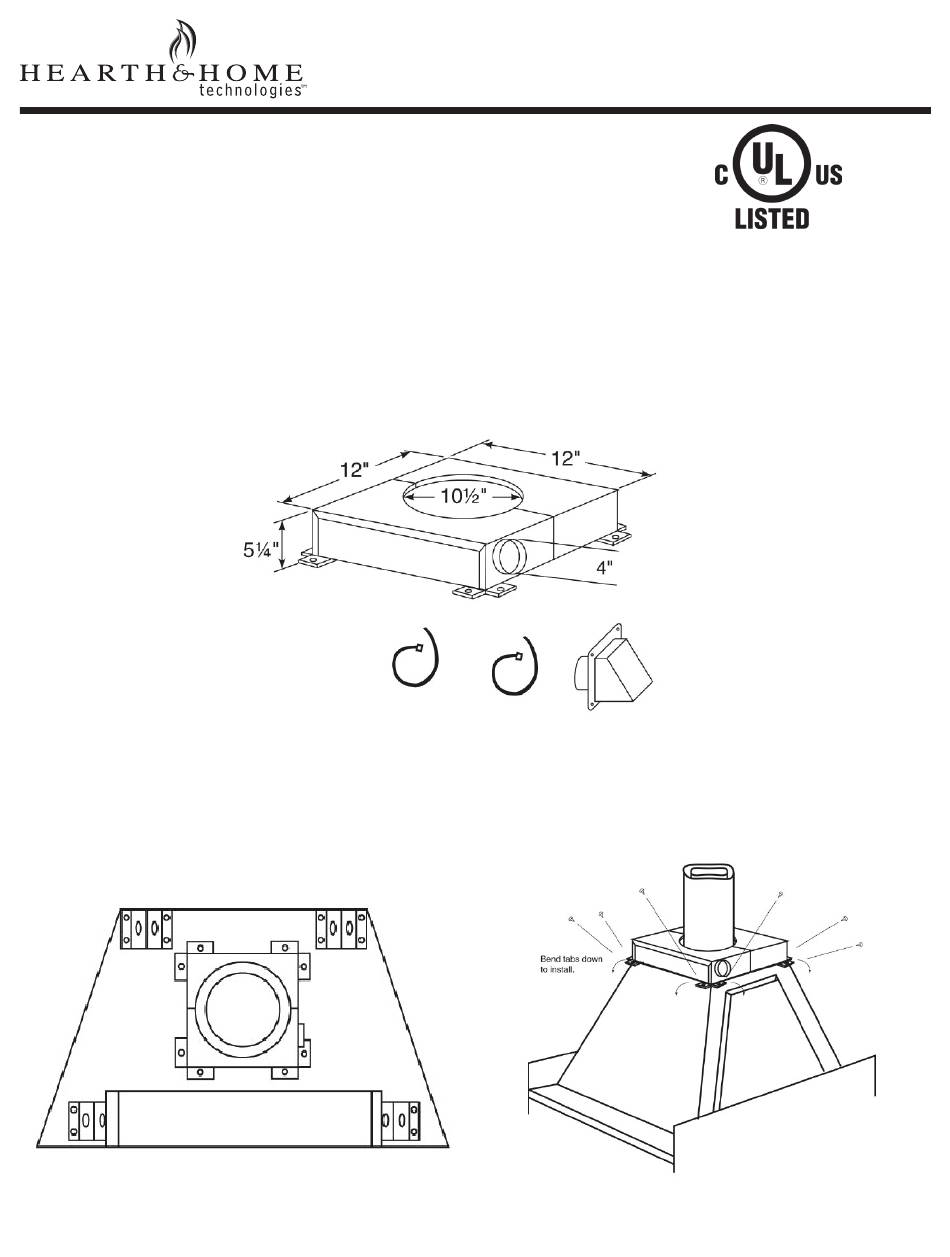

Figure 1
CAK4A - Chimney Air Kit

2. Installation

Once the chimney pipe is installed, place the box on top of the fireplace around the chimney pipe and attach the two
halves of the CAK together. See Figures 2 and 3. Installation on a see-through fireplace will require bending the tabs
down to match the angle of the top pan/smoke shield. See Figure 3.
Use the pre-punched holes in the tabs as guides and drill 3/32" holes through the fireplace top.
Secure the box with the screws provided.
Figure 2
CAK4A - On Top of Fireplace
tm
Hearth & Home Technologies • CAK4A • 35123 Rev E • 12/19
Figure 3
CAK4A - On top of See-Through Fireplace
Installation
Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAK4A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hearth & Home CAK4A

  • Page 1 You must first verify you have the correct kit for your HHT fireplace. Refer to your installation instructions/owner’s manual for the correct chimney air kit (CAK) to be used. The CAK4A includes a chimney air box assembly, an out side air inlet vent hood with stucco flange, two wire ties and a hardware package. See Figure 1.
  • Page 2 Class 0 or Class 1 Note: The pipe ducting Recommend cannot lay on top around 24 inche of the unit. for a minimum bend Figure 4 P Trap Installation Using Flex Pipe Hearth & Home Technologies • CAK4A • 35123 Rev E • 12/19...
