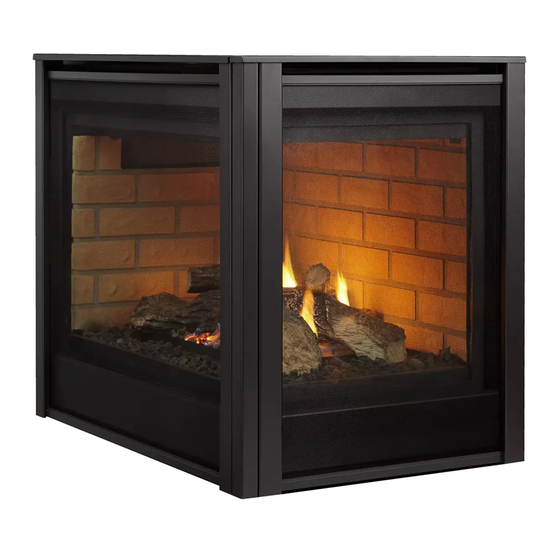

Hearth & Home COREP-36BK Installation Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed behind a decorative front.
CAUTION! Do not install damaged components.

PREPARATION

1. Remove end panel and decorative front components
from packaging. The appropriate hood(s) for a left or
right-sided corner application have been included with
the end panel. See Figure 1.
Note: The end panel is shipped in either a right or left
corner confi guration. Detemine if the confi guration re-
ceived is compatible with your application. To convert for
use on an opposite corner model, follow the steps below:
2. Remove existing hood and corner post.
To install corner post, insert tabs into the slots on the
opposite side of the decorative front.
3. Install the appropriate hood by inserting studs into the
holes on the top of the decorative front and corner
post. Attach nuts to secure the hood onto the decora-
tive front. See Figure 1.

INSTALLATION

4. Install 4 shoulder bolts on each side of the appliance.
See Figure 2. Shoulder bolts are supplied with the
decorative front.
Corner End Panel
Models: COREP-36BK
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Hearth & Home Technologies • COREP-36BK End Panel Instructions • 2486-931 • 2/17
Hood(s) Included
RIGHT CORNER INSTALLATION
LEFT CORNER INSTALLATION
STUDS
NUTS

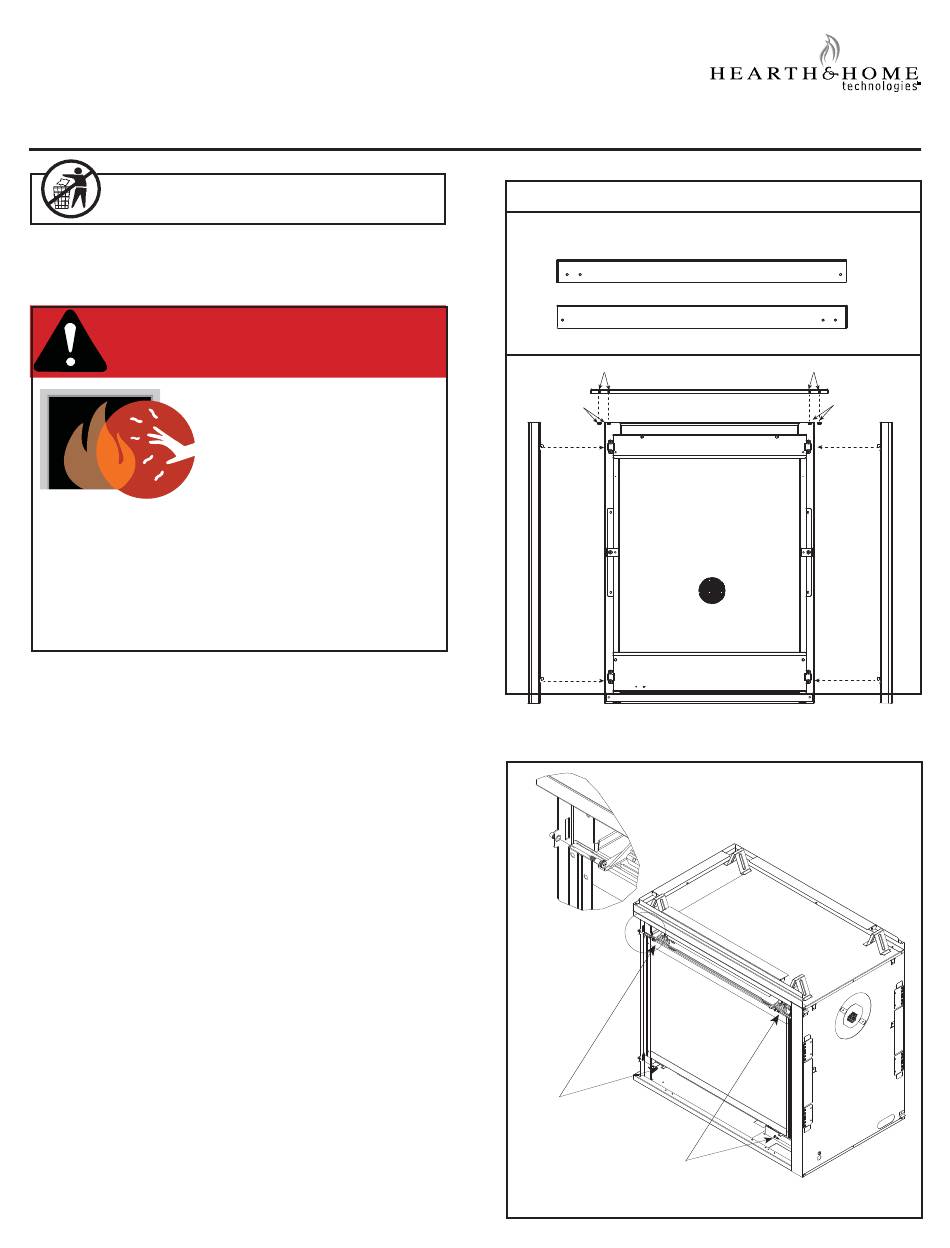

Figure 1. Install Corner Posts and Hood
SHOULDER BOLT
LOCATIONS
SHOULDER BOLT
LOCATIONS
Figure 2. Install Shoulder Bolts
STUDS
NUTS
1
