Hearth & Home FOLIO Series Installation Instructions

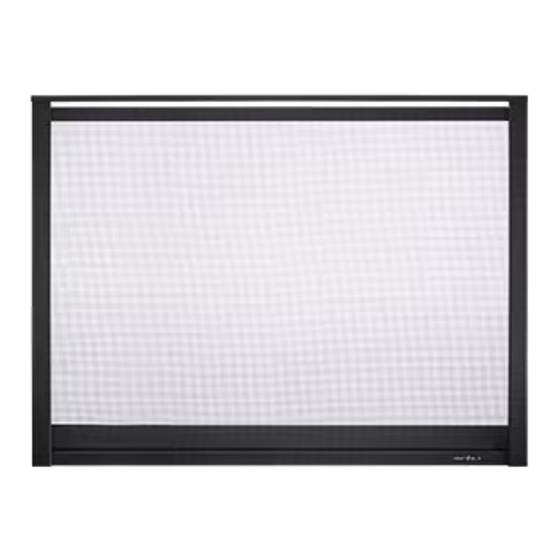

FOLIO, CALI, ESSENCE, CAMBREE, CAULDRON Decorative Fronts
FOLIO-6, FOLIO-8, CALI36, CALI42, ESSENCE36, ESSENCE42,
CAMBREE36, CAMBREE42, CAULDRON36, CAULDRON42
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed behind a decorative front.
CAUTION! Do not install damaged components.
Preparation
1. Remove contents from packaging.
Note: Finishing strips are not used with these decorative
fronts, but are shipped with some appliance models. Ensure
finishing strips are removed from control cavity of appliance
and discarded before beginning installation of decorative
front.
Hearth & Home Technologies • FOLIO, CALI, ESSENCE, CAMBREE, CAULDRON Decorative Front Instructions • 2592-930 Rev. C • 7/22
1
- Installation Instructions for all available color choices -
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Installation Instructions
Cambree / Cauldron Only:
1. Remove hood clips from manual bag and install on
fireplace in locations shown in Figure 1.
2. Cambree/Cauldron fronts only: Center the hood at the
top of the discharge opening and slide it into the hood
clips as shown in Figure 2. Ensure it is fully seated
into the hood clips.

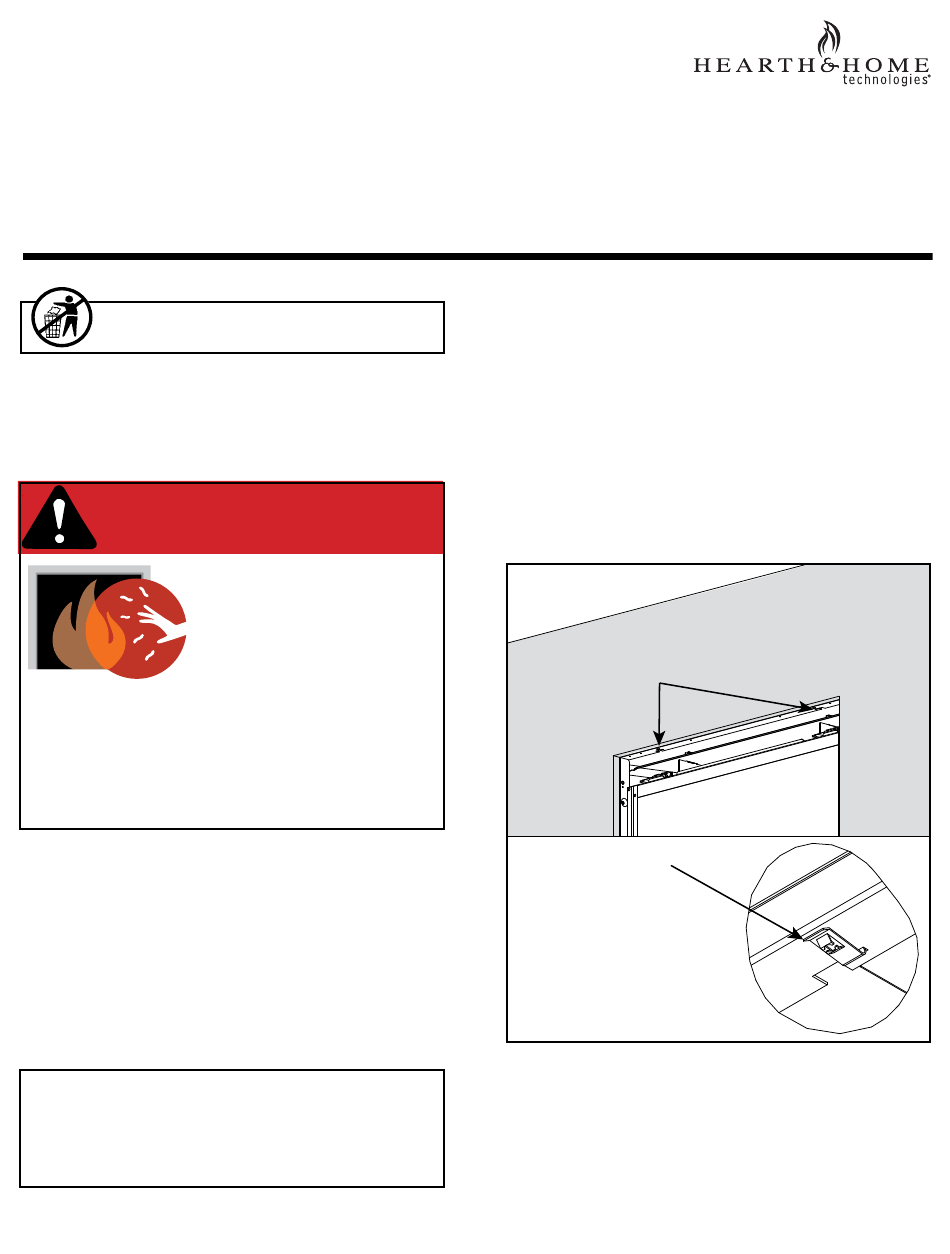

HOOD CLIP LOCATIONS
HOOD CLIP INSTALLATION
Figure 1 Hood Clip Locations (Cambree and Cauldron Only)
