Hearth & Home Contour60 Installation Instructions

Mesh door kits

Advertisement

Quick Links

Models:
Contour60
Contour80
Contour100
Mesh Door Kits
These mesh door kits have been tested for use with specific Hearth & Home Technologies products. Check with your local
building code agency before you begin installation to ensure compliance with local codes, including the need for permits
and follow-up inspections. If you encounter any problems regarding code approvals, or if you need clarification of any of
the instructions contained here, contact your Hearth & Home Technologies Inc. dealer. For the dealer nearest you, please
visit www.hearthnhome.com.
NOTICE:
Frame assembly must be installed prior to finishing
front of fireplace.
CAUTION! Risk of Cuts/Abrasions.
gloves and safety glasses during installation. Sheet metal
edges are sharp.
WARNING
Hot screen/mesh and glass doors will cause burns.
Do not touch screen/mesh or glass doors until cooled
NEVER allow children to touch screen/mesh or glass
doors
Keep children away
CAREFULLY SUPERVISE children in same room as
fireplace.
Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
Keep clothing, furniture, draperies and other flammable
materials away.
Hearth & Home Technologies • Contour Mesh Doors • 4017-237 Rev D • 07/19
tm
Note: An arrow () found in the text signifies change in content.
Wear protective
HOT SURFACES!
Screen/mesh, glass doors and
other surfaces are hot during
operation AND cool down.
NOTICE:
All fingerprints and smudges must be wiped clean
from the viewable surfaces of the door kit prior to the initial
burning of the fireplace. If this is not done, these prints and
smudges will be cured into the finish and set for the life of
the fireplace. To keep the finish looking its best, gently wipe
with a soft cloth and if desired, soap and water. Never use
thinner or abrasive cleaners since these products will damage
the finish.

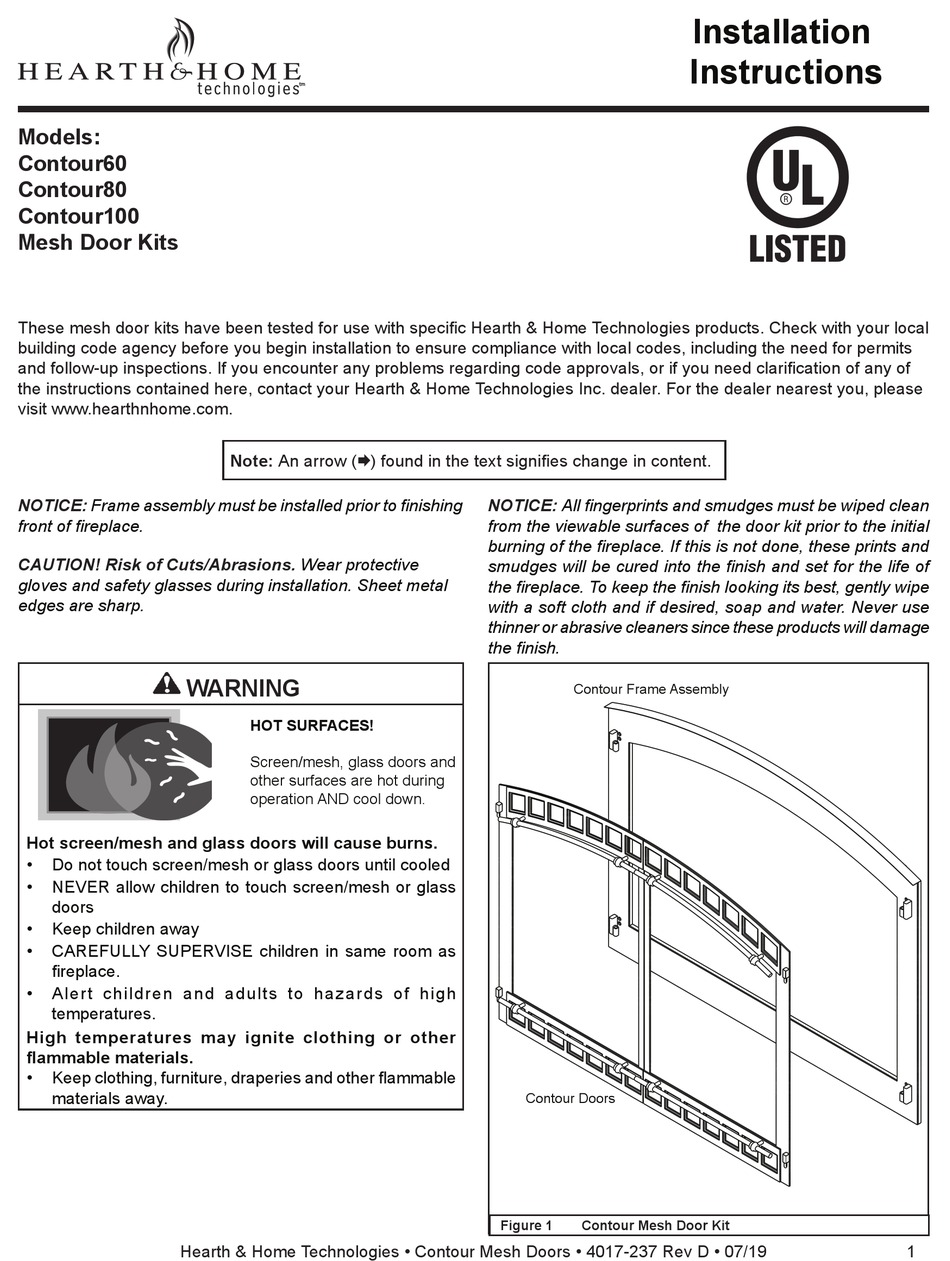

Contour Frame Assembly
Contour Doors
Figure 1
Contour Mesh Door Kit
Installation
Instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Contour60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hearth & Home Contour60

  • Page 1 Installation Instructions Models: Contour60 Contour80 Contour100 Mesh Door Kits These mesh door kits have been tested for use with specific Hearth & Home Technologies products. Check with your local building code agency before you begin installation to ensure compliance with local codes, including the need for permits and follow-up inspections.
  • Page 2 CAUTION! The mesh door kit is heavy. We recommend two installers to put the frame assembly in place. A. Remove the existing screens from the fireplace: • Remove one screw in each of the screen rods behind Upper Screen Cover the screen cover (refer to Figure 2).
  • Page 3 Noncombustible facing butted to the hood of the frame assy Noncombustible facing butted to the edge of the frame assy Figure 4 Finish to Outside Edges of Frame Assembly Figure 5 Completed Contour Mesh Door Installation  Handle Alignment The bars (straight and arched) of the doors may need to be loosened and adjusted to align door handles when final fit up is done.
  • Page 4 Contour Front Dimensions NOTE: CONTOUR FRONTS MUST BE INSTALLED BEFORE APPLYING ANY FINISHING MATERIALS I100 Figure 7 Contour Front Dimensions Hearth & Home Technologies • Contour Mesh Doors • 4017-237 Rev D • 07/19...
