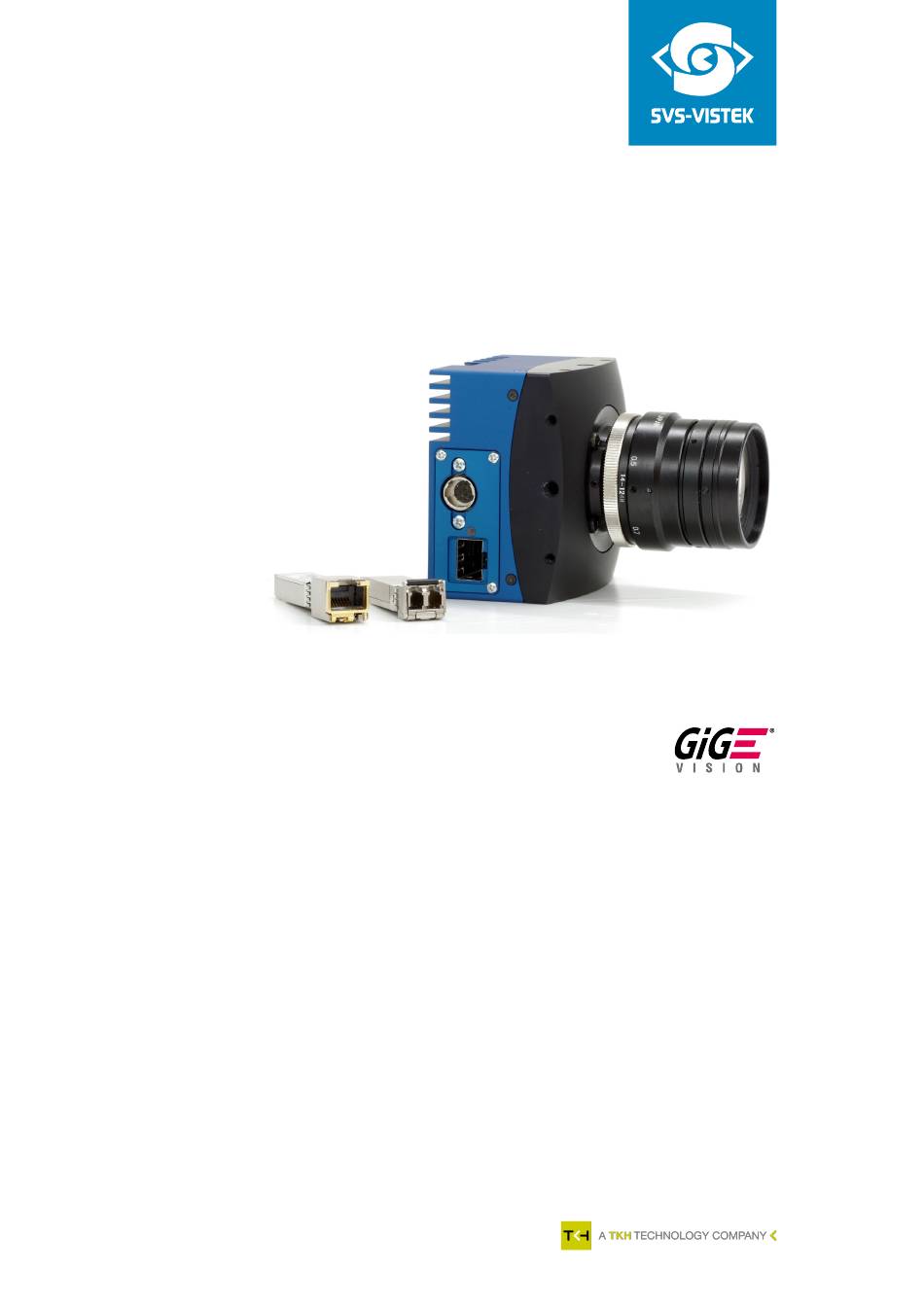

  • Page 1 EoSens® Creation 2.0XGE User Guide...

  • Page 2: Table Of Contents

    Content Before you start About this manual 1.1.1 Tips, remarks, and notes 1.1.2 Registered trademarks 1.1.3 Conformity and use 1.1.4 Supplements Warranty and non-warranty clause Support Introduction Intended use Scope of delivery Optional accessories System requirements The camera Camera description Operating temperature Additional cooling Interfaces of the camera...
  • Page 3 5.5.1 Monochrome Appendix Declaration of Conformity...

  • Page 4: Before You Start

    Before you start About this manual This manual contains helpful information to install and operate the described cam- era. It has been produced with care. Nevertheless, information might be erroneous or incomplete. Mikrotron GmbH cannot be held responsible for any problems resulting from incomplete or erroneous information.

  • Page 5: Supplements

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions given in this guide, may cause harmful interference to radio communications. Operation of this equipment in a res- idential area is likely to cause harmful interference in which case the user will have to correct the interference at its own expense.

  • Page 6: Warranty And Non-Warranty Clause

    Life support applications The products described in this manual are not designed for use in life support appli- ances or devices and systems where malfunction of these products can reasonably be expected to result in personal injury. NOTICE Mikrotron customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Mikrotron for any damages res- ulting from such improper use or sale.

  • Page 7: Introduction

    Introduction Intended use The camera EoSens® Creation 2.0XGE belongs to the product class of so-called high-speed machine vision (MV) cameras that are integrated into test or meas- urement systems. High-speed MV cameras are designed to capture images with high frame rate for various purposes in an industrial or scientific environment to deliver image data for further analysis.

  • Page 8: System Requirements

    Cables and transceiver modules For connecting the camera, one of the following cables and transceiver module com- binations must be used. Ethernet cable (CAT  6a or higher with RJ45 connector) and two SFP+ trans- ceiver modules (10GBASE-T) for distances up to 30  m, available from Mikrotron ...

  • Page 9: The Camera

    The camera Camera description The benefits of the CMOS technology are high speed, random access to pixels with free programmability and low power consumption. The size and position of the region of interest and the speed of data output are free to define.

  • Page 10: Operating Temperature

    UV  /  IR cut filter In addition, color cameras are equipped with an UV  /  IR cut filter. Light with wavelengths between 370  nm and 670  nm will be transmitted. As CMOS sensors are susceptible to UV and IR rays outside the visible spectrum, UV  /  IR filter avoid blurred images and therefore improve color images.

  • Page 11: Interfaces Of The Camera

    Interfaces of the camera Fig.: 3-1: Interfaces of the camera EoSens® Creation 2.0XGE 1 12 pin Hirose power connector used when an external power supply (12 - 24 V) has to be connected, an external trigger is connected and / or an output signal is used. 2 Status LED to verify the operating status of the camera 3 Module slot...

  • Page 12: First Steps

    First steps Connecting camera and image processing system Fig.: 4-1: Connecting the camera and image processing system 1. Install the frame grabber software on the image processing system (see doc- umentation of frame grabber board). 2. Switch off the image processing system  (1). 3.

  • Page 13: Connecting An External Power Supply Or I/O Signals

    Connecting an external power supply or I/O signals The external 12 - 24  V DC power supply (min. 18 W)must be connected with the 12- pin connector at the rear of the camera (refer to "Connecting camera and image pro- cessing system"...

  • Page 14: The Power-Up Profile

    All inputs can also accept signals with 12  V and 24  V. NOTICE An open (not connected) input will be interpreted as high level from the camera. For low level an input voltage of 0 - 0.3V must be connected. Fig.: 4-3: IO signals If the available external signal cannot deliver a low level voltage <0.3 ...

  • Page 15: Cleaning Sensor And Lens

    Cleaning sensor and lens Unplug the camera before you clean any parts! Never open the housing when cleaning the window of the sensor. If the camera has been opened, the warranty will be void. 1. If there are coarse particles on the lens or the window of the sensor, use a vacuum cleaner to remove them before cleaning to prevent scratches.

  • Page 16: Technical Data

    Technical data Camera specifications Frame rate (8 bit) 536  fps Pixel depth 8 /10 bit Shutter speed 2 µs – 999999 µs Shutter time (steps) 1 µs Max. Jitter ±4 ns Triggermodi Timer / pulse width Max. Trigger fre- 300 kHz quency Quantum efficiency >45% @ 550 nm...

  • Page 17: Sensor Specifications

    Sensor specifications Sensor type LUX19HS, CMOS global shutter Image sensor size 19.2 x 10.8 mm Resolution 2.0 Megapixel Active pixels 1920 x 1080 px ROI min. 128 x 8 px Pixel depth 8 bit / 10 bit Pixel size 10 x 10 μm Light sensitivity 20 V/lux*s @ 550 nm (6,400 / 5,000 ASA) Dynamic range up to 56 dB...
  • Page 18 Fig.: 5-1: Rear view (fanless) 57,1 Fig.: 5-2: Side view (fanless) with C-mount adapter 5 Technical data...
  • Page 19 84,6 45,5 active sensor plane Fig.: 5-3: Side view (fanless) with F-mount adapter 84,6 45,5 active sensor plane Fig.: 5-4: Side view (fanless) with G-mount adapter 5 Technical data...
  • Page 20 Fig.: 5-5: Rear view (with fan) 67,1 Fig.: 5-6: Side view (with fan) with C-mount adapter 5 Technical data...
  • Page 21 94,6 45,5 active sensor plane Fig.: 5-7: Side view (with fan) with F-mount adapter 94,6 45,5 active sensor plane Fig.: 5-8: Side view (fanless) with G-mount adapter 5 Technical data...

  • Page 22: Spectral Response

    Spectral response 5.5.1 Monochrome 1000 Wavelength, nm Fig.: 5-9: Spectral response - monochrome 5 Technical data...
  • Page 23 Appendix The following page contains the Declaration(s) of Conformity. 6 Appendix...
  • Page 24 Address: Mikrotron GmbH Landshuter Str. 20-22 , 85716 Unterschleißheim Series: EoSens Creation 2.0XGE Model: CAMMC2064-352-2, CAMMC2065-352-2, CAMMC2064-352-8, CAMMC2065-352-8 The product complies with the requirements of the following European directives: 2014/30/EU Electromagnetic Compatibility (EMC) Restriction of the use of certain hazardous substances in 2011/65/EU + electrical and electronic equipment (RoHS) (EU) 2017/2102...
  • Page 25 SVS-Vistek GmbH Ferdinand-Porsche-Str. 3 82205 Gilching Phone: +49 8105 3987-60 https://www.svs-vistek.com info@svs-vistek.com © 09-2022 This document and the product(s) described are subject to change without further notice.
