Manual EXO series USB3
exo174, exo183, exo249, exo250, exo250Z, exo252, exo253,
exo253Z, exo255, exo264, exo265, exo267, exo304, exo342,
exo367, exo367TR, exo387, exo387TR, exo540, exo541,
exo4000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SVS-Vistek EXO Series

Summary of Contents for SVS-Vistek EXO Series

  • Page 1 Manual EXO series USB3 exo174, exo183, exo249, exo250, exo250Z, exo252, exo253, exo253Z, exo255, exo264, exo265, exo267, exo304, exo342, exo367, exo367TR, exo387, exo387TR, exo540, exo541, exo4000...

  • Page 2: Table Of Contents

    Content Company information Standards Disclaimer Copyright notice Legal information USA and Canada Europe The EXO series USB3 Vision 4I/O adds light and functionality Lens control 3.3.1 The Tracer adds dynamic lens control 3.3.2 Use liquid lens on C-mount 3.3.3 Use of Canon lenses...
  • Page 3 Feature description Basic features 6.1.1 Gain 6.1.2 Resolution 6.1.3 Offset 6.1.4 Color 6.1.5 Flip image 6.1.6 Binning 6.1.7 Decimation 6.1.8 GenICam 6.1.9 Trigger modes 6.1.10 Shutter modes 6.1.11 Exposure 6.1.12 Exposure speed 6.1.13 Auto exposure 6.1.14 Acquisition and processing time 6.1.15 Bit depth 6.1.16...
  • Page 4 6.3.8 Serial data interfaces 6.3.9 Trigger-edge sensitivity 6.3.10 Debouncing trigger signals 6.3.11 Prescale 6.3.12 Lens control Dimensions C-mount exo387*U3 exo367*U3 exo253*U3, exo304*U3 exo255*U3, exo267*U3 exo183, exo250*, exo252, exo264, exo265 exo4000*U3 exo174*U3, exo249*U3 exo367*U3TR 7.10 exo387*U3TR 7.11 exo342*U3 7.12 exo540*U3, exo541*U3, exo542*U3 Appendix I/O driver circuit schematics IP protection classes...

  • Page 5: Company Information

    The camera in your possession has been produced with great care and has been thoroughly tested. Nonetheless, in case of any complaint, please contact your local SVS-VISTEK distributor. You will find a list of distributors in your area on www.svs-vistek.com...

  • Page 6: Copyright Notice

    Copyright notice Forwarding and duplicating of this document, as well as using or revealing its con- tents are prohibited without written approval. All rights reserved with regard to pat- ent claims or submission of design or utility patent. 1 Company information...

  • Page 7: Legal Information

    Customers, integ- rators and end users of SVS-Vistek products might sell these products and agree to do so at their own risk, as SVS-Vistek will not take any liability for any damage from improper use or sale.

  • Page 8: The Exo Series

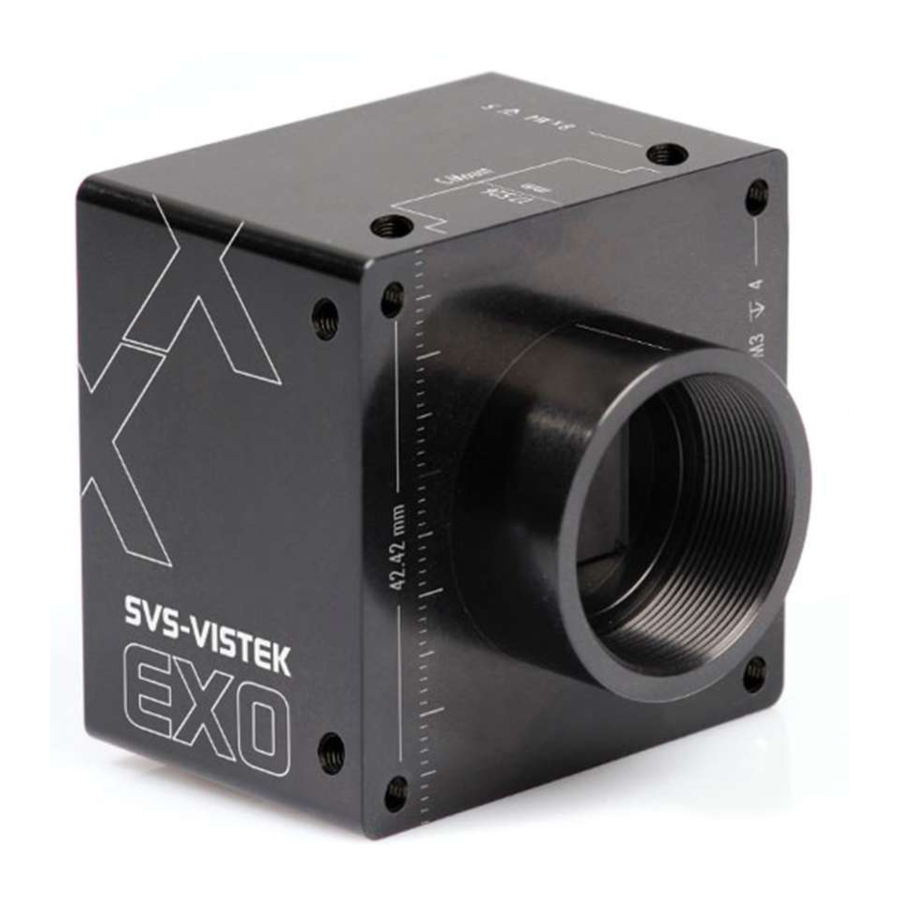

    The EXO series The EXO series is a series of machine vision cameras for the low and mid-range resolutions up to 20 MP. The EXO is available with different industry standard interfaces such as GigE Vision, Camera Link and USB3 Vision.

  • Page 9: O Adds Light And Functionality

    USB3 host chipsets and USB3 hubs as well to high processing load in the host computer. An integrated hardware buffer in the SVS-Vistek camera (240 MB in size) will try to catch and buffer these cases. Burst Mode frame rate is limited to maximum USB speed.

  • Page 10: Lens Control

    Very often varying distances and difficult light conditions make it a hard job to integrate machine vision into an industrial work flow. SVS-Vistek pioneered the use of variable focus lenses into machine vision.

  • Page 11: Use Liquid Lens On C-Mount

    10ms) 3.3.3 Use of Canon lenses We are supporting Canon EF lenses. The SVCam-EF adapter gives you the pos- sibility to mount Canon EF lenses with full control of focus and iris. Canon lenses 3 The EXO series...
  • Page 12 This camera series does have the firmware support already included in the GenICam tree and provides you with Canon lens control in all GenICam based software packages. 3 The EXO series...

  • Page 13: Getting Started

    You can put your support request to us via our support form: https://www.svs-vistek.com/en/support/svs-support-request.php Please fill the form with special attention to camera model, frame grabber model and operating system. Our support team will come back to you.

  • Page 14: Camera Status Led Codes

    INFO When using your own power supply (voltage range 10 -25 V DC), see also Hirose 12-pin layout of the power connector. For power input specifications refer to specifications. Generally external power supply for USB3 Vision, CoaXPress (if PoCXP enabled) or PoE cameras is not needed. Nonetheless, you might want to use a separate power on the Hirose connector to reduce load on the data port.

  • Page 15: Software And Firmware

    C/C# programming libs and interface SVCapture 2.x is a GenICam/XML based software tool provided for free. It is cre- ated to show the capabilities of your SVS-Vistek camera and to show/modify val- ues to your cam. Get control of exposure timing, trigger delay, image correction etc. or control up to 4 LED lights connected to the SVCam directly via "GenICam"...
  • Page 16 3. Choose destination folder and select necessary modules / drivers. The TLxxx modules are the GenTL drivers, necessary as well if you want to use SVS-Vistek driver with third party software. 4. In case of system warnings regarding modification of USB3 drivers or GigE/10GigE filter drivers: The specified performance is possible only with these highly optimized drivers.
  • Page 17 Initialization First launch 1. Connect the camera to your computer. In case of a new USB3 camera driver hardware installation notice will pop up. 2. Start SVCapture. SVCapture will try to discover your camera. 3. Click on the camera being found and you’re connected. Depending on your interface type, with TL Settings you are able to adjust which interface types should be included in the camera discover process.
  • Page 18 INFO If you have installed third-party GenTL drivers (e.g. Euresys CoaXPress or Cam- era Link drivers), they should be selectable as well. This works only if third-party software has been installed before SVCapture. 4. Find and adjust your camera features in the GenICam tree. Click and adjust items by number (1.) or slider (2.) and start grabbing images from the camera.

  • Page 19: Software Development Kit

    C:\Program Files\SVS-VISTEK GmbH\SVCam Kit\SDK INFO Refer to the “Getting started with SDK” manual for first steps in programming your SVS-Vistek camera. This document should be included in the docs section of your installation. The following platforms are supported: X86 (Windows, Linux, MacOS support on request)

  • Page 20: Connectors

    Connectors Cameras from SVS-Vistek feature a combined I/O and power supply connector (Hirose) and a data connector. USB3 Vision The USB3 Vision interface is based on the standard USB 3.1 Gen 1 interface and complies with USB3 Vision standard. The connector type is USB 3.0 micro B. The camera is prepared for screwable ver- sions of the connector.

  • Page 21: Hirose I/O Connector

    Hirose I/O connector The Hirose™ connector provides power, input and output signal access. Max power out is 2 Amperes peak. Fig.: 5-1: I/O Hirose connector layout Inputs and outputs connect via 4I/O-matrix in the GenICam software tree to the appropriate actions. For detailed information about switching lights with the power outputs via GenICam, refer to "LED strobe control"...

  • Page 22: Feature Description

    For information about the features of your specific model, please refer to the specifications area of our website with your exact model. https://www.svs-vistek.com/en/industrial-cameras/svs-svcam-searchresult.php Basic features This section covers basic functionality of area sensor cameras.

  • Page 23: Gain

    6.1.1 Gain Setting gain above 0 dB (default) is a way to boost the signal coming from the sensor. Especially useful for low light conditions. Setting gain amplifies the signal of individual or binned pixels before the ADC. Referring to photography adding gain corresponds to increasing ISO.

  • Page 24: Offset

    The amount of dark current in these areas is used to adjust the offset (see "Off- set" below). For calculating image sizes, the maximum camera resolution is determining max- imum image resolution, refer to the specifications of the camera model). 6.1.3 Offset For physical reasons the output of a sensor will never be zero, even the camera is...

  • Page 25: Color

    6.1.4 Color Color cameras are identical to the monochrome versions. The color pixels are transferred in sequence from the camera, in the same manner as the mono- chrome, but considered as “raw”-format. Fig.: 6-3: CCD with Bayer pattern The camera sensor has a color mosaic filter called “Bayer” filter pattern named after the person who invented it.
  • Page 26 Fig.: 6-4: Original image Fig.: 6-5: Horizontal flip 6 Feature description...

  • Page 27: Binning

    Fig.: 6-6: Vertical flip 6.1.6 Binning Binning provides a way to enhance dynamic range, but at the cost of lower res- olution. Binning combines electron charges from neighboring pixels directly on the chip, before readout. Binning is only used with monochrome CCD Sensors. For reducing resolution on color sensors refer to "Decimation"...

  • Page 28: Decimation

    Horizontal binning Accumulates horizontal pixels. Fig.: 6-8: Horizontal binning 2×2 Binning A combination of horizontal and vertical binning. When DVAL signal is enabled only every third pixel in horizontal direction is grabbed. Fig.: 6-9: 2x2 binning 6.1.7 Decimation For reducing width or height of an image, decimation can be used. Columns or rows can be ignored.
  • Page 29 Fig.: 6-10: Horizontal decimation Fig.: 6-11: Vertical decimation Decimation on color sensors The Bayer pattern color information is preserved with 1/3 horizontal and vertical resolution. The frame readout speed increases approx. by factor 2.5. Fig.: 6-12: Decimation on color sensors 6 Feature description...

  • Page 30: Genicam

    With your SVCam, the GenICam tree does have some hardware related exten- sions, especially in the I/O sector. See the Quick guide install for a short intro- duction into the SVS-Vistek GenICam tree. The GenICam properties are organized in views. The recommended way to view and adjust is by using SVCapture.

  • Page 31: Trigger Modes

    Default input is Input1 for trigger. At the rising edge of the trigger the camera will initiate the exposure. The software provided by SVS-Vistek allows the user to set exposure time e.g. from 60 μs to 60 sec (camera type dependent).
  • Page 32 Exposure time can be changed during operation. No frame is distorted during switching time. If the configuration is saved to the EEPROM, the set exposure time will remain also when power is removed. Details of external trigger mode Diagrams below are equivalent for CCD and CMOS technique. 6 Feature description...
  • Page 33 6 Feature description...

  • Page 34: Shutter Modes

    6.1.10 Shutter modes CCD and CMOS area cameras consist of pixels, ordered in lines and columns. All pixel are exposed to light and then read out to camera electronics. There is a difference of reading out the sensor between global and rolling shutter. Especially flashing and moving objects might need more attention with rolling shutter.
  • Page 35 Nonetheless, the maximum achievable frame rate with applied ROI will be the maximum frame rate of the sensor reading the full sensor area (internal full sensor speed), please refer to relating sensor specs. Artifacts All pixel show same artifacts Deformed image of moving objects Exposure with flash Fig.: 6-13: flash control with rolling shutter Flash strobe on whole exposure time...
  • Page 36 Light control with rolling shutter As being said, not all sensor lines are sensitive to light at the same time. Make sure your light is ON as long any pixel are going to e exposed. An exo183xGE i.e. needs about 62ms of minimal scanning time. An exo183xCL i.e. needs about 120ms of minimal scanning time.
  • Page 37 Rolling shutter limitations Due to the principles of rolling shutter, some standard features of SVS-Vistek cameras are not applicable. External exposure control (expose while trigger signal active) does not make sense with rolling shutter ROI with rolling shutter: With rolling shutter the whole sensor has to be read out –...
  • Page 38 Global Reset Release Mode Global reset release mode is a special mode to operate rolling shutter sensors. All rolling shutter cameras from SVS-VISTEK GmbH can be operated in Global Reset Release mode. Global reset release shows advantages when operating light sources in non-constant light situations.

  • Page 39: Exposure

    Fig.: 6-16: strobe control in global reset mode In Global Reset Mode flash is starting together with exposure, all CMOS lines are sensitive to light. Flash time has to be shorter than exposure time. Exposure time is determined by flash time. INFO Strobe control jitter might be visible in the image as brightness instabilities.

  • Page 40: Auto Exposure

    Limitations exo183 on exposure time In general, the SVS-specific camera design permits frame rates close to this for- mula: Fps_max = 1 / exposure time The exo183 has some specific sensor properties. Most important, due to its sensor design it comes with an additional readout time of about 56 ms. Thus, the maximum exo183 frame rate calculates as follows (as long not restricted by inter- face speed): Fps_max =1 / ( exposure time + 56 ms)
  • Page 41 6 Feature description...

  • Page 42: Acquisition And Processing Time

    6.1.14 Acquisition and processing time The camera has to read the sensor, process the data to a valid image and transfer this to the host computer. Some of these tasks are done in parallel. This implies the data transfer does not end immediately after end of exposure, as the image has to be processed and transferred after exposure.

  • Page 43: Bit Depth

    6.1.15 Bit depth Values of brightness are internally represented by numbers. The number of bits for brightness representation is limiting the number of color values that can be represented. Bit depth defines the max- imum unique colors or gray levels in an image. bit depth No of gray values = 2 All SVCam models support 8-bit format.
  • Page 44 NOTICE Unpacking has to be done manually, this is not a GenTL function. Thus, image acquisition in packed formats won’t be supported by most 3 party software products. 6 Feature description...

  • Page 45: Roi / Aoi

    6.1.16 ROI / AOI In partial scan mode or Area-Of-Interest (AOI) mode (or Region-Of-Interest (ROI) mode) only a certain region of the sensor will be read. Fig.: 6-18: AOI on area sensor Selecting an AOI will reduce the number of horizontal lines being read. This will reduce the amount of data to be transferred, thus increasing the maximum speed in terms of frames per second.
  • Page 46 imaging devices. This opens the door to new applications in industrial machine vision applications and beyond. Prominent examples include the analysis of the orientation of carbon fibers, the visualization of tensions in glass caused by stress induced birefringence, the reduction of reflections and glare or simply the enhancement of contrast between materials that are difficult to tell apart with con- ventional imaging modalities.
  • Page 47 Fig.: 6-19: Light polarization (A) Linear polarization at 125° and 2D representation of the electric field vec- tor for a complete cycle. (B) Circular polarization and 2D representation of the trace of the electric field vector over a complete cycle describes a circle. (C) Light from multiple sources, as obtained from the sun or incandescent light bulbs, consists of multiple wave trains.
  • Page 48 Fig.: 6-20: Polarization filters (A) A grid polarizer blocks the polarization component that is parallel to the grid array. Only light perpendicular to the grid can pass through. (B) Grid polarizers with different grid orientations result in linear polarized light with orientations perpendicular to the grid orientation, respectively.

  • Page 49: Camera Features

    Conveniently, the polarization angle and the degree of linear polarization are easily computed from the Stokes parameters Examination of these values provides an imaging contrast enhancement in a mul- titude of applications compared to standard camera imaging, as shown in the fol- lowing application examples.

  • Page 50: Shading Correction

    White balance gets much more difficult. Contrast is lower. INFO SVS-VISTEK recommends IR cut filter for high demands on sharpness with monochrome or color sensors. Spectral impact of IR cut filters IR cut filter do influence the spectral sensitivity of the sensor. The spectral graph below shows the wavelength relative impact of the SVS-VISTEK standard filter.
  • Page 51 Original and shading corrected image This shading can be caused by non-uniform illumination, non-uniform camera sensitivity, vignetting of the lens, or even dirt and dust on glass surfaces (lens). Shading correction is a procedure to create a flatfield image out of a non-uniform image regardless of the reasons of the non-uniformity.
  • Page 52 NOTICE Shading correction is possible with certain models only. See camera specs whether your model does support this. In case your camera is not supporting, the assistant will not be selectable. First, shading reference images have to be taken with shading correction disabled (use 16 images minimum).

  • Page 53: Defect Pixel Correction

    3. See shading in the preview 4. Generate the shading map 5. Save map to disk. This file can be used in programmed environments via SDK as well. 6. Upload it to the camera and see the result. If lighting did not change from start of procedure, you should see a uniform image with enabled shading con- trol.
  • Page 54 The amount of hot pixels is proportional to exposure time and temperature of the sensor. By default, all known defect pixels or clusters are corrected by SVS-VISTEK as a factory default. Under challenging conditions or high temperature environments defect pixel beha- viour might change.
  • Page 55 Procedure of pixel correction SVCapture is the tool to generate pixel correction maps. The pixel correction assistant provides everything to create, load, enable and restore defect pixel cre- ation maps. Defect pixel correction is possible with certain models only. See camera specs whether your model does support this.
  • Page 56 1. Load black images (16 images minimum) into generator 2. Generate map 3. Save map to file for later usage 4. Upload the map to the camera. Make sure pixel correction is activated. 6 Feature description...

  • Page 57: Look-Up Table

    6.2.4 Look-up table The look-up table feature (LUT) lets the user define certain values to every bit value that comes from the ADC. To visualize a LUT a curve diagram can be used, similar to the diagrams used in photo editing software.
  • Page 58 Historically gamma correction was used to correct the illumination behavior of CRT displays, by compensating brightness-to-voltage with a gamma value between 1,8 up to 2,55. The gamma algorithms for correction can simplify resolution shifting as shown seen below. Input & output signal range from 0 to 1 Gamma Output-signal = Input-signal Fig.: 6-26: Several gamma curves comparable to a LUT...

  • Page 59: Roi / Aoi

    6.2.5 ROI / AOI In partial scan mode or Area-Of-Interest (AOI) mode (or Region-Of-Interest (ROI) mode) only a certain region of the sensor will be read. Fig.: 6-27: AOI on area sensor Selecting an AOI will reduce the number of horizontal lines being read. This will reduce the amount of data to be transferred, thus increasing the maximum speed in terms of frames per second.

  • Page 60: Basic Capture Modes

    6.2.6 Basic capture modes The camera has 2 basic operation modes. Free run (timed) run: The camera will expose and deliver images on a fixed schedule. Triggered: The camera will wait for an external signal and start exposure after receiving the external trigger signal.

  • Page 61: Micro Four Thirds Lenses

    Tracer series models support special mount type. For matching lenses visit http://www.four-thirds.org/en/microft/lens_chart.html or call your local SVS- VISTEK distributor. INFO For SVS-Vistek MFT cameras, you’ll find the controls in the GenICam tree as soon as the lens is mounted on the camera. 6 Feature description...

  • Page 62: Read-Out Control

    Fig.: 6-31: Micro Four Thirds in close view Mounting lenses INFO There is a difference in the back focus distance between „Four Thirds“-lenses and „Micro Four Thirds“ lenses. Your camera is equipped with a “Micro Four Thirds” connector. 1. Mount a Micro Four Thirds lens on the camera before powering up the camera.

  • Page 63: Temperature Sensor

    Fig.: 6-32: Illustration of physical data stream in time 6.2.9 Temperature sensor A temperature sensor is installed on the main board of the camera. To avoid over- heating, the temperature is constantly monitored and read. Besides software mon- itoring, the camera indicates high temperature by a red flashing LED (see flashing LED codes).
  • Page 64 Load a user set With UserSetSelector a user set can be selected. Select the desired user set and press UserSetLoad (command) twice to load the user set. The following example loads user set 2. Save user sets Select the user set to be saved in the UserSetSelector and save it with the User- SetSave command.

  • Page 65: Shading Correction

    6.2.13 Shading correction The interactions between objects, illumination, and the camera lens might lead to a non-uniform flatfield in brightness. Shading describes the non-uniformity of brightness from one edge to the other or center towards edge(s). Original and shading corrected image This shading can be caused by non-uniform illumination, non-uniform camera sensitivity, vignetting of the lens, or even dirt and dust on glass surfaces (lens).
  • Page 66 process takes any image with any (!) illumination and creates a shading map out of it. This shading map afterwards will be uploaded into the camera. NOTICE Shading correction is possible with certain models only. See camera specs whether your model does support this. In case your camera is not supporting, the assistant will not be selectable.
  • Page 67 2. With SVCapture load these reference images. 3. See shading in the preview 4. Generate the shading map 5. Save map to disk. This file can be used in programmed environments via SDK as well. 6. Upload it to the camera and see the result. If lighting did not change from start of procedure, you should see a uniform image with enabled shading con- trol.

  • Page 68: Defect Pixel Correction

    The amount of hot pixels is proportional to exposure time and temperature of the sensor. By default, all known defect pixels or clusters are corrected by SVS-VISTEK as a factory default. Under challenging conditions or high temperature environments defect pixel beha- viour might change.
  • Page 69 A factory created defect map (SVS map), defying known defects, is stored in the camera. A custom defect map can be created by the user. A simple *.txt file with coordinates must be created. The user must locate the pixel defects manu- ally.
  • Page 70 For easy image processing, it is recommended to have pixel correction activ- ated Pixel correction maps can be saved and loaded The std factory map can be selected any time Generate your own custom map Select your own defect pixel map The procedure to create a std map is pretty straight forward.

  • Page 71: Micro Four Thirds Lenses

    Tracer series models support special mount type. For matching lenses visit http://www.four-thirds.org/en/microft/lens_chart.html or call your local SVS- VISTEK distributor. INFO For SVS-Vistek MFT cameras, you’ll find the controls in the GenICam tree as soon as the lens is mounted on the camera. 6 Feature description...
  • Page 72 Fig.: 6-35: Micro Four Thirds in close view Mounting lenses INFO There is a difference in the back focus distance between „Four Thirds“-lenses and „Micro Four Thirds“ lenses. Your camera is equipped with a “Micro Four Thirds” connector. 1. Mount a Micro Four Thirds lens on the camera before powering up the camera.

  • Page 73: I/O Features

    With your SVCam, the GenICam tree does have some hardware related exten- sions, especially in the I/O sector. See the Quick guide install for a short intro- duction into the SVS-Vistek GenICam tree. The GenICam properties are organized in views. The recommended way to view and adjust is by using SVCapture.

  • Page 74: Assigning I/O Lines - Iomux

    6.3.2 Assigning I/O Lines – IOMUX The IOMUX is best described as a switch matrix. It connects inputs, and outputs with the various functions of SVCam I/O. It also allows combining inputs with Boolean arguments. Fig.: 6-36: "IN0" connected to "debouncer" Now the debounced signal can be taken from Debouncer (line 8) in the next mod- ule as source.
  • Page 75 LineSelector Translation Line20 Pulse2 Line21 Pulse3 Line22 Uart2 In The input and output lines for Strobe and Trigger impulses can be arbitrarily assigned to actual data lines. Individual assignments can be stored persistently to the EPROM. Default setting can be restored from within the Camera. INFO Refer to pin-out in input / output connectors when physically wiring.
  • Page 76 Input vector to switch matrix Name Description io_in(0) trigger input 0 – 24 Volt / RS-232 / opto * io_in(1) trigger input 0 – 24 Volt / RS-232 / opto * io_in(2) trigger input 0 – 24 Volt / RS-232 / opto * io_in(3) trigger input 0 –...
  • Page 77 Output vector from switch matrix Name / register Description io_out(0) output open drain io_out(1) output open drain io_out(2) output open drain * io_out(3) output open drain * io_txd output, when debug='0' rxd_to_uart1 output (uart_in) trigger output sequenzer_hw_trigger input to module iomux_sequenzer_0 debounce input input to module iomux_dfilter_0 prescale input...
  • Page 78 Example of an IOMUX configuration Fig.: 6-37: Example of an IOMUX configuration The trigger signal comes in on line 0 Debounce it. connect line 0 to 8: 1000000000000000000000000 signal appears again on line 15 – debouncer out Use the prescaler to act only on every second pulse. connect line 16 to 9.
  • Page 79 Inverter The inverter enabled at a certain line provides the reverse signal to or from a module. Set to “1” With set to “1” enabled in a certain line, this line will provide a high signal no mat- ter what signal was connected to the line before. Set to “1”...
  • Page 80 6.3.3 During Pulse Width Modulation (PWM), a duty cycle is modulated by a fixed fre- quency square wave. This describes the ratio of ON to OFF as duty factor or duty ratio. Why PWM? Pulse width modulation is an extremely efficient way (in terms of power dis- sipation) to provide/regulate electrical power to consumers as long as they do not need uninterrupted supply (such as diodes or LEDs).
  • Page 81 Fig.: 6-38: PWM intensity Examples of PWMs The integrals over both periods are equal. An equal amount of Photons will be emitted. The intensity of light is the same. The periods are equal in length. 6 Feature description...
  • Page 82 Fig.: 6-39: Example: 25% PWM load Fig.: 6-40: Example: 50% PWM load 6 Feature description...
  • Page 83 Fig.: 6-41: Example: 75% PWM load The PWM module Fig.: 6-42: The PWM module 6 Feature description...

  • Page 84: Led Strobe Control

    6.3.4 LED strobe control The SVCam 4I/O concept contains an integrated strobe controller. Its controls are integrated into the GenICam tree. With LED lights attached to the outputs, this enables the user to control the light without external devices. Being controlled via GenICam, any GenICam-compliant 3 party software is able to control the light as well.
  • Page 85 Total power ( 2,75 W Power at LEDs ( 3,25 W Power loss at resistor ( Table: 6-5: Example Calculation “No Flash” (CW Mode) LEDs in flash mode Most LED lights can cope with currents higher than specs. This gives you higher light output when light is ON.

  • Page 86: Sequencer

    6.3.5 Sequencer The sequencer is used when different exposure settings and illuminations are needed in a row. Values to set Description Sequencer interval Duration of the interval Exposure start Exposure delay after interval start Exposure stop Exposure stop related to interval Start Strobe start Strobe delay after interval start Strobe stop...
  • Page 87 I/O matrix 4 images to be taken (RGBW) result in 4 sequences RGB PWM change with different intensities (duty cycle) taking care for dif- ferences in spectral response of the camera sensor PWM change 0-2 is connected to out 0-2 Seq pulse A is driving the exposure (trigger) Seq pulse B is driving the strobe Seq pulse B in WHITE sequence is reduced down to 33% as light intensities...
  • Page 88 Values to set in GenICam prop- Interval 0 Interval 1 Interval 2 Interval 3 erties (RED) (GREEN) (BLUE) (WHITE) Sequencer Interval 66666667 tic 66666667 tic 66666667 tic 66666667 tic (1000 ms) (1000 ms) (1000 ms) (1000 ms) 0 tic 0 tic 6666667 tic 0 tic Seq pulse A start...
  • Page 89 Sequencer setup with SVCapture Starting with SVCapture 2.5.2, there is a sequencer assistant, providing easy setup of the sequencer settings. The assistant will help you to setup timings for start exposure and lighting and so on. The PWMs are connected to the physical outputs (e.g.
  • Page 90 Feature name Feature value Acquisition Control - Continuous Acquisition Mode Acquisition Control – Trigger Selector - Trig- ger Mode Acquisition Control – Line 1 Trigger Selector - Trig- ger Source Acquisition Control – Trigger Selector – Trigger Width Exposure Mode Enhanced IO –...

  • Page 91: Optical Input

    If your camera trigger is in the ms range or slower, we recommend to use the optical input. An optical input needs some current for operation. The SVS-Vistek optical input is specified to 5-24 V, 8 mA. Fig.: 6-45: Optical input The optocoupler galvanically separates electrical circuits by emitting light on one side and interpreting light in the other.
  • Page 92 Do it in the GenICam tree The logic function always combines the values of Digital IO InputA/LogicA and InputB/LogicB. In case of the Trigger enable logic function, LogicB is the trigger enable signal and will be combined with LogicA value. NAND XNOR A B Y...

  • Page 93: Serial Data Interfaces

    6.3.8 Serial data interfaces (ANSI EIA/) TIA-232-F RS-232 and RS-422 (from EIA, read as Radio Sector or commonly as Recom- mended Standard) are technical standards to specify electrical characteristics of digital signaling circuits. Serial connection might be used to control SVCams. These signals are used to send low-power data signals to control exposure, light or lenses (MFT).

  • Page 94: Trigger-Edge Sensitivity

    6.3.9 Trigger-edge sensitivity Trigger-edge sensitivity is implemented by a “Schmitt trigger”. Instead of trig- gering to a certain value, the Schmitt trigger provides a threshold. Fig.: 6-47: Schmitt trigger noise suppression 6 Feature description...

  • Page 95: Debouncing Trigger Signals

    6.3.10 Debouncing trigger signals Bounces or glitches caused by a switch can be avoided by software within the SVCam. Fig.: 6-48: Bounces or glitches caused by a switch Therefore the signal will not be accepted until it lasts at least a certain time. >...
  • Page 96 Input 1 debounce time here is about 1ms. The debouncer module Fig.: 6-50: The debouncer module 6 Feature description...

  • Page 97: Prescale

    6.3.11 Prescale The Prescale function can be used for masking off input pulses by applying a divisor with a 4-bit word, resulting in 16 unique settings. Reducing count of interpreted trigger signal Use the prescale function to ignore a certain count of trigger signals. Divide the amount of trigger signals by setting a divisor.

  • Page 98: Lens Control

    Various SVCam models are supporting adjustable lenses. Focus and iris of the lens can be controlled from within the camera GenICam tree. A special Y-cable might be required, contact sales@svs-vistek.com. The following variable lens types are currently supported: MFT lenses (in Tracer series) have full support of lens focus, iris and zoom.

  • Page 99: Dimensions

    Dimensions INFO All length units in mm. Find the technical drawings in the web download area at https://www.svs-vistek.com/en/support/svs-support-download-center.php CAD step files available with valid login at SVS-VISTEK.com C-mount C-mount back focus distance from sensor to lens is 17.526 mm. The camera is fit- ted with a standard C-mount threading.

  • Page 100: Exo387*U3

    exo387*U3 Fig.: 7-2: exo387*U3 front view Fig.: 7-3: exo387*U3 back view 7 Dimensions...
  • Page 101 Fig.: 7-4: exo387*U3 side view Fig.: 7-5: exo387*U3 top view Fig.: 7-6: exo387*U3 bottom view 7 Dimensions...

  • Page 102: Exo367*U3

    Fig.: 7-7: exo387*U3 cross section exo367*U3 Fig.: 7-8: exo367*U3 front view 7 Dimensions...
  • Page 103 Fig.: 7-9: exo367*U3 back view Fig.: 7-10: exo367*U3 side view Fig.: 7-11: exo367*U3 top view 7 Dimensions...
  • Page 104 Fig.: 7-12: exo367*U3 bottom view Fig.: 7-13: exo367*U3 cross section 7 Dimensions...

  • Page 105: Exo253*U3, Exo304*U3

    exo253*U3, exo304*U3 Fig.: 7-14: exo253*U3, exo304*U3 front view Fig.: 7-15: exo253*U3, exo304*U3 back view 7 Dimensions...
  • Page 106 Fig.: 7-16: exo253*U3, exo304*U3 left side view Fig.: 7-17: exo253*U3, exo304*U3 right side view 7 Dimensions...
  • Page 107 Fig.: 7-18: exo253*U3, exo304*U3 top view Fig.: 7-19: exo253*U3, exo304*U3 bottom view 7 Dimensions...

  • Page 108: Exo255*U3, Exo267*U3

    Fig.: 7-20: exo253*U3, exo304*U3 isometric section exo255*U3, exo267*U3 Fig.: 7-21: exo253*U3, exo304*U3 front view 7 Dimensions...
  • Page 109 Fig.: 7-22: exo253*U3, exo304*U3 back view Fig.: 7-23: exo253*U3, exo304*U3 left side view 7 Dimensions...
  • Page 110 Fig.: 7-24: exo253*U3, exo304*U3 right side view Fig.: 7-25: exo253*U3, exo304*U3 top view 7 Dimensions...

  • Page 111: Exo183, Exo250*, Exo252, Exo264, Exo265

    Fig.: 7-26: exo253*U3, exo304*U3 bottom view exo183, exo250*, exo252, exo264, exo265 Fig.: 7-27: exo183, exo250*, exo252, exo264, exo265 front view 7 Dimensions...
  • Page 112 Fig.: 7-28: exo183, exo250*, exo252, exo264, exo265 back view Fig.: 7-29: exo183, exo250*, exo252, exo264, exo265 left side view 7 Dimensions...
  • Page 113 Fig.: 7-30: exo183, exo250*, exo252, exo264, exo265 right side view Fig.: 7-31: exo183, exo250*, exo252, exo264, exo265 top view 7 Dimensions...

  • Page 114: Exo4000*U3

    Fig.: 7-32: exo183, exo250*, exo252, exo264, exo265 bottom view Fig.: 7-33: exo183, exo250*, exo252, exo264, exo265 cross section exo4000*U3 Fig.: 7-34: exo4000*U3 front view 7 Dimensions...
  • Page 115 Fig.: 7-35: exo4000*U3 back view Fig.: 7-36: exo4000*U3 left side view 7 Dimensions...
  • Page 116 Fig.: 7-37: exo4000*U3 top view Fig.: 7-38: exo4000*U3 bottom view Fig.: 7-39: exo4000*U3 cross section 7 Dimensions...

  • Page 117: Exo174*U3, Exo249*U3

    exo174*U3, exo249*U3 Fig.: 7-40: exo174*U3, exo249*U3 front view Fig.: 7-41: exo174*U3, exo249*U3 back view 7 Dimensions...
  • Page 118 Fig.: 7-42: exo174*U3, exo249*U3 left side view Fig.: 7-43: exo174*U3, exo249*U3 right side view 7 Dimensions...
  • Page 119 Fig.: 7-44: exo174*U3, exo249*U3 top view Fig.: 7-45: exo174*U3, exo249*U3 bottom view Fig.: 7-46: exo174*U3, exo249*U3 cross section 7 Dimensions...

  • Page 120: Exo367*U3Tr

    exo367*U3TR Fig.: 7-47: exo367*U3TR front view Fig.: 7-48: exo367*U3TR back view 7 Dimensions...
  • Page 121 Fig.: 7-49: exo367*U3TR side view Fig.: 7-50: exo367*U3TR top view 7 Dimensions...
  • Page 122 Fig.: 7-51: exo367*U3TR bottom view Fig.: 7-52: exo367*U3TR cross section 7 Dimensions...

  • Page 123: Exo387*U3Tr

    7.10 exo387*U3TR Fig.: 7-53: exo387*U3TR front view Fig.: 7-54: exo387*U3TR back view 7 Dimensions...
  • Page 124 Fig.: 7-55: exo387*U3TR side view Fig.: 7-56: exo387*U3TR top view 7 Dimensions...
  • Page 125 Fig.: 7-57: exo387*U3TR bottom view Fig.: 7-58: exo387*U3TR cross section 7 Dimensions...

  • Page 126: Exo342*U3

    7.11 exo342*U3 Fig.: 7-59: exo342*U3 front view Fig.: 7-60: exo342*U3 back view 7 Dimensions...
  • Page 127 Fig.: 7-61: exo342*U3 side view Fig.: 7-62: exo342*U3 top view Fig.: 7-63: exo342*U3 bottom view 7 Dimensions...

  • Page 128: Exo540*U3, Exo541*U3, Exo542*U3

    Fig.: 7-64: exo342*U3 cross section 7.12 exo540*U3, exo541*U3, exo542*U3 Fig.: 7-65: exo540*U3, exo541*U3, exo542*U3 front view 7 Dimensions...
  • Page 129 Fig.: 7-66: exo540*U3, exo541*U3, exo542*U3 back view Fig.: 7-67: exo540*U3, exo541*U3, exo542*U3 side view 7 Dimensions...
  • Page 130 Fig.: 7-68: exo540*U3, exo541*U3, exo542*U3 top view Fig.: 7-69: exo540*U3, exo541*U3, exo542*U3 bottom view Fig.: 7-70: exo540*U3, exo541*U3, exo542*U3 cross section 7 Dimensions...

  • Page 131: Appendix

    Appendix I/O driver circuit schematics Camera power supply and power supply for PWM out is 25V max. Power for PWM out has to be supplied via Hirose connector. The open drain outputs are ledged to ground, that means you connect your LED on the positive side to your (light-)power source, the negative LED connector goes to the camera out.

  • Page 132: Ip Protection Classes

    IP protection classes 8 Appendix...
  • Page 133 IP Protection Classes is a classification system regarding the kind of environment influences which might do harm to your product. 8 Appendix...
  • Page 134 First Second Digit Digit Brief description Definition Not protected Protected against A probing object, a ball of 50mm in dia- solid foreign meter, must not enter or penetrate the objects, enclosure 50 mm and larger Protected against A probing object, a ball of 12.5mm in solid foreign diameter, must not enter or penetrate objects, 12.5 mm...
  • Page 135 First Second Digit Digit Brief description Definition Protected against Powerful water jets directed against powerful water the enclosure from any angle must jets not have any harmful effect Water must not enter the equipment Protected against in amounts that can have a harmful the effect of brief effect if the enclosure is briefly sub- submersion in...
  • Page 136 SVS-VISTEK GmbH Mühlbachstr. 20 82229 Seefeld Phone: +49 (0) 81 52 9985-0 https://www.svs-vistek.com info@svs-vistek.com © March-2021...

This manual is also suitable for:

Exo174Exo183Exo249Exo250Exo250zExo252 ... Show all

Table of Contents
