Sibata DM-100S Operation Manual

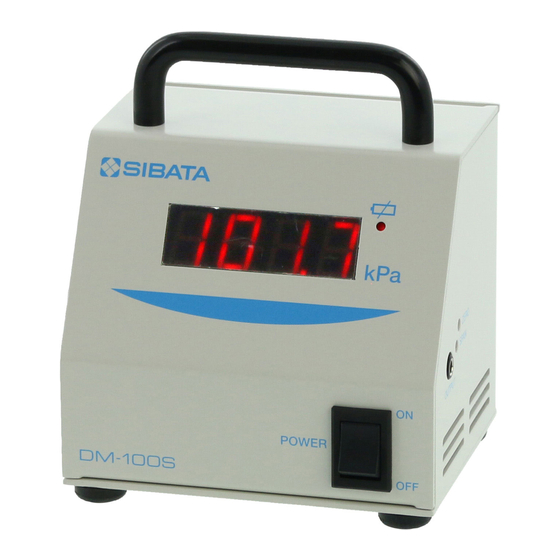

DM-100S Digital Manometer
This product is a desktop manometer that measures absolute pressure using a semiconductor sensor. Designed for use
with noncorrosive gases, the small and easy-to-handle design provides excellent repeatability. It can be powered by
either batteries or an AC adapter (optional).
Be sure to carefully read this operation manual before using the product. After reading this manual, keep it stored
together with the warranty in an easily accessible location.
■
Product Contents (Verify the contents before use.)
□
DM-100S main unit ···· 1
● If any of the contents are damaged or missing, contact the distributor where you purchased the product.
■

Safety Precautions

The precautionary information in this operation manual is provided to ensure that the product is used safely, to prevent
injury to yourself or others, and to prevent property damage. All of the precautionary information is important for ensuring
safety. Therefore, be sure to read and understand the information thoroughly before using the product and observe the
precautionary information during use. The protective functions built into this product might fail if it is not used as specified
by Sibata. This operation manual uses various graphical symbols to indicate warnings and instructions. The following
describes the meaning of each graphical symbol.
Displaying
Warnings
Examples of
Graphical
Symbols
This product is not explosion proof, so do not use it near combustible or flammable materials. Doing so could
cause an explosion or fire.
This product is designed for indoor use. Do not operate the product in an environment where it is exposed to
wind and rain. Doing so could cause product failure.
Do not install this product in locations subject to splashing with water, high humidity or dust levels, or
locations that are not well ventilated. Doing so could cause a fire, short circuit, or product failure.
Do not subject the product to strong impacts or drops. Doing so could cause a product failure or accident.
Never attempt to disassemble or modify the product. Doing so could cause a product failure or accident.
Do not touch the AC adapter cord (optional) or outlet with wet hands. Doing so could result in an electric shock.
Only connect the specified AC adapter.
If this product starts to emit smoke, becomes abnormally hot, or makes a strange noise, immediately stop
using the product, switch OFF the power, and remove the batteries or unplug the AC adapter. Then request
product repair service.
If AC adapter damage, a broken circuit, or a plug connection failure is noticed, immediately stop using the AC
adapter and purchase a new one.
Have any product failures repaired promptly. Never operate the product with an unrepaired failure or attempt
to repair it yourself. Doing so could result in an unforeseen accident.
Be sure to remove the batteries and disconnect the AC adapter before storing the product for extended
periods of disuse.
□
AA alkaline batteries (for checking functionality) ····· 2
Indicates a potentially hazardous situation which, if not avoided, could result
in serious injury or death.
Indicates a potentially hazardous situation which, if not avoided, may result
in injury or equipment damage.
The symbol indicates prohibited actions. Specific details are indicated
near the symbol.
The symbol indicates actions that must be performed. Specific details are
indicated near the symbol.
CODE 071060-1002
Operation Manual
□
Warranty ··· 1
1
