Sibata LV-20N Operation Manual

1. Overview

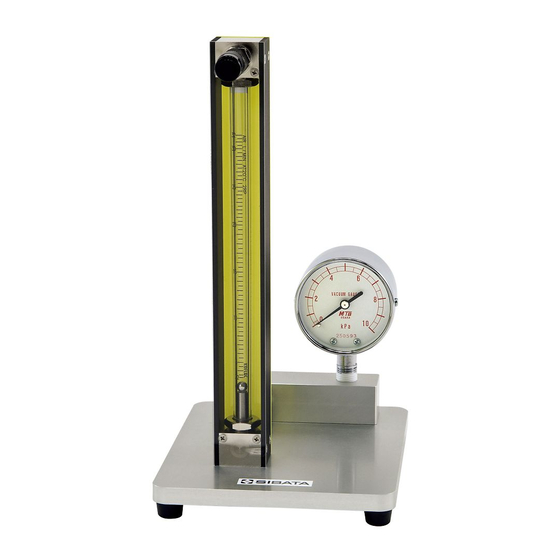

The LV-20N/LV-30N is a float type (area type) suction pump flow meter. The suction flowrate can be
adjusted using the needle valve provided with the instrument. A pressure gauge is also provided,
which allows the suction pressure to be measured. This is ideal for measuring and adjusting the
flowrate of suction pumps.

2. Specifications

Item code
Model
Flowrate measurement range
Pressure measurement range
Tube nozzle diameter
Dimensions
Weight
Ambient temperature and
humidity

3. Composition

(1)
(2)
(3)
(4)
(1) Needle valve
(for flowrate adjustment)
(2) Taper tube
(3) Float (Flowrate reading position:
center of the ball)
(4) Base
(5) Pressure Gauge
Suction Pump Flow Meter
LV-20N / LV-30N
OPERATION MANUAL
080120-0211
LV-20N
3.2 L/min to 32 L/min
Air at 20 °C and 1 atmospheric pressure standard;
flowrate reading position: center of the ball
(Tube used: internal diameter of φ10 mm to φ11 mm)
140(W) × 175(D) × 270(H) mm (not including protruding parts)
1.56 kg
0 °C to 40 °C; 10 % rh to 90 % rh (no condensation)
(5)
(6) Tube connection nozzle, inlet: External diameter φ12 mm
(Tube used: internal diameter of φ10 mm to φ11 mm)
Note: Connect the tubing to equipment for sampling
(7) Tube connection nozzle, outlet: External diameter φ12 mm
(Tube used: internal diameter of φ10 mm to φ11 mm)
Note: Connect the tubing to the suction port on the
-0.5 kPa to -10 kPa
External diameter: φ12 mm
(7)
OUTLET
dust etc.
suction pump.
CODE 080120-0211
080120-0311
080120-0311
LV-30N
4.2 L/min to 42 L/min
1.73 kg
(6)
INLET
